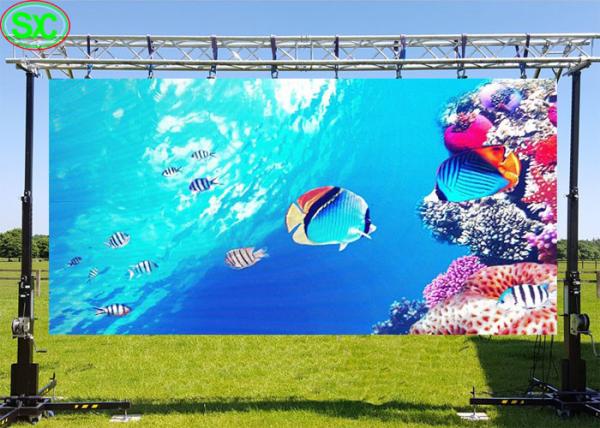

    Die-Casting Aluminum Screen Customizable Full Color Outdoor LED P3.91 IP43 Advertising Screen SMD2121

    Ask Lasest Price
    Brand Name : SCX
    Model Number : SCX-P3.91
    Certification : FCC,UL,CE,ISO
    Price : 999-1111USD/sqm
    Payment Terms : Western Union, T/T
    Supply Ability : 5000sqm/month
    Delivery Time : 12-15 working days.
    • Product Details
    • Company Profile

    Die-Casting Aluminum Screen Customizable Full Color Outdoor LED P3.91 IP43 Advertising Screen SMD2121

    Chinese P3.91Transparent LED Scree HD Full Color Outdoor led Display Advertising Screen Panel


    Parameter description:

    Resolution/mm3.91
    Pixel configuration1R1G1B
    Pixel density/pixels/m²32768dots/square meter
    Module size/mm1000x500
    View distance4-50m
    Single point brightness adjustCan be added
    Single point color adjustCan be added
    White balance brightness2500cd/square meter
    Color temperature6500K-9500K
    Horizontal view angle120(degrees)
    Vertical view angle60(degrees)
    Signal Process bit10 or 16bit
    Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distancesInternet cable:100m, multimembrane:500m, monofilm:2km
    Driving modeConstant driving current
    Scanning mode1/8
    Frame rate60Hz
    Refresh frequency3840Hz
    Control modeComputer synchronous
    Brightness adjusted rangeManual, automatic operation, stepless continuous adjusted
    255 steps. No grey loss
    Out of control point<1/10000
    Working hours≥72hours
    Mean Time Between Failure>5000hours
    Life time100000hours
    Life-all-white(brightness halving)50000hours
    Environment temperature rangeOperating temperature range: -20-45℃
    Maximum power:/square meter<950W
    Average power:/square meter<350W
    Self-check technologyLED spot self-check, communications check, power check,
    temperature monitor(need customization)
    Remote monitoringRemote supervision and control, record potential fault,
    send out warning signs to the operators.(need customization)
    Software environmentWindowsNT,Windows1999,WindowsXP
    Luminous point width between centresDeviation<3%
    Brightness uniformity<10%
    Color uniformity(chromaticity coordinate)±0.003
    Power supply requestAC85-264V(50Hz-60Hz)
    Contrast(1000:1)
    System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working)working:10-95%
    Humidity(storing)storing:10-95%


    Why choose us?

    1.Rich experience for more than 10 years;

    2.Strict control quality and supervision;

    3.Good price for high quality products;

    4.Quick delivery time-after receiving your down payment we will make the delivery right soon;

    5.Satisfied after sales service-we will reply you all the questions in 3 hours;

    6.We will provide you the free technical supply;

    Description:

    * High Degree of Visibility
    80% transparent see-through, so it is convenient for people inside and outside to look-through. The integrated LED lamps are very tiny and almost invisible from outside of the building.


    * Compact Design and Light Weight
    almost suitable for any glass wall building.The weight is only 18kg/sqm and minimizes the load to the glass wall.


    * Ease of the Installation and Maintenance
    No need to change any building structure. The modules can be stuck to the back of the glass wall by the special glue which presented by us. It needs only 10 second to install one module. Should any maintenance occurs, it only requires to do it at the indoor.


    * Saving Money in Decoration for the Architecture
    Since the LED glass wall makes the vivid decoration and advertising, it saves other lights to lighting up the building.


    * Wide Application
    The Glass Wall LED Screen can be applied wherever the glass wall existed such as commercial building,landmark,architecture, art center,shopping mall, super market, shain stores etc.

    Our cases:

    Die-Casting Aluminum Screen Customizable Full Color Outdoor LED P3.91 IP43 Advertising Screen SMD2121


    Die-Casting Aluminum Screen Customizable Full Color Outdoor LED P3.91 IP43 Advertising Screen SMD2121
