HD 1/8 scanning rgb led screen wall P3.91 , Outdoor SMD LED Display
Billboard
Features:
1. Aluminum alloy structure, good heat dissipation performance,
with heat dissipation holes, high hardness
2. The cabinet is small in size, light in weight, easy to carry and
install
3. High resolution, 65410 dots/㎡, good color uniformity
4. Each panel has two positioning rods, supporting hoisting and
rental activities
Product Description:
1. High color contrast and consistency, high brightness ensures
good display effect.
2. The cabinet adopts CNC technology, and the flatness between
cabinet units is <0.2mm.
3. Energy-saving and noiseless power supply, good heat dissipation
performance, ensure good stability and service life.
4. Constant current drive, brightness attenuation <5%/year.
Shenzhen Saikexing Technology Co., Ltd. is a high-tech company
specializing in the production and sales of LED display screens,
digital signage and other advertising multimedia products research
and development, production and sales, committed to providing
electronic information engineering solutions and the development
and application of various information release systems. At present,
the company's LED large-screen products are widely used in outdoor
advertising media, cultural and entertainment activities, stadiums,
stage rentals, etc. With the advantages of the full-color LED
display system, from design, production, installation, maintenance,
a full range of integrated solutions are adopted to effectively
reduce customer costs, thereby creating higher value for customers.
Specifications :
| outdoor DIP P10 |
| Resolution/mm | 3.91 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 65410/m² |
| Module resolution | 64x64 |
| Module size/mm | 250x250MM |
| View distance | 14-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >7500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/8 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

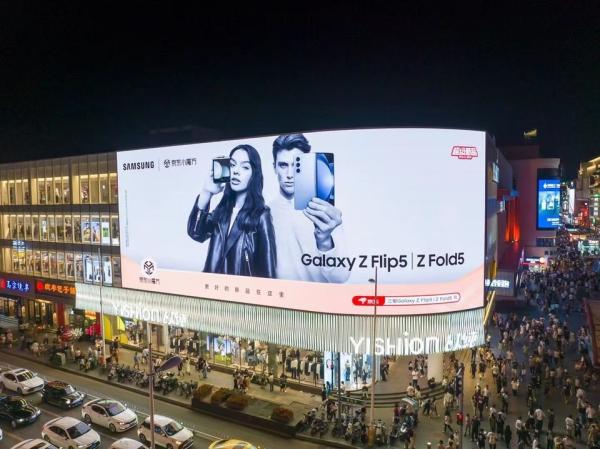

Applications
Outdoor Full Color LED Display Are Very Popular In Advertising
Field.
This Type Screen Are Popular Used Outdoor Shopping Center,Outdoor
Building,Foodball Field,crossroad,
highway,Concert,airport etc;
Shipping Detail:
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
FAQ:
Q1,How to arrange payment?
Our payment terms in usually is T/T payment,for sample and small
order,Western union,Paypal or Moneygram also be acceptable
Q2,What is our warranty?
Our warranty from 5year to 1year basis on different type led
screen,In usually every screen we will ready more extra led screen
moduless as spare modules,if some modules happen fails,you can
replace the fail modules by our spare modules,When all the spare
modules use out,You can send back these modules to us for
repair,and we will send to you after repair and testing&aging
well
Q3,How to be our distributor?
To be our distributor,We can share our profit together with you in
every year,Also we can send our engieer or sales to your compay to
support your business,also for led screen after-service,We will
together with you to the after-service in the whole led screen life
time
Q4, How to maintence led screen?
In usually every year to maintence led screen one time,clear the
led mask,checking the cables connection,if any led screen modules
fail,you can replace it with our spare modules
Our team will be forever here to offer you full supports !!!
