Double-sided LED Billboard Pixel Pitch 6mm LED Church Screen Fixed
Installation Front Open 10ft x 12ft LED Screen

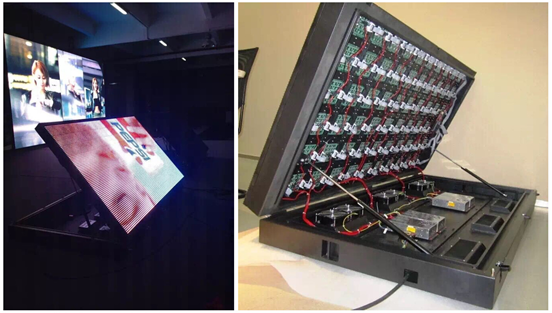

♦ Double sides waterproof led display with access cabinet
(1)Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are
comprehensive, and also we have three display mode as VGA+VIDE and
VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7
millions, and the brightness, contrast, saturation, chroma can be
adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video,
2-dimention, 3-dimention cartoon and other information with your PC
does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content,
and also can be controlled remotely via VPM+ADSL.
♦ Product specification
| indoor SMD P6 |
| Lamp size | 3535 |
| Resolution/mm | 6 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 62500/m² |
| Module resolution | 32x32 |
| Module size/mm | 192x192 |
| View distance | ≥6m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >4000cd/M2 |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 120(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >1200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1100W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Quick Detail
1. Super lighter and thinner;
2. Easy to connection and uninstall;
3. It can display,words,texts,graphics and videos.
4. High resolution and high frequency dynamic image.
♦ Applications
LED display can be widely used in
advertising,multi-media,stadium,stage,rental show,transit
directions,etc.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to you.
After-sales:We will track the products usage and then constantly
perfect our products.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
