Outdoor Full Color P5 Mobile LED Truck Screen with Nationstar LED Chip For Advertising

Shenzhen ShiXin Display Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Outdoor Full Color P5 Mobile LED Truck Screen with Nationstar LED Chip For Advertising from wholesalers

    Buy cheap Outdoor Full Color P5 Mobile LED Truck Screen with Nationstar LED Chip For Advertising from wholesalers
    • Buy cheap Outdoor Full Color P5 Mobile LED Truck Screen with Nationstar LED Chip For Advertising from wholesalers
    • Buy cheap Outdoor Full Color P5 Mobile LED Truck Screen with Nationstar LED Chip For Advertising from wholesalers
    • Buy cheap Outdoor Full Color P5 Mobile LED Truck Screen with Nationstar LED Chip For Advertising from wholesalers
    • Buy cheap Outdoor Full Color P5 Mobile LED Truck Screen with Nationstar LED Chip For Advertising from wholesalers

    Outdoor Full Color P5 Mobile LED Truck Screen with Nationstar LED Chip For Advertising

    Ask Lasest Price
    Brand Name : SCXK
    Model Number : SMD P5
    Certification : CE/ROHS/FCC/ISO/CB
    Price : negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 5000 sqm per month
    Delivery Time : 7-10 working days after receive your payment
    • Product Details
    • Company Profile

    Outdoor Full Color P5 Mobile LED Truck Screen with Nationstar LED Chip For Advertising

    HD P5 Outdoor Waterproof Fixed Mobile Truck LED TV Screen/Led Display


    High IP Rating IP66 - Safe and Reliable


    The special waterproof design of P8 LED Screen Display protects it from water and dust. When installed in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP Rating IP66 ensures great quality outputs in every condition.

    Best Quality Guaranteed


    Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products

    ♦ Product specification

    outdoor P5 SMD
    Lamp size3535
    Resolution/mm5
    Pixel configurationRGB 3 in 1
    Pixel density/pixels/m²40000/m²
    Module resolution64x32
    Module size/mm320*160MM
    View distance≥4m
    Single point brightness adjustCan be added
    Single point color adjustCan be added
    White balance brightness>8000cd/㎡
    Color temperature6500K-9500K
    Horizontal view angle120(degrees)
    Vertical view angle60(degrees)
    Signal Process bit10 or 14 bit
    Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distancesInternet cable:100m, multimembrane:500m, monofilm:5km
    Driving modeConstant driving current
    Scanning modeconstant driving static
    Frame rate60Hz
    Refresh frequency>3000Hz
    Control modeComputer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point<1/10000
    Working hours≥72hours
    Mean Time Between Failure>5000hours
    Life time100000hours
    Life-all-white(brightness halving)50000hours
    Environment temperature rangeOperating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡<750W
    Average power:/㎡<300W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environmentWindowsNT,Windows1999,WindowsXP
    Luminous point width between centresDeviation<3%
    Brightness uniformity<10%
    Color uniformity(chromaticity coordinate)±0.003
    Power supply requestAC85-264V(50Hz-60Hz)
    Contrast(1000:1)
    System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working)working:10-95%
    Humidity(storing)storing:10-95%

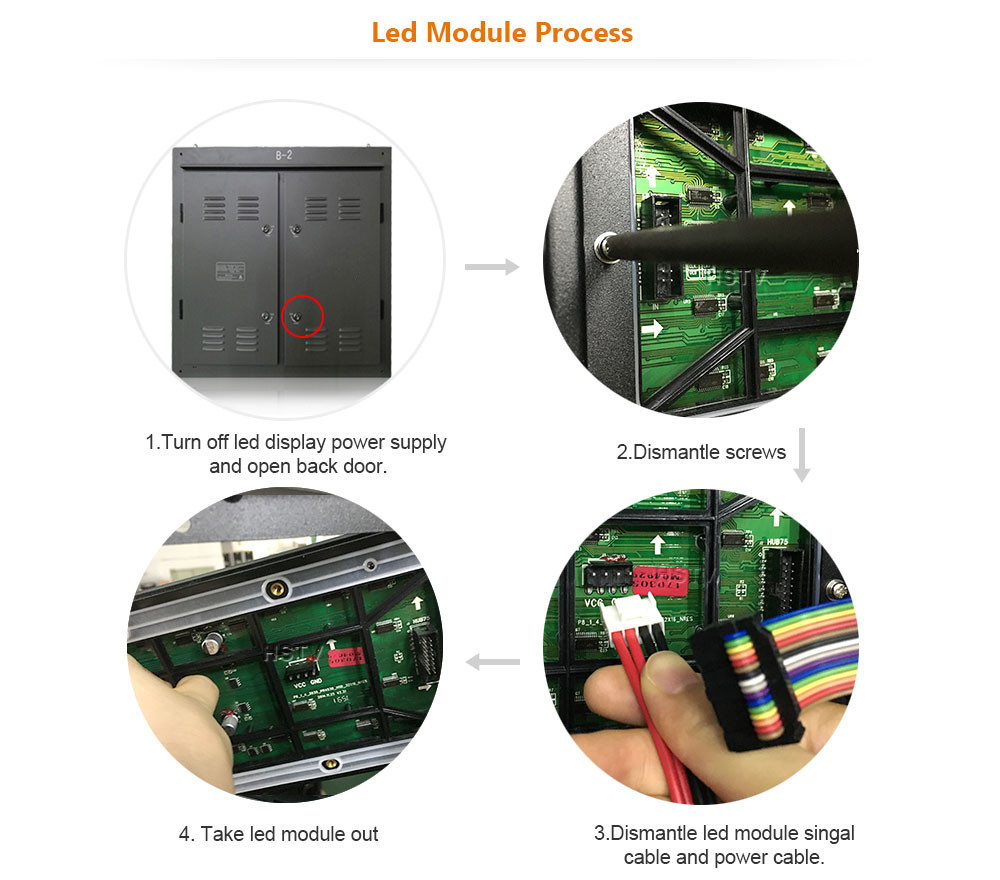

    ♦ LED module process:

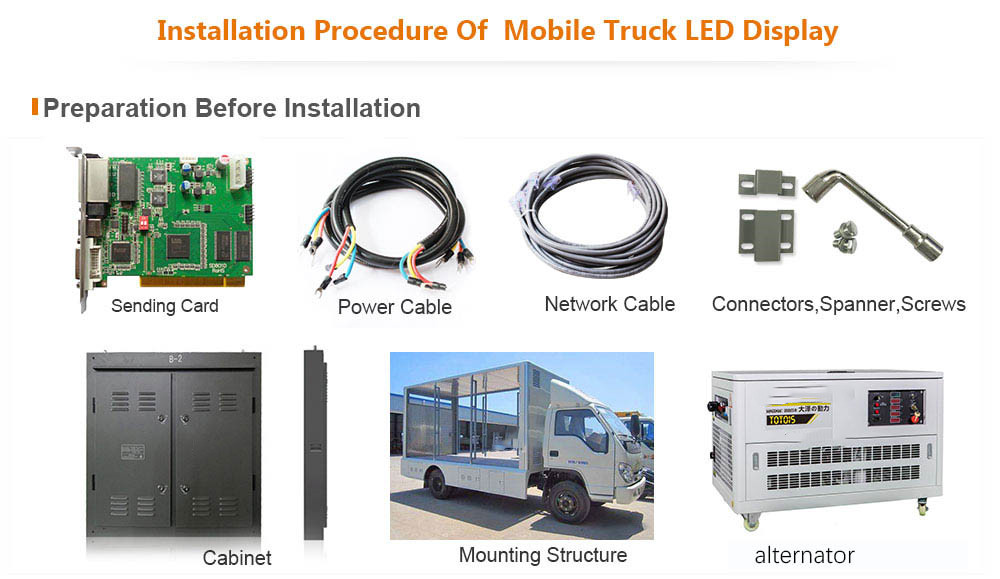

    ♦ Preparation before installation


    Installation procedure



    ♦ Packaging and shipping

    Wooden case or flight case package are available.

    Shipping by sea,air or DHL,multiple shipping ways for your choice.


    ♦ Why choose us:

    Continues Quality

    With more than 10 years experience in led display producing,equipments are updated regularly.What’s more,unique standardized and module production ensure our products continuous quality.


    Competitive Price

    With large scale production capacity and professional production technology,our company have built effective modular production.We always stick to promote the technical innovation and reduce cost to benefit customers.


    Fast Delivery

    Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

    inventory will be used to maintain your uninterrupted supply of the products.


    Perfect Service

    Pre-sales:Your purchasing requirements will be highly valued aHigh IP Rating IP66 - Safe and Reliablend we’ll recommend suitable products to you.

    After-sales:We will track the products usage and then constantly perfect our products.


    Our team will be forever here to offer you full supports !!!
