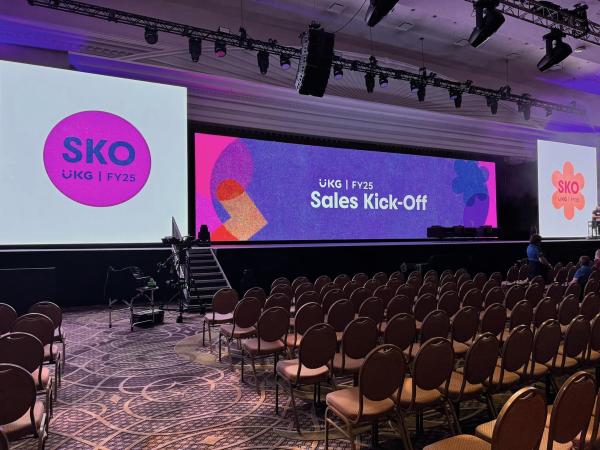

Multiple Screen Full Color Statium LED Display Nova System Wifi 4G
Outdoor P6.67
Our advantages
1. Diversified products :
Varieties of models for outdoor/indoor LED display screens,and
customized cabinets available,meet all requirements and win more
profits for customers.
2. Experienced&Professional:
10 years manufacturing experience on LED displays, professional
workmanship & design.
3. Best raw materials:
Taiwan Epistar LED chip,high quality,high brightness and long life
span.
4. Competitive price:
100% factory price,competitive and reasonable price.
5. Strict quality control:
100% testing before packing , make sure our quality before
delivery.
6. Quality gurantee:
All our LED display screens is more than 100,000 hours life span.
7. Long warranty:
One year warranty, any quality problem during warranty time will be
handled .
8. Prompt &Professional service :
Any inquires will be replied within 24 hours in working days and
you’ll get helpful suggestions from us.
Specifications of products:
| Statium LED Display P6.67 |
| Resolution/mm | 6.67 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 22478/square meter |
| Module resolution | 48*24mm |
| Module size/mm | 320*160mm |
| View distance | 6-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >8000cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | alternating driving current |
| Scanning mode | 1/8 scanning mode |
| Fresh rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Asynchronous,3G,4G,Wifi |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Aging hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Waterproof | Ip65 |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
___________________________________About
FAQ_______________________________________
Q1:How to arrange payment?
A:Our payment terms in usually is T/T payment,for sample and small
order,Western union,Paypal or Moneygram also be acceptable
Q2,What is our warranty?
A:Our warranty from 5year to 1year basis on different type led
screen,In usually every screen we will ready more extra led screen
moduless as spare modules,if some modules happen fails,you can
replace the fail modules by our spare modules,When all the spare
modules use out,You can send back these modules to us for
repair,and we will send to you after repair and testing&aging
well
Q3,How to be our distributor?
A:To be our distributor,We can share our profit together with you
in every year,Also we can send our engieer or sales to your compay
to support your business,also for led screen after-service,We will
together with you to the after-service in the whole led screen life
time
Q4, How to maintence led screen?
A:In usually every year to maintence led screen one time,clear the
led mask,checking the cables connection,if any led screen modules
fail,you can replace it with our spare modules
