P6.67 Single Color LED Display Waterproof HD Cabinet 320*160mm IP65
LSN System
Main features:
Epistar brand LED chips, MBI5024 driver IC, Meanwell Power supply,
all are famous brand materials
Vivid image and video, rich in describing the details of color
High brightness ≥ 1500 CD/m2, automatically brightness adjust to
environment, IP65 and range working temperature design, can meet
your indoor using request
Signal and power automatically timing function, automatically
running
Remote control, error detection, control center management
function, feedback the error by SMS
DOT-DOT correction function support
A. Good quality, the brightness is adjustability
B. Wide viewing angle
C. Pure white balance, good consistency
D. More than 100, 000hours life span
E. Easy learn and operate
F. Our engineers are free to help installing and adjusting display

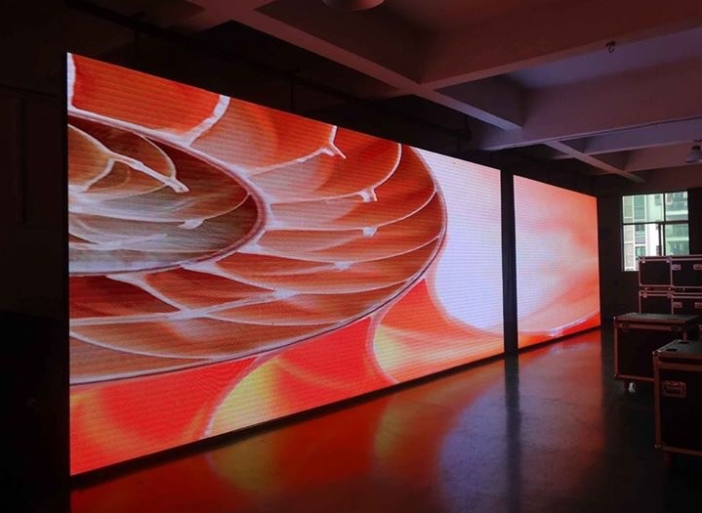

Display is widely used in concert, stage, sports events, fashion
shows, exhibitions and so on.
Basic data:
There is DIP, SMD, and Dotmatrix LED display for customer choosing.
This module can be change into Pixels as followed to cater for
various needs: P4, P4.75, P6, P7.62, P10, P12, P14, P16, P20, P25,
P31.5, P40, P80.
Application of LED display:
Wide applied in stadiums, advertisement, banks, securities
exchange, stations, shoping malls
Postal officees, schools, monitoring, restaurants, entertainment,
enterprises etc...
Specifications :
| outdoor DIP P25 |
| Resolution/mm | 6.67 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 22478/m² |
| Module resolution | 48*24 |
| Module size/mm | 320*160MM |
| View distance | 14-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >7500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/8SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Trade Terms:
1. Payment: T/T, 35% deposits before production, 65% balance to be
paid before dleiverying (Western Union or Moneygram are welcomed)
2. Production lead time for 100~500PCS: 10days, 500~1000PCS: 15days
3. Sample can be delivered in 3days
4. Shipping freight are quoted under your requests
5. Shipping port: Shenzhen, Mainland China
6. Discounts are offered based on order quantities
7. MOQ: 1PC
Our service:
1. Your inquiry related to our products or prices will be replied
in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires
in fluent English.
3. OEM&ODM, any your customized screen we can help you to
design and put into product.
4. Distributoer ship are offered for your unique design and some
our current models.
5. Protection of your sales area, ideas of design and all your
private information.
