Brand Name : | SCXK |
Model Number : | SCXK-P5 |
Certification : | CE,ROHS ,FCC,UL ISO2001 |
Price : | negotiation |
Payment Terms : | L/C, T/T, Western Union, MoneyGram, D/P, D/A, L/C |
Supply Ability : | 1000sqm/month. we can make the led display on time |
Delivery Time : | 7-10days |
Advertising Full Color RGB LED Display Commercial LED Video Screen 640x640 mm
Quick details
We insist better quality and after-sales service to our customers.
And guarantee all kinds of service to our cusotmers.
1. The cabinets, featuring great moisture and corrosion proofing,
enable themselves to work in all weather conditions.
2. Superb refresh rate provides you coherent video effects to
meet your needs for high display quality.
3. Superb cost effective offers you both top notch quality
and reasonable price, maximizing the value of your investment.
Specification
The full color Indoor P5 led display parameter as follows. | |||||||||
LED Lamps | Type | SMD2121(High Brightness LEDs) | |||||||
LED Standard | Real Pixel(1R1G1B) | ||||||||
Red Wavelength | 625-630nm | ||||||||
Green Wavelength | 515-530nm | ||||||||
Blue Wavelength | 465-475nm | ||||||||
LED Module | Pixel Pitch | 5mm | |||||||
Module Size | 320mm x160mm | ||||||||
Module Resolution | 64*32dots | ||||||||
LED Cabinet | Cabinet Size | 640mmX640mm | |||||||
Cabinet Resolution | 128pixels *128pixels | ||||||||
Cabinets Material | Sealed Iron Cabinet | ||||||||
LED Display | Pixel Density | 40000pixels/sq.m | |||||||
Drive IC | MBI5024 | ||||||||
Power Supply | Series connection | ||||||||
Brightness | >2500cd/sqm | ||||||||
Display Color | 16.7million | ||||||||
Viewing Angle | 160°(Horizontal),110°(Vertical) | ||||||||
Best Viewing Distance | 5m~200m | ||||||||
Max Power Consumption | 600 w/sq.m | ||||||||
Average Power Consumption | 300 w/sq.m | ||||||||
Weight | 40kgs/sq.m | ||||||||
Refresh Rate | 2000hz | ||||||||
Input Voltage | AC220V/50H or AC110V/60H | ||||||||
Output Voltage | DC5V,40A | ||||||||
Grey Scale Levels | 16bit | ||||||||
Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
MTBF | 10,000 hours | ||||||||
Life-span | 100,000 hours | ||||||||
Protection Level | IP43 | ||||||||
Failure percentage of leds | less than 0.0003 | ||||||||
Working Temperature | -5℃~45℃ | ||||||||
Drive Mode | 1/16 scaning | ||||||||
Working Humidity | 10%~99% |
Indoor full color SMD 3 in 1 led display | ||||||||
P2 Iron cabinet | 1/32scan | 256x128 | 128x64dots | 250000dots | 512x512 | 2200cd | $1,905.50 | wooden packaged |
P2 die cast aluminum | 1/32scan | 256x128 | 128x64dots | 250000dots | 512x512 | 2200cd | $2,301.50 | flight case package |
P2.5 Iron cabinet | 1/16scan | 160x160 | 64x64dots | 160000dots | 640x640 | 2200cd | $1,111.50 | wooden packaged |
P2.5 die cast aluminum cabinet | 1/16scan | 160x160 | 64x64dots | 160000dots | 480x480 | 2200cd | $1,195.50 | flight case package |
P3 Iron cabinet | 1/32scan | 192x192 | 64x64dots | 111111dots | 576x576 | 2200cd | $795.50 | wooden packaged |
P3 die cast aluminum cabinet | 1/32scan | 192x192 | 64x64dots | 111111dots | 576x576 | 2200cd | $842.50 | flight case package |
P3.91 Die cast aluminum (smd) | 1/16scan | 250X250 | 64x64dots | 65410 dots | 500X500 | 2200cd | $795.50 | flight case package |
P4 iron cabinet(smd) | 1/16scan | 256X128 | 64x32dots | 62500dots | 768x768 | 2200cd | $603.50 | wooden packaged |
P4 die cast aluminum cabinet (smd) | 1/16scan | 256x128 | 64X32dost | 62500dots | 512x512 | 2200cd | $655.50 | flight case package |
P5 Iron cabinet | 1/16scan | 320x160 | 64x32dots | 40000dots | 640x640 | 2200cd | $480.50 | wooden packaged |
P5 die cast aluminum cabinet | 1/16scan | 320X160 | 64X32dots | 40000dots | 640x640 | 2200cd | $555.50 | flight case package |
P6 iron cabinet | 1/16scan | 384x192 | 64X32dost | 27777 dots | 768x768 | 2200cd | $398.50 | wooden packaged |
P6 die cast aluminum cabinet | 1/16scan | 192X192 | 32x32dots | 27777dots | 576x576 | 2200cd | $478.50 | flight case package |
p10 iron cabinet | 1/8scan | 320x160 | 32x16dots | 10000dots | 960x960 | 2200cd | $350.50 | wooden packaged |
All the pricelist include the control system,3 years warranty!(we will send some spare parts based on your order |

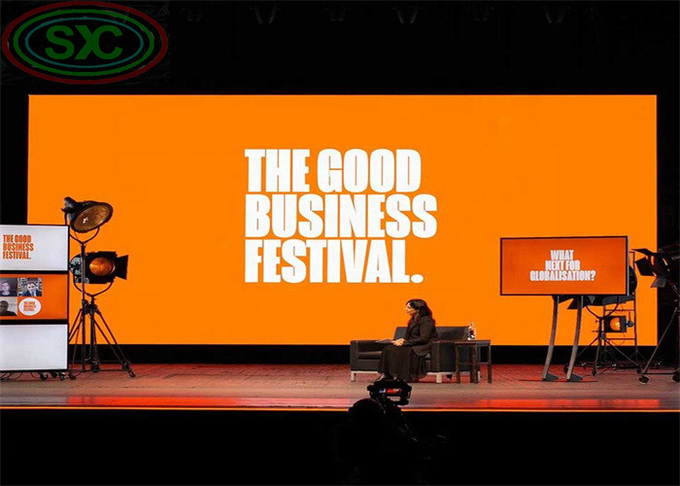

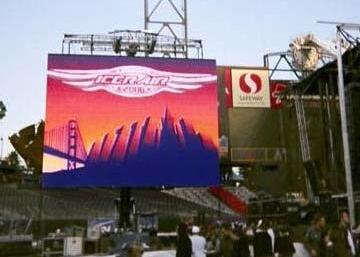

The project case as follows
Firstly,you can tell us the module size,then our engineer will analysis and do several kinds of projects as per your request for your selection,every project has its own advantage and disadvantage,all the details included price is for your reference,
then you can make decision to select which project is the best fit for your situation.Once you confirmed the order,then you will pay us the deposit of 30%,both of you and us stamp and sign the contract,
then we will produce the goods for you,make sure to offer you good quality,and delivery the goods within the deadline,Service first,trust us,trust the world.
Just feel free to contact us for more business information.Any feedbacks will be highly appreciated
![]() |
