SCX LED P10 outdoor LED Display Screen LED full Color High
definition RGB HD fixed led display
Features
1. Bright color, high contrast, good consistency and high brightness
to keep the high resolution of the video under the sunlight.
2. Adopt hight-tech technology in high precision processing box body,
Using connection frame structure,
installation and maintenance is very convenient.
3. Ultra-high dynamic contrast and high-quality display
Ultra-high-definition perfect picture quality,
giving you an exposed visual enjoyment.
4. High refresh rate,no ghosts and Wide viewing angle make the
video display perfect.
5. Minimal Power Consumption HJY LED displays are designed with
optimized power supplies to limit power consumption to a minimum.
HJY long-term commitment toenvironmental protection and core focus
on green energy-efficient solutions.
Application
Outdoor far viewing distance (10mm) Led Display has the ability to
play monitor videos and graphic information in real time. So it can
be widely used in large area such as transportation, electricity,
water conservancy, security, military conferences, city management,
radio and television industries etc.
Module Parameter
| Pixel pitch | 10mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 3535 |
| Module size | 320x160mm |
| LED lamp | KingLight or Nationstar |
| Module resolution | 32x16dots |
| Module quantity per cabinet | 18pcs |
Cabinet Parameter
| Cabinet size | 960x960mm |
| Cabinet material | Ironed steel cabinet |
| Cabinet weight | 32.5kg |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 10000 dots/m² |
| Brightness | ≥7000 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 10m |
| Max.power consumption | 800W/m² |
| Avg.power consumption | 280 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥60frames/s |
| Refresh rate | ≥600Hz |
| MTBF | ≥10000 hours |
| Lifespan | ≥50000 hours |
| Protective function | Over-heat/Over-load /Power-down /Power-leakage
/Lightning-protection etc. |
| Operating temperature | -10℃ ~ +60℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Storage humidity | 10-85% no condensation |
Control System Parameter
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless,
internet etc. |

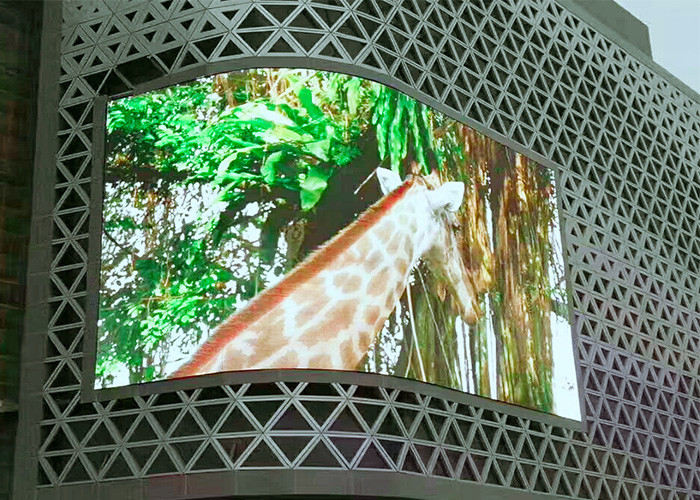

Our case
Many other hot product, welcome to visit our company!
Company profile
our service
Warranty:
We guarantee all our displays, modules, parts for two full years.
During this time, we will replace or amend all our goods for free
if there is something wrong with them. We provide lifetime
maintenance and charge only for the raw materials.
We provide technology training for free, which contains the
operation and maintenance training of the LED screens in the
factory. Any associated CAD drawing on how to fix up the display
and some other expert suggestion will be provided.
FAQ
Q1. What is the MOQ? A: 1pc panel.
Q2: How to control the LED display? A: We use Novastar/Colorlight control system, supports WIFI/LAN/USB/4G wireless control.
Q3: Can you provide installation structures? A: Yes, we can provide installation structures for wall-mounted,
pillar-mounted.
Q4. Do you test all your goods before delivery? A: Yes, we have 100% test for 72hrs before delivery.
Q5: How long is your warranty? A: 5 years, we will be responsible for free repairment or
replacement for defective parts.
Q6: What will you do if we have problems related to installation,
configuration and use? A: Our after-sale service team will solve all the problems, until
the screen can work normally.
Q7. What is your terms of payment? A: 50% as deposit, 50% before delivery. We'll show you the photos
of the products and packages before you pay the balance.
Q8. What is your terms of delivery? A: EXW, FOB, CIF, CFR, DDP, DDU, customer specified freight forwarder
or negotiable mode of transport.
Q9. What is your delivery time? A: Generally 15-20 days after receiving the deposit. The specific
delivery time depends on the quantity of the order.
