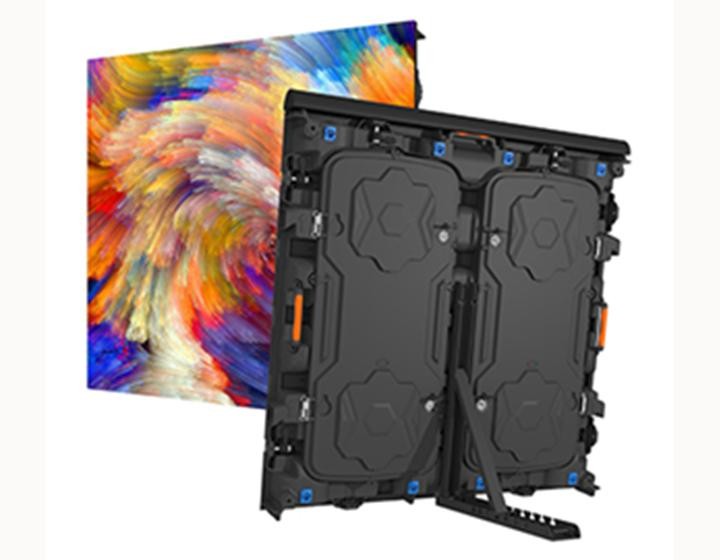

P8/P10/P12/p16 outdoor led screen adopts physical and virtual pixel
technology which makes the picture more clear and vivid, no flicker
and blind dots. The screen is manufactured in a waterproof and
dustproof design so it can work very well in rain and sunshine. It
can be assembled and disassembled very easy, and it is an ideal
product for any kind advertisements.
It characterized by perfect vivid image, super brightness, high
refresh rate, long life span and stable work, and waterproof, etc.
It is widely used in advertising, sports, industrial enterprise,
transportation, stations, terminals, airports, construction,
education system and other public places.
Main advantages:
1. New mask design makes LED light almost zero reflection, which
ensures the screen displaying effect;
2. The cabinet of unit modules adopts to high-temperature spraying
technology, the antirust function is greatly improved;
3. Module surface flatness ± 0.2mm, the entire screen has good
flatness;
4.High uniformity display color;
5. For improving the service life, PCB is made by wave soldering
process with the green oxygen isolation layer, which prevents the
line of moisture and oxidation.
6. Service efficiency of the screen switch power supply is
increased substantially, which reduces power failure rate;
7. Using fishbone bus line greatly reduces the contact problem;
8. IP65 grade for high performance waterproof and dustproof
capability;
9. -25°C – 65°Cworking environment for outdoor display, adapted to
the harsh environment.
Specification:
| model | P10 |
| Pixel unit module | Pixel pitch(mm) | 10 |
| Pixel density (dots/sqm) | 10000 |
| LED type | SMD |
| Module size(mm) | W320×H160 |
| Pixel composing | RGB full color |
| Pixel unit screen | screen size(mm) | 960*960mm |
| module Resolution (nits) | 32*16 |
| Cabinet structure | Water-proof |
| installation | fixed on the back |
| screen material | magnesium alloy |
| Protect degree | IP65 front ,IP54 rear |
| Viewing distance(m) | 10~100m |
| Brightness(cd/sqm) | 7000 cd/sqm or 7000 nits or more |
| Power consumption (w/sqm) | Max 900W/sqm ,can be custom make 500W max |
| Driving IC | 1/4 scan MBI Brand Driver |
| Refresh rate(HZ) | ≥2000- 3000 |
| Viewing angel(c) | H120 V110 |
| Other parameter | Image adjustment | contrast, tonal, the color saturation, gray calibration
coefficient, color range, image variable times, etc |
| Image processing | Video noise reduction, fast motion compensation, edge to sharpen,
edge smooth, color space transformation and control, coordinate
transformation of grey scale, etc |
| Brightness uniformity | The whole screen on the monochrome, minimum pixel luminance and the
brightest pixel luminance than more than 0.9 |
| Gray | 65536 |
| Color temperature/contrast | Red, green, and blue brightness and contrast can through the
software level 100 adjustable, color temperature can be adjusted
according to need |
| Transmitting Distance | The shielded twisted-pair cable transmission distance for 100
meters, the biggest up to 140 m. Multimode fiber of up to 500
meters, the single-mode optical fiber to 20 kilometers |
| Input Signal | RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION |
| Control System | PCTV non-liner editing card+DVI display card+main control
card+optic fiber transmission(Optional) or video dealer |
| Average No Failure Time | 20000 hours |
| Life span | 100,000 hours |
| Out-of Control rate | 0.0001 |
| To floor drain current | Less than 3.5MA |
| Control system | Synchronized |
| Operating Environment Temperature | -20°C—65°C Optional |

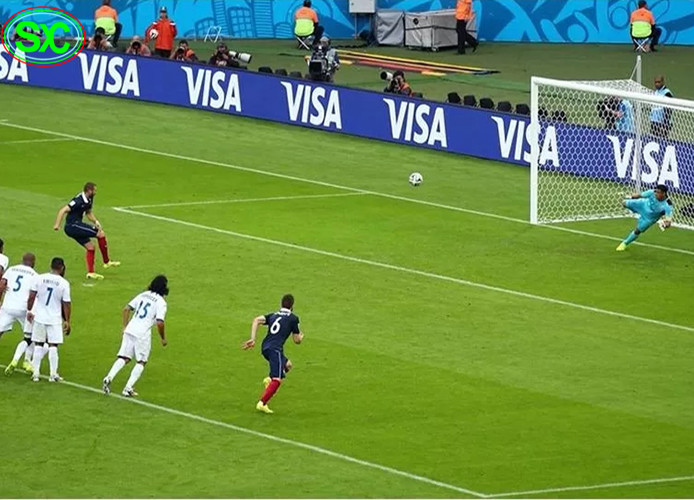

Our Case
FAQ
1. Customization Game:
M-SHINE R&D team always work with customer's engineers to
innovate new goods in flexible methods according to the developing
market, including one type designed for a certain project. M-SHINE
will always design a perfect one-stop solution that you want no
matter where you will install it;
2. Flexible Cooperation Policy:
M-SHINE would build cooperation with any customer according to
their market and needs. Once reached cooperation, M-SHINE will keep
promises and protect the interests of our partners, M-SHINE
believes that building the win-win relationship is a long-term
strategy which would be good for both of us.
3. Strong financial support:
M-SHINE is one of subsidiary companies which possessed by Kingstar,
it is the head office of the industrial park M-SHINE locating,
its annual sales volume is more than several billions RMB. So the
perfect solution that client satisfied is more important than
Product item
Many selection for your screen ,welcom to visit our factory
Outdoor series:
{P3.91,P4,P4.81,P5,P5.95,P6,P6.67,P8(SMD)}{P10,P12,P16,P20,P25(DIP)}
outer full color led module/display.
Indoor series:
P2,P2.5,P3,p3.91,P4,P5,P6,P7.62,P6,P10(SMD) indoor full color led
module/display.
Certificate
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Eachinled has a perfect service system, including pre-sale service,
in-sale service and after-sale service. To provide high quality
service for our customers, we train every salesman with necessary
product maintenance knowledge and organized a Technology Supporting
Department with a group of excellent and professional engineers.
Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's
requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting
and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions,
squares and so on.
