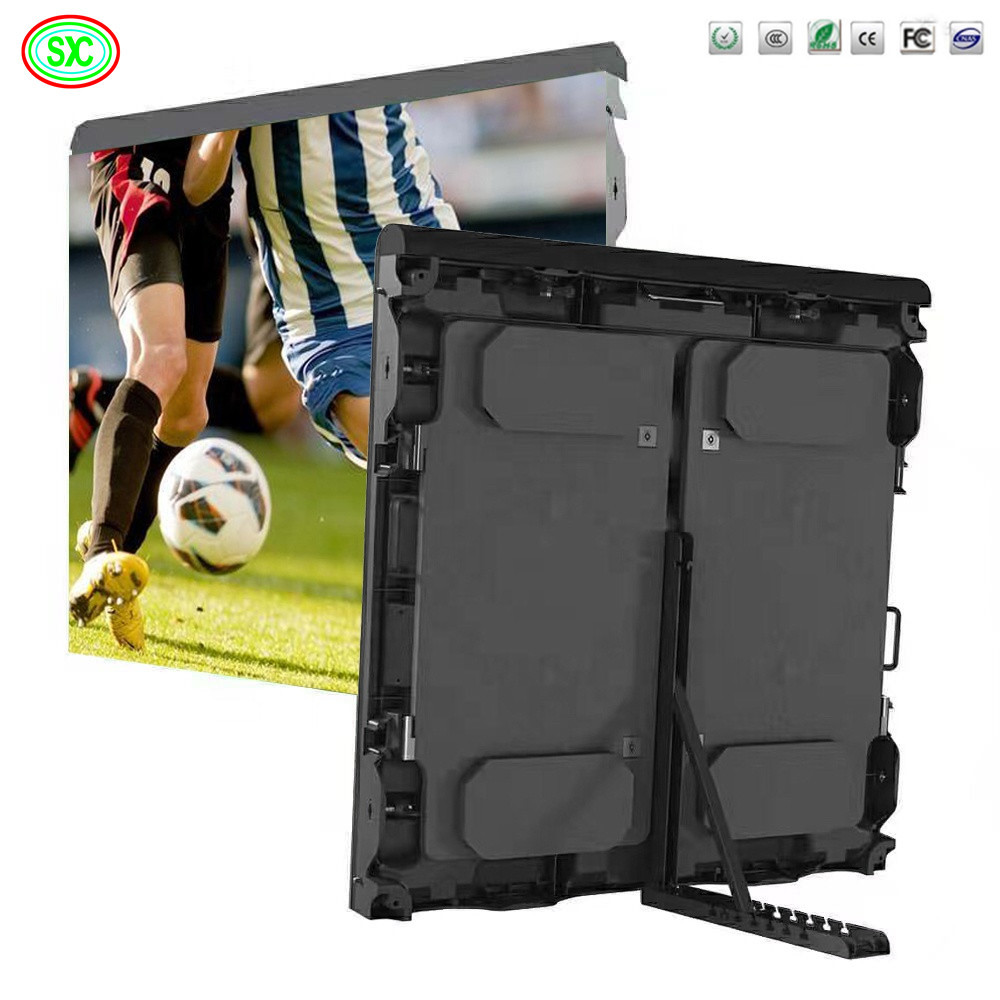

SCX LED High Quality Waterproof Footabll Stadium LED Display P8
Large Stadium Perimeter LED Display Outdoor
Support
Customized steel support, the quality is very good.
There are over 15 holes , you can make the support at any hole to
set suitable height for your project.
Rubber hat
There are rubber hat at the top of cabinet, over 5cm customized, it
can effectively prevent hit of basketball or soccer.
Soft module mask
We make private mode base on P10 LED display to production soft
module mask, it can protect the led display avoid hit better.
Parameter specification
| model | P8 | P10 |
| Pixel unit module | Pixel pitch(mm) | 8 | 10 |
| Pixel density (dots/sqm) | 15625 | 10000 |
| LED type | SMD | SMD |
| Module size(mm) | W320xH160 | W320×H160 |
| Pixel composing | RGB full color | RGB full color |
| Pixel unit screen | screen size(mm) | 960*960mm | 960*960mm |
| module Resolution (nits) | 32*16 | 32*16 |
| Cabinet structure | Water-proof | Water-proof |
| screen material | Ironed steel cabinet | Ironed steel cabinet |
| Protect degree | IP65 front ,IP54 rear | IP65 front ,IP54 rear |
| Viewing distance(m) | 8-100m | 10~100m |
| Brightness(cd/sqm) | ≥6000 cd/sqm | ≥6000 cd/sqm |
| Power consumption (w/sqm) | Max 850W/sqm ,Min 280W/sqm | Max 600W/sqm ,Min 200W/sqm |
| Driving IC | 1/4 scan MBI Brand Driver | 1/4 scan MBI Brand Driver |
| Refresh rate(HZ) | ≥960-2000 | ≥960-2000 |
| Viewing angel(c) | H120 V120 | H120 V120 |
| Other parameter | Image adjustment | | contrast, tonal, the color saturation, gray calibration
coefficient, color range, image variable times, etc |
| Image processing | | Video noise reduction, fast motion compensation, edge to sharpen,
edge smooth, color space transformation and control, coordinate
transformation of grey scale, etc |
| Brightness uniformity | | The whole screen on the monochrome, minimum pixel luminance and the
brightest pixel luminance than more than 0.9 |
| Gray | | 65536 |
| Color temperature/contrast | | Red, green, and blue brightness and contrast can through the
software level 100 adjustable, color temperature can be adjusted
according to need |
| Transmitting Distance | | The shielded twisted-pair cable transmission distance for 100
meters, the biggest up to 140 m. Multimode fiber of up to 500
meters, the single-mode optical fiber to 20 kilometers |
| Input Signal | | RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION |
| Control System | | PCTV non-liner editing card+DVI display card+main control
card+optic fiber transmission(Optional) or video dealer |
| Average No Failure Time | 20000 hours | 20000 hours |
| Life span | 100,000 hours | 100,000 hours |
| Out-of Control rate | 0.0001 | 0.0001 |
| To floor drain current | Less than 3.5MA | Less than 3.5MA |
| Control system | Synchronized | Synchronized |
| Operating Environment Temperature | -20°C—65°C Optional | -20°C—65°C Optional |
Our Case
Buying Guides
In order to offer you a suitable solution, please follow the guides
bellowing :
1,Star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)
After-Sale Service
1. Three year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions,
squares and so on.
Company profile
FAQ
Q1. How can I place the order?
Firstly, please provide the details of your requirements as clear
as possible, so we can send you the offer at the first time. For
custom design, it is better to contact us with Whatsapp/email
/phone for accurate offer.
Q2. What if I don't know how to install the screen?
a. We provide the technology training for free, which contains the
operation training and maintenance.
b. Training 2 people in the factory.
c. We can send our engineers to your country to guide how to
install the screen.
Q3. What if I don't know how to maintain the screen?
We will provide you the operation manual, software, test report
when you place the order and also we can remote to help you to
adjust the software, everything when issues come up.
Q4. How to deliver the my goods?
It denpens on your budget and time you need the led screen.
Regularly, if the quantity is less, we guggest to deliver by air,
otherwise by sea to save the costs..
Q5. I want a good price.
Ok, no problem, please contact us. The good price can be provided
based on communication.
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
