    P10 960x960mm Cabinet 7500cd/sqm Stadium LED Display IP65

    Ask Lasest Price
    Brand Name : SCXK
    Model Number : P8,P10
    Certification : CE/ROHS/FCC/ISO/UL
    Price : negotiation
    Payment Terms : L/C, Western Union, MoneyGram
    Supply Ability : 5000sqm per month
    Delivery Time : 7-12 working days
    • Product Details
    • Company Profile

    P10 960x960mm Cabinet 7500cd/sqm Stadium LED Display IP65

    Outdoor Led Panels P10 Football Stadium Perimeter 960*960mm Advertising Led Screen Display




    Parameter specification

    modelP10
    Pixel unit modulePixel pitch(mm)10
    Pixel density (dots/sqm)10000
    LED typeSMD
    Module size(mm)W320×H160
    Pixel composingRGB full color
    Pixel unit screenscreen size(mm)960*960mm
    module Resolution (nits)32*16
    Cabinet structureWater-proof
    installationfixed on the back
    screen materialmagnesium alloy
    Protect degreeIP65 front ,IP54 rear
    Viewing distance(m)10~100m
    Brightness(cd/sqm)7000 cd/sqm or 7000 nits or more
    Power consumption (w/sqm)Max 900W/sqm ,can be custom make 500W max
    Driving IC1/4 scan MBI Brand Driver
    Refresh rate(HZ)≥2000- 3000
    Viewing angel(c)H120 V110
    Other parameterImage adjustmentcontrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc
    Image processingVideo noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc
    Brightness uniformityThe whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9
    Gray65536
    Color temperature/contrastRed, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need
    Transmitting DistanceThe shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers
    Input SignalRF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION
    Control SystemPCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer
    Average No Failure Time20000 hours
    Life span100,000 hours
    Out-of Control rate0.0001
    To floor drain currentLess than 3.5MA
    Control systemSynchronized
    Operating Environment Temperature-20°C—65°C Optional

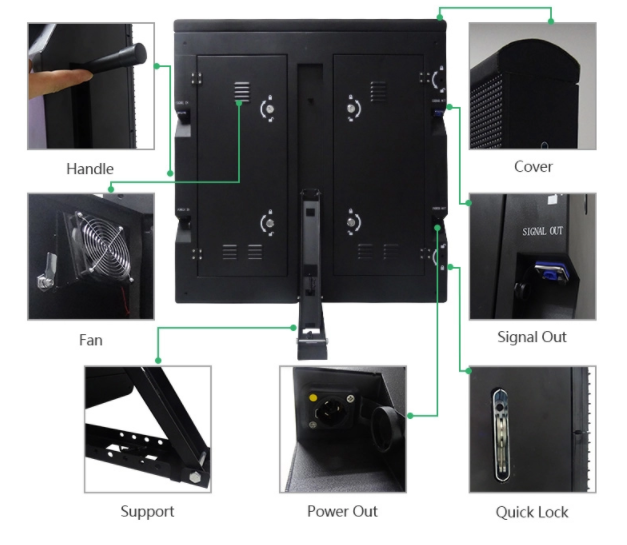

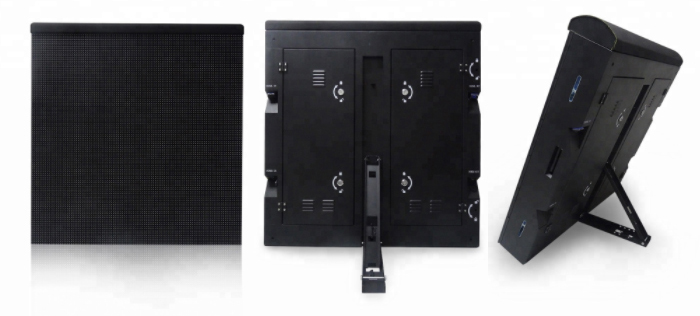

    Cabinet details


    ironed steel cabinet


    Die casting aluminum

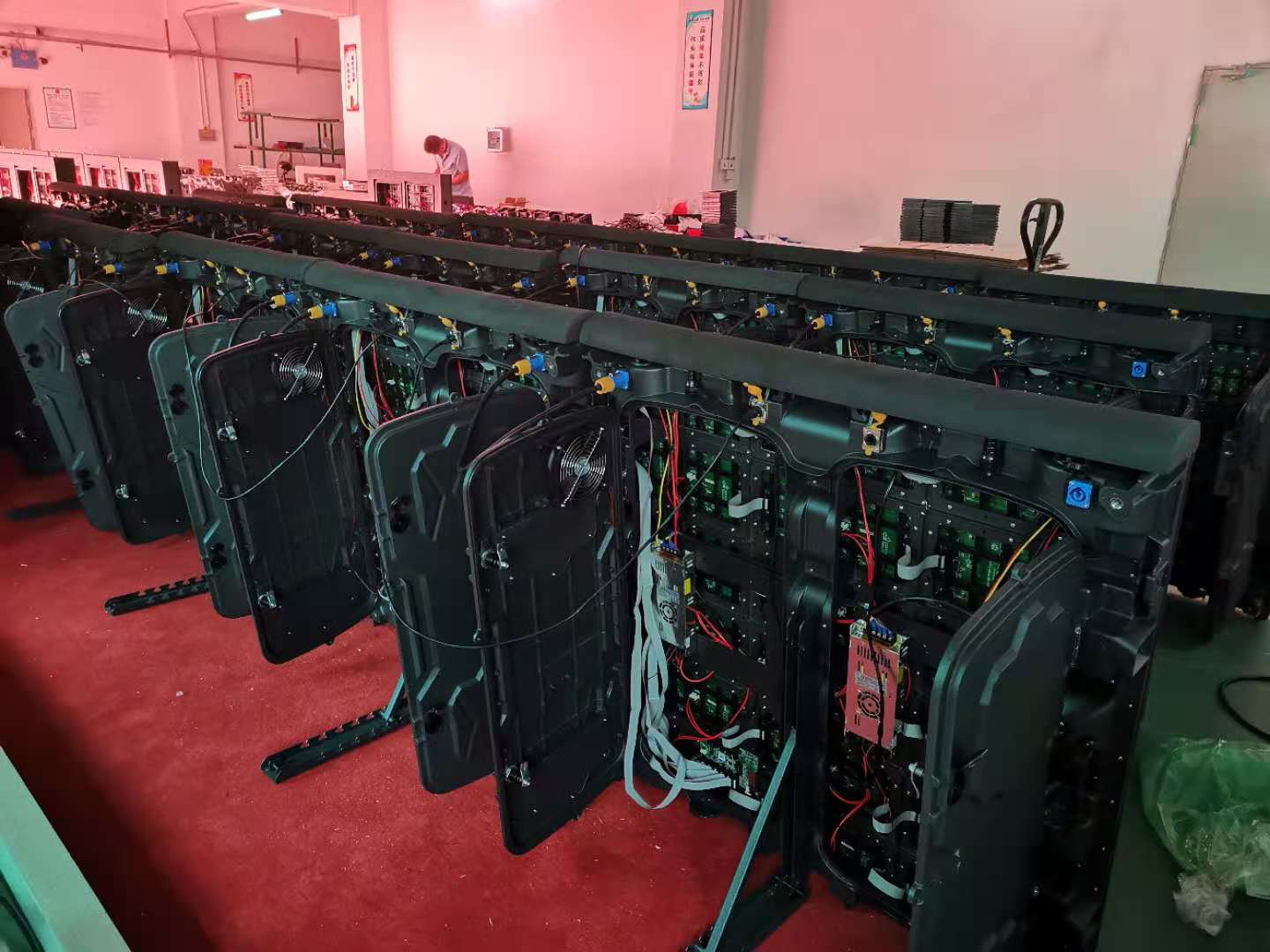

    Our case


    Our service

    1)Reply your inquiry in 24 working hours.
    2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc
    3)Customized design is available,OEM & ODM are welcomed.
    4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs
    5)Special discount and protection of sales area provided to our distributor.
    6)Warmly welcome your visit in our company if available.
    7 ) Guidance service: We can guide on line if customers have questions about the installation and usage.
    For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer's country for on-site guidance.
    8) Warranty period: 2 years after shipment.


    FAQ

    Q1: Are you a factory or trading company?

    A: We are a factory, warmly welcome to visit us.

    Q2: How can I get some samples?

    A: We are honored to offer you samples.

    Q3:How long the delivery time?

    A: 7 days to 18 days, depends on exact project.

    Q4: How does your factory do regarding quality control?

    A: Quality is priority. Shenzhen people always attach great importance to quality controlling from the very beginning to the very end.

    Q5: What is your after-sale service?

    A: We offer 100% guarantee on our product .

    Q6: What is your MOQ?

    A: Any quantity is acceptable for your order.

    And the price is negotiable for large quantity.


    After-Sale Service
    1. Three year warranty , Lifetime free maintenance.
    2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
    3. Customer satisfaction tracking report.
    4. Free technician training.
    5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
    6. Special service for big project, such as stadium, exhibitions, squares and so on.

    Company profile



    Certificate


    Packaging and shipping
    Wooden case or flight case package are available.
    Shipping by sea,air or DHL,multiple shipping ways for your choice.
