Taxi Top P5 P3 P2.5 LED Digital Display Full Color 3G WIFI GPS
Outdoor Taxi Top Moving Advertising Billboard
♦ Our Production Description
1. Lightweight. Convenient in transporting and installing & saving
labor cost, suitable for flow shows.
2. Humanized operating interface with breakdown indicator lights,
easy to maintain.
3. High debugging brightness and no damage to gray scale, achieving
the debugging technology for nice image.
Our Service:
Pre-sales support
1. We offered technical advice to our customers before buying our
products.
2. Help customers to choose suitable products within budget with
most economy benefit.
3. Design the framework structure to install our led products with
technical drawing.
4. We offered software customization for our customer’s specific
usage.
After- sales service
1. We promise our customers 3 years warranty service!
2. We provide free maintenance services including remote
configuration, technical consultation, and trouble shooting for our
customer.
3. We promise a life time follow up service for all the equipment
supply by our company. These include continuously improve of system
functions and upgrade of system software.
1.High Resolution 2.5,3,5 mm pixel Spacing
2.Intensity >=5000 nit
3.Intelligent Power Supply Management
4.Quick installation and maintenance
5.Multiple control Options
6.Made of high quality LEDs
7.Lower Power Consumption
8.IP65 grade
Product Description
Taxi top led display has different pixel pitch for your choose,
P2.5 P3 P3.33, and P5. P2.5
It's outdoor waterproof advertising sign, double side 2 face full
color car roof advertising screen. Slim cabinet with size
960x320mm, We also can do custom size, large size or mini size
depends on your requirement.
Function & Feature
1. Car battery protection
With the special car power supply, once the car battery was closed,
the screen will be closed too. If the car battery is going to run
out, the power supply will shut down automatically until the power
is enough to play again.
2. Overvoltage and over current protection
As the car battery offers the power to the screen when the car
engine started, the voltage may rise to the highest, and also when
there has some traffic, the voltage will be unstable, the special
power supply could protect the screen.
3. Low power consumption
High power consumption will bring more problems to the car, so it
is important to use low power consumption as a protection for the
car.
4. High brightness
Above 5000nits, it is visible under sunlight.
5. Cooling system design
6. 100% vibration Testing
2.Specifications:
| Model Type: | P2.5 | P3 | P5 |
| Pixel Pitch | 2.5 mm | 3mm | 5mm |
| LED Type | SMD 2121 | SMD1921 | SMD 2727 |
| Pixel Density | 160,000 dot/ m2 | 111,111 dots | 40000 dot/ m2 |
| Module Size | 160*160mm | 192*96 | 160*160mm |
| Frame Size | 1100mm( L) x 410mm(H) X W:164mm(bottom)/ 99mm (top) | 820mm( L) x 390mm(H) X W:170mm(bottom)/ 99mm (top) | 1100mm( L) x 410mm(H) X W:164mm(bottom)/ 99mm (top) |
| Frame Materials | Aluminum | Aluminum | Aluminum |
| Screen Size | 960mm*320mm | 768mm*288mm | 960mm*320mm |
| Screen Resolution | 384*128 dot | 256*96 dots | 192*64 dot |
| Brightness | >=5000 nit | >=3500 nit | >=5500 nit |
| Contrast | >8000:1 | >8000:1 | >8000:1 |
| View Angle | 150°(H)/150°(V) | 150°(H)/150°(V) | 150°(H)/150°(V) |
| Scan Mode | 1/32 scan | 1/32 scan | 1/8 scan |
| Power Supply Input | DC9--24V | DC9--24V | DC9--24V |
| Max Consumption | 420w | 270w | 450w |
| Average Consumption | 130w | 90w | 150w |
| Optimal Viewing Distance | 1--20M | 3--20M | 5--50M |
| Driving ICs: | ICN2038 | ICN2038 | ICN2038 |
| MTBF | 10,000 Hours | 10,000 Hours | 10,000 Hours |
| Frame Frequency | 60-85HZ | 60-85HZ | 60-85HZ |
| Fresh Frequency | >1920HZ | >1920HZ | >1920HZ |
| Control Method | Asynchronous | Asynchronous | Asynchronous |
| Control Mode | 3G/4G/WIFI/ Ethenet/ USB | 3G/4G/WIFI/ Ethenet/ USB | 3G/4G/WIFI/ Ethenet/ USB |
| Temperature Operating | -40°~+70° | -40°~+75° | -40°~+75° |
| Working Humidity | 10%-90%RH |
| Screen Protection | Waterproof, rust-proof, dust-proof, anti-static, anti-mildew |
| Power Protection | over-temperature/over-current/ over-voltage protection |
| Package | Honeybox |
| Package Dimension | 1100mm(L) X 500mm(H) X 270mm(W) |
| Screen Weight: | 24 kg | 15kg | 23kg |
| Gross Weight: | 31 kg | 22Kg | 30kg |
| Certificates | CE. ROHS | CE. ROHS | CE. ROHS |
Q1: WIFI or 4G controller card, which one is best?
A: For less quantity, you could choose the wifi controller card,
the cost will more economic.
The disadvantage of the wifi controller is that you have to be
close to the screen when you need to update the advertisements.
Q2: How to install the screen on the top of car?
A: Yes, we can provide you API, then your engineer can design your
own platform.
Q3: May I use my own platform to control the screen?
A: We will provide a video guide for you, with a bracket to fix the
screen on the car roof.
Q4: May I know what's advertising display on the screen?
A: You can see the log on the platform. There will show you a list.
Q5: The screen can adjust the brightness automatical?
A: With a brightness sensor, the screen can adjust brightness
automatical.
Q6: Before delivery, what test will do for the screen?
A: We will do 72 hours aging test and waterproof test.

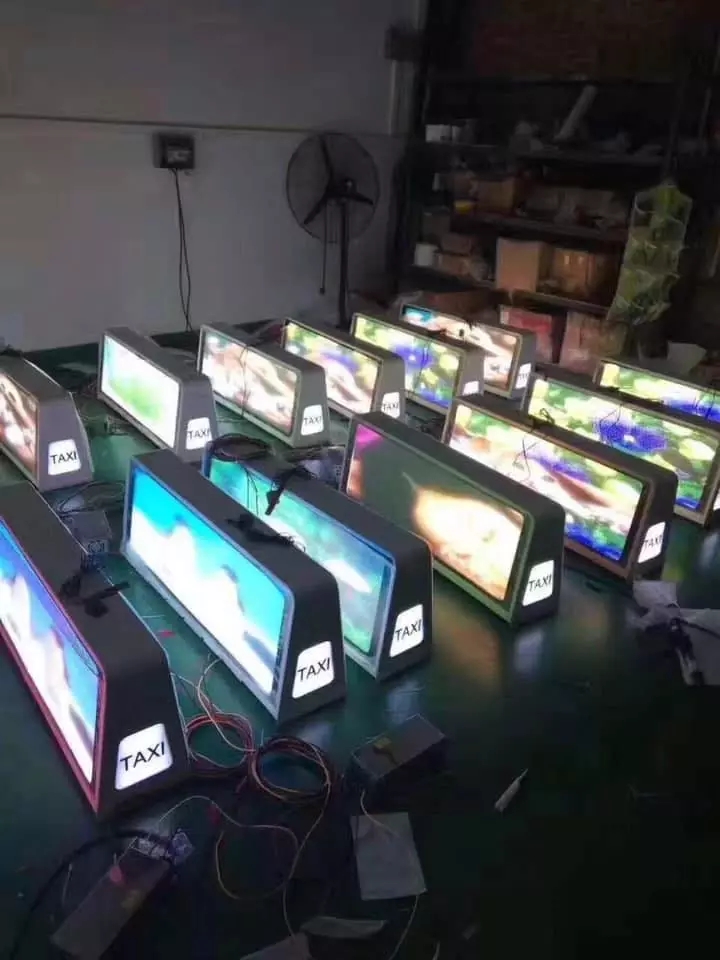

Car taxi roof led sign controlled by wireless 3G 4G WIFI, with high
resolution, it can display HD digital advertising vid
eo.
taxi to dvertising led display screens with high brightness, we use
outdoor SMD led module panels, 2 sides visible under sunlight.
led taxi car top ads billboard Packaging & Shipping
Honeycomb box covered with eco-friendly paper and pearl cotton is
placed inside, which protects every display.
During the transportation process, the display will not be damaged
by collision.
Our Services
1. We have a professional engineers team
All of them have experienced more than 5 years in the LED display
industry. They are specialists, try their best to make your dream
come true.
2. OEM&ODM friendly
If you are just starting a business, you want to conduct small
business with your own brand, we could help you that. Just let us
know your specific requirements.
3. Anything could be customized
Most of our customers are always asking if they could add something
from them, or just add their logo on somewhere, our responses are
always yes. We could create the screen shape for you, some logo on
your product, even could fit your products in it. How amazing that
is!
4. Intimate services
Our sales will reply to every question every day, 7-24, even if you
couldn't speak English so well, we also have other language
support.
5. Detailed guidance
When you get your product, we have detail guidance inside of the
boxes, guidance videos are provided too. But if you still couldn't
figure out how to install it, we could also make the video call to
help you understand it and make it.
6. Responsible after services
If the product is under the warranty, once it broke, you could
replace it with some spare parts, and send the broken part back, we
will fix it and resend it to you.
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection
before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and
professional production ensure
our led display’s competitiveness.
