SCX LED High Quality P8 Outdoor Fixed Installation Billboard
Digital Full Color LED Display Screen
Environmental Advantages1) Keep people safe
2) Improving the quality of life
3) Outdoor LED signs deliver better service
Business Advantages
1) Boadening customer base
2) High-quality images
3) Release content efficiently
4) Energy conservations
5) Environment protected
6) Update your Ad effectively
7) Impact force
8) Diversity
9) Wide angle of view
♦ Technical specification
| outdoor SMD P8 |
| Resolution/mm | 8 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 15625/m² |
| Module resolution | 32x16 |
| Module size/mm | 256x128 |
| View distance | 7-500m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >8000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | (1/4) |
| Frame rate | 60Hz |
| Refresh frequency | >4200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/㎡ | <950W |
| Average power:/㎡ | <350W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

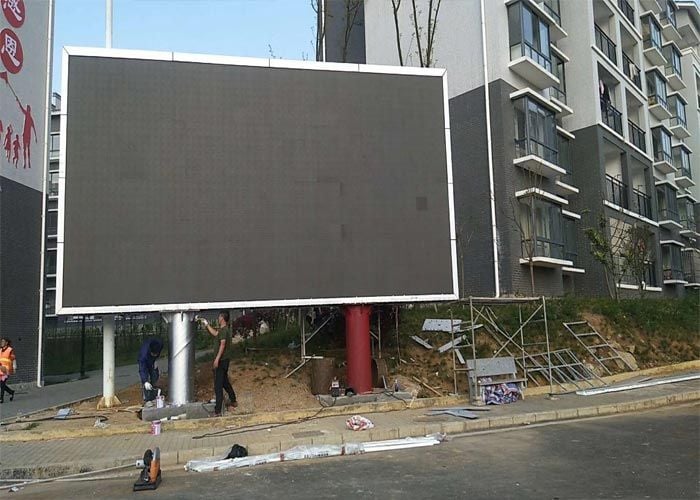

Our case
♦ Production process
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Applications
--- Outdoor and indoor advertising, digital billboards, advertising
companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car
dealerships.
--- Architecture and social projects, information systems in
cities.
--- Show-business, concerts, festivals, motor shows and other
public events.
Product Application
Outdoor led screen can work under the sun for high brightness and
large viewing angle with a certain function of a windbreak,
rainproof and waterproof.
Which is widely used as outdoor advertising and information media
at station, square and shopping mall.
Outdoor led screen can be divided into a pillared screen,
wall-mounted screen, and floor-standing screen, etc.
Our Service
1. Warranty
1) We provide warranty of all components for 3 full years. During
this time, we will replace or repair our goods for free if there is
something wrong with them.
2) We will provide maintenance for a lifetime and charge for the
raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the
operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the
raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp
or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so
on.
2) We can also provide all kinds of certification such as CE, LVD,
RoHS and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and
some other expert suggestion.
2) We will send our engineers to your place if we are expected
after our negotiation.
6. Additional Service
1) We provide you the forwarding information, and some other
information such as flight box, structure
FAQ
Q1: What`s your payment term? How long it takes to delivery?A: We accept T/T and L/C, For both T/T and L/C,Our average Production time is 16 days after receiving the deposit.
Q2. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q3: What about your pre-sale service and post-sale service?
A: For pre-sale service: We have a professional sales team and a 8
years technical team who are willing to answer your question 24/7.
We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the
screens, and change the broken modules with spare parts. Also, we can send technicals to your country to solve problems.
Mostly, our led display will not have big problems within warranty
time!
Q4: What's the control system?
A: We use Colorlight control system,Nova control system,can choose
by customers.
Q5: What's the warranty of your LED Display Screen ?
A: We have a 2-year warranty for our led display screen, and
100,000 hours life span of the led lamps.
Q6. How to proceed an order for led display?
A: Firstly let us know your requirements or application, liking
project size, rental or fixed installation.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the order and places deposit for formal
order.
Fourthly We arrange the finished display cabinet.
