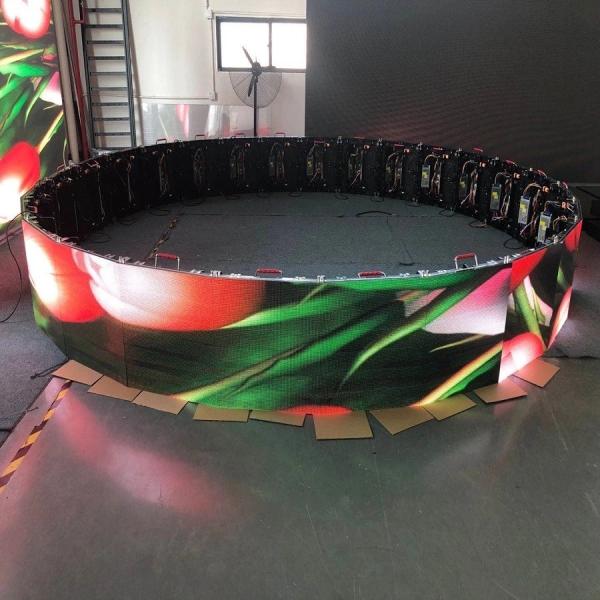

♦ Small Pixel LED Screen for Clearer Pictures
1,Stage led screen: easy to hanging install and fast assembly for
the background video panel ,suitable to stage setting .
2,Conference & Board Rooms led screen : install in Conference &
Board Rooms for meeting or stage background.
3.Stadiums & Gymnasiums led screen : install in the Stadiums &
Gymnasiums to live sports event, as video wall panel
4.Meeting room & Auditoriums led screen : install with a portable
section aluminum structure ,as a mobile led screen .
5.Banquet led screen: install in the banquet hall for music video
or events video panel as setting.
6.Airport led screen : install in airport for festival
advertisement or special video display .
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Product specification
| indoor SMD P3.91 |
| Lamp size | 2121 |
| Resolution/mm | 3.91 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 65410/m² |
| Module resolution | 64x64 |
| Module size/mm | 250x250 |
| View distance | ≥2m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >2500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1100W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
♦ About us:
Established in 2005, clients cover more than 50 cuntries, Mainly
USA, Europe, dubai, north and mid america, south america, asia. As
a high-tech enterprise integrated with scientific research, design,
production, maintenance, sales and system integration, we have a
professional high-quality technical R & D team,rich experienced
engineers and professional product development and design
engineers,excellent marketing team, pre and after-sales 24 hours
service. Even face with harshest environment,we can carefully
choose different suitable materials and make the best offer.
| Item | P2.604 | P2.97 | P3.91 | PH3.91 | PH4.81 |
| Pixel Pitch (mm) | 2.604 | 2.97 | 3.91 | 3.91 | 4.81 |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | SMD1515 | SMD1515 | SMD2121 | SMD1921 | SMD1921 |
| Pixel Density (dot/m²) | 147456 | 112896 | 65536 | 65536 | 43264 |
| Module Size (W×H×D)(mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 |
| Module Resolution (W×H) dot | 96x96 | 84x84 | 64x64 | 64x64 | 52x52 |
| Cabinet Size(W×H×D)(mm) | 500x500 | 500x500 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Method | 1/32 | 1/28 | 1/16 | 1/16 | 1/13 |
| Flatness (mm) | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.10 |
| Gray Scale (Bit) | 14 | 14 | 14 | 14 | 14 |
| Use Environment | Indoor | Indoor | Indoor | Outdoor | Outdoor |
| Waterproof Level | IP45 | IP45 | IP45 | IP65 | IP65 |
| Maintenance Mode | Front rear | Front rear | Front rear | Rear Maintenance | Rear Maintenance |
| Brightness | 700-900 | 700-900 | 800-1000 | 1000-3300 | 1000-3300 |
| Framing Frequency | 50/60Hz |
| Refresh Frequency | 3840 HZ |
| Supply Voltage | 4.2 V low voltage power supply, low heat, stable white balance,
good picture reduction; low power consumption, more energy saving |
Rental LED Project
MPLED LED display have been exported to more than 100 countries and
districts with more than 3000 successful projects, such as USA,
CANADA,GERMANY,RUSSIA,UKRAINE,TURKEY, MIDDLE EAST,
THAILAND,SINGAPORE,INDONESIA, SOUTH KOREA,MEXICO,ARGENTINA etc.
MPLED outdoor rental led display mainly used for commercial
promotion,exhibition, concert, wedding ceremony
and other outdoor events.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
