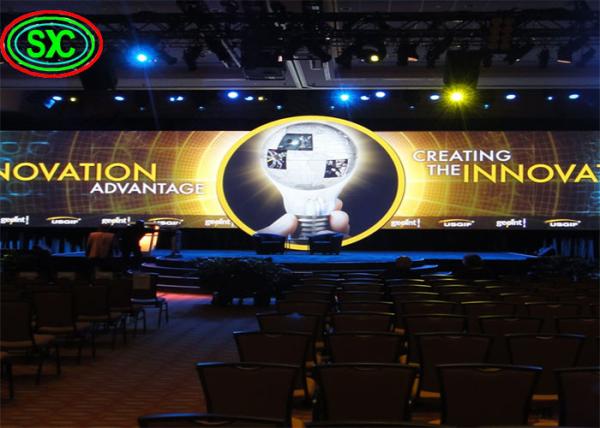

High Brightness Indoor Rental Full Color Led Display Event Stage
Show Hanging Big Screen With Die Casting Aluminum
This is the indoor range and is also available for semi-outdoor
use, we have a wide range of types to offer you plenty of choice.
Abundant choices.
Indoor series are P1.667, P1.923, P2, P2.5, P3, P3.91, P4, P5, P6,
P10.
The outdoor series are P3.91, P4, P4.81, P5, P5.95, P6, P6.67, P8,
P10, P12, P16, P20.
At present, besides these tips, we also have other products, such
as poster screen, transparent screen and so on.
If you are interested, please contact us and we will reply you
within 24 hours.
Thank you for your support and welcome to send us your enquiry!!!!
Specifications:
| Resolution/mm | 3.91 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 65410/square meter |
| Module resolution | 64*64 |
| Module size/mm | 250*250 |
| View distance | ≥4m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >5000cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | (1/16) |
| Frame rate | 60Hz |
| Refresh frequency | >1000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/square meter | <700W |
| Average power:/square meter | <220W |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Waterproof | IP34 |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC220V/60HZ |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Features:
1) High refresh rate, high brightness and high contrast ratio make
the screen display animations clearly even under direct sunlight.
2) Energy saving: low current, high brightness bulb, equipped with
PFC switching power supply, 30% power saving.
3) Adjustable brightness to meet the needs of environmental changes
4) Wide Viewing Angle: Very wide horizontal and vertical viewing
angle, suitable for wide horizontal surfaces.
5) Environmentally friendly, anti-static, dustproof, good heat
dissipation, cost-effective.
6) Error Detection and Monitoring: Internal temperature, voltage,
cooling fan, etc. can be monitored and errors can be detected
automatically.
7) High Reliability: Adopting distributed scanning technology and
module design technology, higher reliability and stability.
8) Stable and reliable system: strong anti-interference ability,
long service life, can work continuously for more than 24 hours,
simple system operation.
9) Good effect: Adopting point-to-point calibration technology, the
image is clearer and the sense of hierarchy is stronger.
10) Easy to install and maintain the display module.
Info about us:
SCXK has been specialized in LED field since 2005. We are a leading
manufacturer and provider of technical solution of full color
indoor an outdoor ledisplay,rental LED display, led modules where
in Shenzhen ctiy,Guangdong province,China.
We have a professional team and a series of equipments.Every year
our products exported overseas and are popular among many foreign
countries,also in our own country you can find the many application
places.Such as station,airport,church,shopping mall,commercial
centure,concert and so on.
From statium to TV station,conference&events,SCXK Electronics
provide a wide range of eye-catching and energy saving LED screen
solutions to industrial,commercial and governmental markets
worldwide.
FAQ
Q1: How to help client choose suitable display?
A1:
(1)specific application scenario
(2)viewing distance requirement
(3)display brightness requirement
(4)specific installation environment
(5)budget and cost control
Q2: What about your technical support?
A2: Proffessional engineers are on standby, can offer guidance, on
site technical support as required.
Q3: What's the control system?
A3: For synchronization control: Nova, Linsn or Mooncell control
system.
For asynchronous control: Onbon or Xixun control system.
Q4: What's the warranty of your LED displays?
A4: We provide 2 years warranty and conditioned lifetime technical
support for our LED display products.
Q5: What's your payment method?
A5: Our payment method is T/T 30% as deposit, balancing before
delivery.
