    HD Magnetic No-Smear P4 P3 P2.5 P2 P1.86 Indoor LED Display outdoor full color led display

    Ask Lasest Price
    Brand Name : SCX
    Model Number : P2.6
    Certification : CE/ROHS/FCC/ISO/UL
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 3000sqm per month
    Delivery Time : 7-10 working days after receive your payment
    • Product Details
    • Company Profile

    HD Magnetic No-Smear P4 P3 P2.5 P2 P1.86 Indoor LED Display outdoor full color led display

    HD magnetic p4 p3 p2.5 p2 p1.86 p1.83 p1.66 p1.53 p1.25 indoor led display screen panel led video wall


    Features

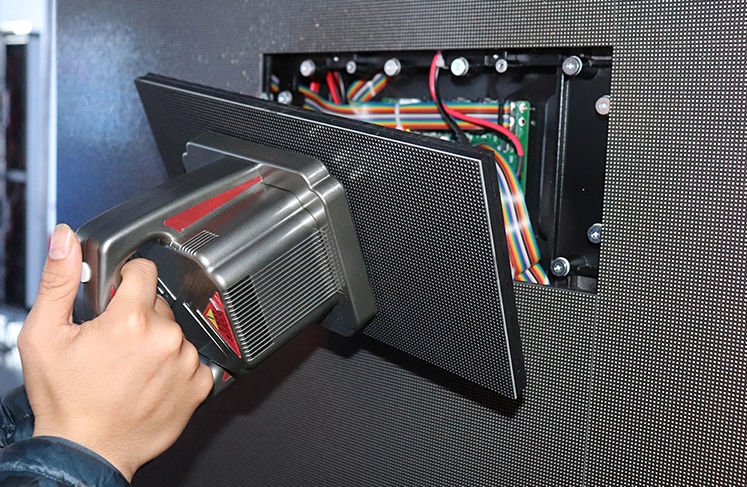

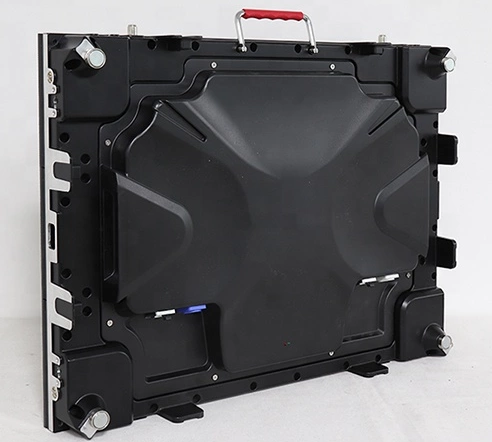

    - We provide a frame structure that can be mounted on the wall. - The cabinet can be fixed to the frame with magnets, which is very convenient to install. - The module, power supply, and card can be taken out from the front of the screen, which is very convenient for maintenance. - 640x480 die-cast cabinet, excellent flatness, light weight, about 8kg/cabinet, the thickness is only 130mm when the whole screen is installed on the wall. - Pixel pitch options: HD series P1.86, P1.83, P1.66, P1.53, P1.37, P1.25, ordinary series P5, P4, P3.07, P2.5, P2

    Specifications


    Part No.P2.6
    Module Size250*250mm
    Module Resolution96*96
    LED Encapsulation1R1G1B
    Pixel Density147629 dots/sqm
    Cabinet Size500*500mm
    Pixel Pitch2.6mm
    LED SizeSMD 1010
    Driving ModeStatic Full Color
    Brightness10000cd
    Contrast≥6000:1
    Display Color1.07 billion
    View Angle120° degree Horizontal & 60° degree Vertical110
    Brightness Adjustment0-100% 8 levels
    Operation Power220V 60HZ
    Max Power Consumption750 w
    Average Power Consumption280 w
    Frame Update Frequency100hz
    Screen Refresh Frequency480hz
    Gamma Correction(-0.5—5.0)
    Operating Temp.- 10° —+55° Celcius degree
    Operating Humidity10 - 90 % RH
    Operating Life100,000 Hours
    MTBF5000 Hours
    Protection LevelIP43
    Out of Control Pixel Rate0.01%
    Input Signal SupportComposite, S-Video,Component,VGA, DVI,HDMI,SDI,HD_SDI
    Control DistanceUTP CAT5E:100m; Multi-mode Fiber:500m;Single-mode Fiber:10km
    Support VGA Mode800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200,
    Brightness CorrectionDot by Dot,module by module, cabinet by cabinet
    Control ModeSynchronous display with control PC by DVI

    Pictures






    Applications


    --- Outdoor and indoor advertising, digital billboards, advertising companies
    --- Sports halls, fields, playgrounds,school church
    --- Airports, bus stations and railway passenger terminals.
    --- Facades of shopping malls, department stores, banks and car dealerships.
    --- Architecture and social projects, information systems in cities.
    --- Show-business, concerts, festivals, motor shows and other public events.


    Production process


    1) Incoming Inspection→2)SMD→3)Plug-in

    →4) Wave Soldering→5)After Welding→6)Testing

    →7) Semi Finished Aging→8)Module Assembly

    →9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing


    Packaging and Shipping


    Wooden case or flight case package are available.


    Shipping by sea,air or DHL,multiple shipping ways for your choice.


    FAQ


    Q1. Can I have a sample order for this products?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A:Production time needs about 15 working days for order quantity more than 6 sqm.

    Q3. Do you have any MOQ limit for LED screen order?

    A: Low MOQ, 1pc for sample checking is available, and Normal order's MOQ is6 pcs cabinet

    Q4. How do you ship the goods and how long does it take to arrive?

    A: By express is the fastest but most expensive. By airplan also need about 7 days , middle cost.By sea is the most economic but will take 20-30 days transit time. Small order Express is a good solution, Big order always by sea.

    Q5. How to proceed an order for LED screen?

    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.
