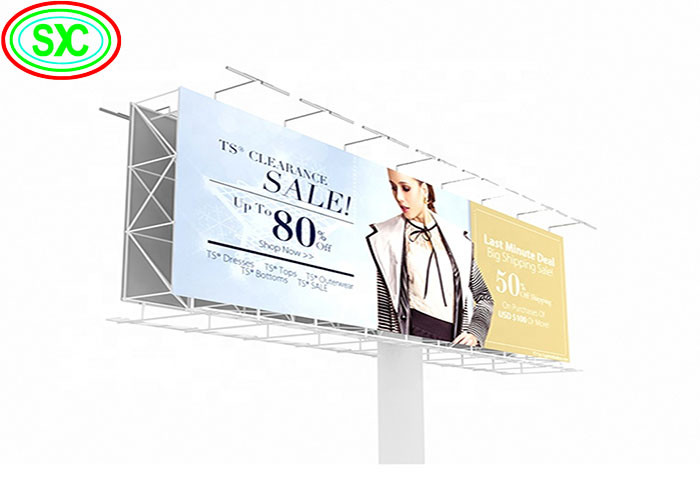

Large size aluminum cheap P10 led billboard display city
advertising
Products function introduction:
1) High and adjustable intensity, adaptable to strong light and bad
climate, can meet customer's requirement according to environment.
2) Optimal equality, excellent solution to mosaic problem,
excellent light consistency
3) Graphic and text, clear, delicate and real display effect.
LED Drapery Screen
4) Large viewing angle, horizontal line 110 degrees, vertical line
60 degrees
5) Each LED light can be serviced, so the maintenance cost is low
and easy to repair.
6) Usually used in sports, advertisement, bank, stock exchange,
station, harbor, indoor P6 display screen, etc.
Our service:
1. Your inquiry about our products or prices will be responded
within 24 hours.
2. Well-trained and experienced staff will answer all your
inquiries in fluent English.
3. OEM and ODM, any customized screen you want, we can help you
design and put into the product.
4. Provide distributors for your unique design and some of our
current models.
5. Protect your sales area, design ideas and all your private
information
Sepcification:
| P10 Advertising LED Sign Dislplay |
| Resolution/mm | 10 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 10000/square meter |
| Module resolution | 32x16 |
| Module size/mm | 320x1601MM |
| View distance | 14-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >7500cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/4 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | >600Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Our results:
Our company:
Shenzhen ShiChuangXin Ke Electronic Co.,Ltd is a high-tech enterprise integrating R&D, design, production,
marketing and after-sales service of LED displays.
We can offer all types of indoor and outdoor led display, and it's
videly used in banking, communicatins offices, electric power
industry, traffic, stadiums and sporting area, business plaza,
entertainment for the applications of advertising, sports,event,
stock/ sport news ticker, message center, price etc. The basic LED
cabinet are easier for customers' installation and maintenance to
meet the market requirement.
We are also renowned for building custom LED Display that will meet
your unique and specific need. More importantly, we are committed
to providing quality products at competitive prices and superior
customer services. With the quality management sustem ISO9001, the
strong R&D and manufacturing group, SCXK became one of the
leading companies or LED display industry in Shenzhen.
Normal questions:
Q1: What is the control system? How is it?
A: We use Nova Taurus Series asynchronous control system. Support
cluster play and management. Support APP/Phone/ WIFI/ Ipad/ Laptop/
PC/ Cloud control. It’s very easy and convenient to control.
Q2: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed
samples areacceptable.
Q3:Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q4: What is your best service?
1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after -
sales service be well.
Q5. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your deposit.
The specific delivery time depends on the items and the quantity of
your order.
Q6:How about your Warranty Term?
A: 2-year warranty. Structure design, installation problem, system
problem, how to use the screen…don’t worry, we have professional
after-sale team to solve your any questions after you placed an
order. And your exclusive sales engineer will also help you get
over any problems.
Welcome to visit our website and inquire us more info,waiting for
you all the time!!!
