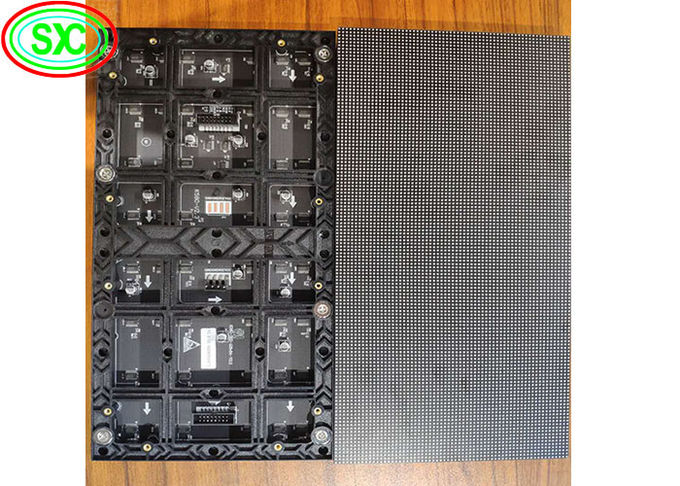

    200x150mm Module GOB Screen P1.667 Full Color LED Message Boards Advertising And Shopping Malls

    Ask Lasest Price
    Brand Name : Shichuangxinke
    Model Number : SCXK-P1.667
    Certification : CE RoHS FCC CCC TUV UL
    Price : USD 1000-8500 per square meters
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000sqm per month
    Delivery Time : 7-10 working days after deposit payment received
    • Product Details
    • Company Profile

    200x150mm Module GOB Screen P1.667 Full Color LED Message Boards Advertising And Shopping Malls

    GOB Glue Small Pixel Pitch Full Color HD LED Screen P1.667 , 200x150mm module


    Features:


    Users can arrange any display mode at will, such as displaying text, graphics, images, animation, video information, and the number of displays is not limited.

    Adopt super bright LED with high contrast.

    High frame rate and wider viewing angle

    Adopt module development and distributed scanning technology, high reliability

    Universal DC input/full range

    Modular design for easy installation and maintenance

    PC synchronous or asynchronous control (optional)

    Easy to use common video playback software

    2-3 year warranty



    Description:

    1, P1.667 SMD LED display is high resolution for indoor LED screens use;
    2, Large viewing angle at 140 degree horizontal and vertical;
    3, Eletronic digital sign P1.667is being used more and more, as LED screens trend is high resolution.
    4, Clear and vivid advertising image and video;
    5, High contrast ratio at 1000:1 to present true and natural color LED screens;


    Specifications :


    Outdoor DIP P1.667
    Resolution/mm1.667
    Pixel configuration1R1G1B
    Pixel density/pixels/m²360000/m²
    Module resolution120x90
    Module size/mm200x150MM
    View distance14-300m
    Single point brightness adjustCan be added
    Single point color adjustCan be added
    White balance brightness>7500cd/㎡
    Color temperature6500K-9500K
    Horizontal view angle120(degrees)
    Vertical view angle60(degrees)
    Signal Process bit10 or 16bit
    Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distancesInternet cable:100m, multimembrane:500m, monofilm:2km
    Driving modeConstant driving current
    Scanning mode1/30 SCANNING
    Frame rate60Hz
    Refresh frequency>3000Hz
    Control modeComputer synchronous
    Brightness adjusted rangeManual, automatic operation, stepless continuous adjusted
    255 steps. No grey loss
    Out of control point<1/10000
    Working hours≥72hours
    Mean Time Between Failure>5000hours
    Life time100000hours
    Life-all-white(brightness halving)50000hours
    Environment temperature rangeOperating temperature range: -20-45℃
    Self-check technologyLED spot self-check, communications check, power check,
    temperature monitor(need customization)
    Remote monitoringRemote supervision and control, record potential fault,
    send out warning signs to the operators.(need customization)
    Software environmentWindowsNT,Windows1999,WindowsXP
    Luminous point width between centresDeviation<3%
    Brightness uniformity<10%
    Color uniformity(chromaticity coordinate)±0.003
    Power supply requestAC85-264V(50Hz-60Hz)
    Contrast(1000:1)
    System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working)working:10-95%
    Humidity(storing)storing:10-95%

    Why not choose GOB?

    Let me explain a little bit about GOB. GOB stands for glue on board, a recently popular technology that is used for SMD protections by filling certain glue on the PCB board and form a certain barrier for the SMDs. It’s clear, and won’t affect the lights of the SMD. I accidently dropped a couple a LED panels, (tell me I’m not the only one who did this!) and luckily, they were GOB modules, guess what, after testing, those panels were just as perfect as always Besides, the highest protection from the glue, another thing wonderful about the GOB is that it made the cleaning of the surface even easier, wipe it with slighting wet cloth. Many people may have concerns about how to repair the bad SMDs? I’ll say, it’s not rocket science, a technician can do it easily as repairing other SMDs, just requires a couple of steps of digging and filling the glue. GOB would be perfect for the pitch options stars from around 1.667mm or above.

    200x150mm Module GOB Screen P1.667 Full Color LED Message Boards Advertising And Shopping Malls200x150mm Module GOB Screen P1.667 Full Color LED Message Boards Advertising And Shopping Malls200x150mm Module GOB Screen P1.667 Full Color LED Message Boards Advertising And Shopping Malls

    200x150mm Module GOB Screen P1.667 Full Color LED Message Boards Advertising And Shopping Malls


    Packaging & Shipping:

    1.Customized Packaging. Flight boxes, wooden boxes and cartons. We can also help you print logos on the boxes and products.


    2.We offer a substitute shipping service. To ensure that you receive your order duty free at the time of import, we will declare a lower value.


    3. For regular standard cabinet orders, we can ship within 1-2 working days after receiving your sample confirmation and payment; for large customized OEM orders: we need longer time, about 15-25 working days after receiving your sample confirmation.



    FAQ:

    Q1: What's the warranty of your LED Display Screen ?

    A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps.

    Q2: What about your pre-sale service and post-sale service?

    A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!
    For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts.
    Also, we can send technicians to your country to solve problems. Mostly, our led display will not have big problems within warranty time!

    Q3: Whats your payment term? How long it takes to delivery?

    A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.
    Our average Production time is 16 days, after receiving the deposit.

    Q4: What's the control system?

    A4: For synchronization control: We use Nova, Linsn Or Colorlight control system.
    For asynchronous control: We use ONBON or XIXUN control system.

    Q5: How can you ensure the led display product quality?

    A5: Our led display screen quality is our core competence, for 8 years, what we rely on.
    We have each standard process to make quality products.
    If any quality failures within warranty time, we will refund you .


    Welcome to visit our website and inquire us more info,waiting for you all the time!!!
