Die-Cast Aluminum Cabinet P2.5 LED Stage Curtain HD No-Smear Screen led stage screen rental

Shenzhen ShiXin Display Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Die-Cast Aluminum Cabinet P2.5 LED Stage Curtain HD No-Smear Screen led stage screen rental from wholesalers

    Buy cheap Die-Cast Aluminum Cabinet P2.5 LED Stage Curtain HD No-Smear Screen led stage screen rental from wholesalers
    • Buy cheap Die-Cast Aluminum Cabinet P2.5 LED Stage Curtain HD No-Smear Screen led stage screen rental from wholesalers
    • Buy cheap Die-Cast Aluminum Cabinet P2.5 LED Stage Curtain HD No-Smear Screen led stage screen rental from wholesalers
    • Buy cheap Die-Cast Aluminum Cabinet P2.5 LED Stage Curtain HD No-Smear Screen led stage screen rental from wholesalers
    • Buy cheap Die-Cast Aluminum Cabinet P2.5 LED Stage Curtain HD No-Smear Screen led stage screen rental from wholesalers

    Die-Cast Aluminum Cabinet P2.5 LED Stage Curtain HD No-Smear Screen led stage screen rental

    Ask Lasest Price
    Brand Name : SCXK
    Model Number : P2.5
    Certification : CE,ROHS,FCC,SASO
    Price : USD 2000-1000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 sqm per month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    Die-Cast Aluminum Cabinet P2.5 LED Stage Curtain HD No-Smear Screen led stage screen rental

    Reliable quality indoor P2.5 stage led display with 640*640mm cabinet die casting aluminum cabinet led screen over 3840h


    Product Description


    1. Black lamp body and SMT led encapsulation technology confirm the high brightness and wide view angle

    2. Cabinet made with Aluminum material ensure light weight and good heat dissipation

    3. Small panel size of 640×640mm and with thickness of 60mm only,can be picked up by one hand

    4. Packed with flight cases,keep good packing and safe condition,convenient to move and transport

    5. With fast locks and aviation plugs,easy to combine and quick to install and dismantle

    6. Seamless splicing,high definition and good performanc


    7. The first level LED chip from Taiwan Epistar


    8. With pure golden wire connection in LED


    9. Grand A row material for module frame and mask

    10. MBI 5153 IC over 3840hz refresh rate


    Pamameter


    Module Parameters
    Pixel Pitch2.5mm
    Pixel Configuration1R1G1B
    Density160000 pixels/sqm
    LED LampSMD2121
    Module Size160*160mm
    Module Resolution(W)64Pixels * (H)64Pixels
    Working VoltageDC5V
    Scan Mode1/32 Scan
    Drive ICMBI5124(Can be customized)
    Port TypeHUB75
    Screen Parameters
    Cabinet Size(W)640*(H)640mm
    Cabinet MaterialDie-casting aluminum
    Cabinet Weight5.76KG
    Cabinet Resolution256*256 Pixels
    Module Qty16pcs
    Power Supply200W
    Working VoltageAC220V±10%
    Max Power Consumption600W/sqm
    Ave Power Consumption200W/sqm
    Brightness800 Nits
    Refresh Rate3840Hz
    Frame Frequency60Hz
    Grey Scale14 bit
    Brightness Level256 levels
    Best View Distance2.5M-50M
    View Angle120°(Horizontal); 120°(Vertical)
    Protection DegreeIP30
    Working Temperature-20℃ ~ +60℃
    Relative Humidity10%-95%
    Operation systemWIN7/WIN8
    Control MethodSynchronous or Asynchronous
    Control SystemNovaStar
    Receiving CardMRV336
    Control Distance100M(Ethernet cable); 20KM(Optical fiber cable)
    Input SignalComposite Video, S-video, DVI, HDMI, SDI, HD-SDI
    Out-of-Control Pixel Rate≤0.01%

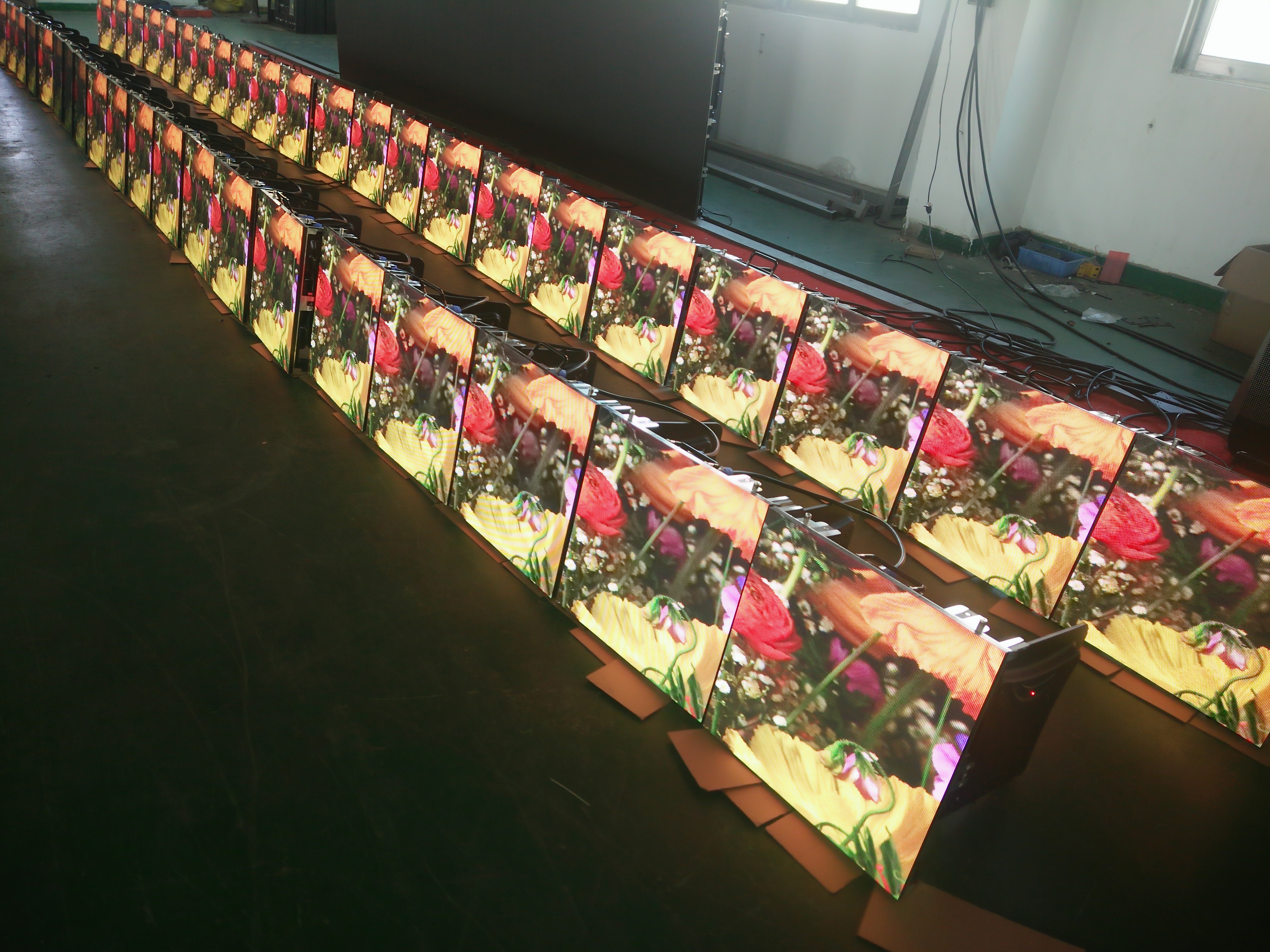

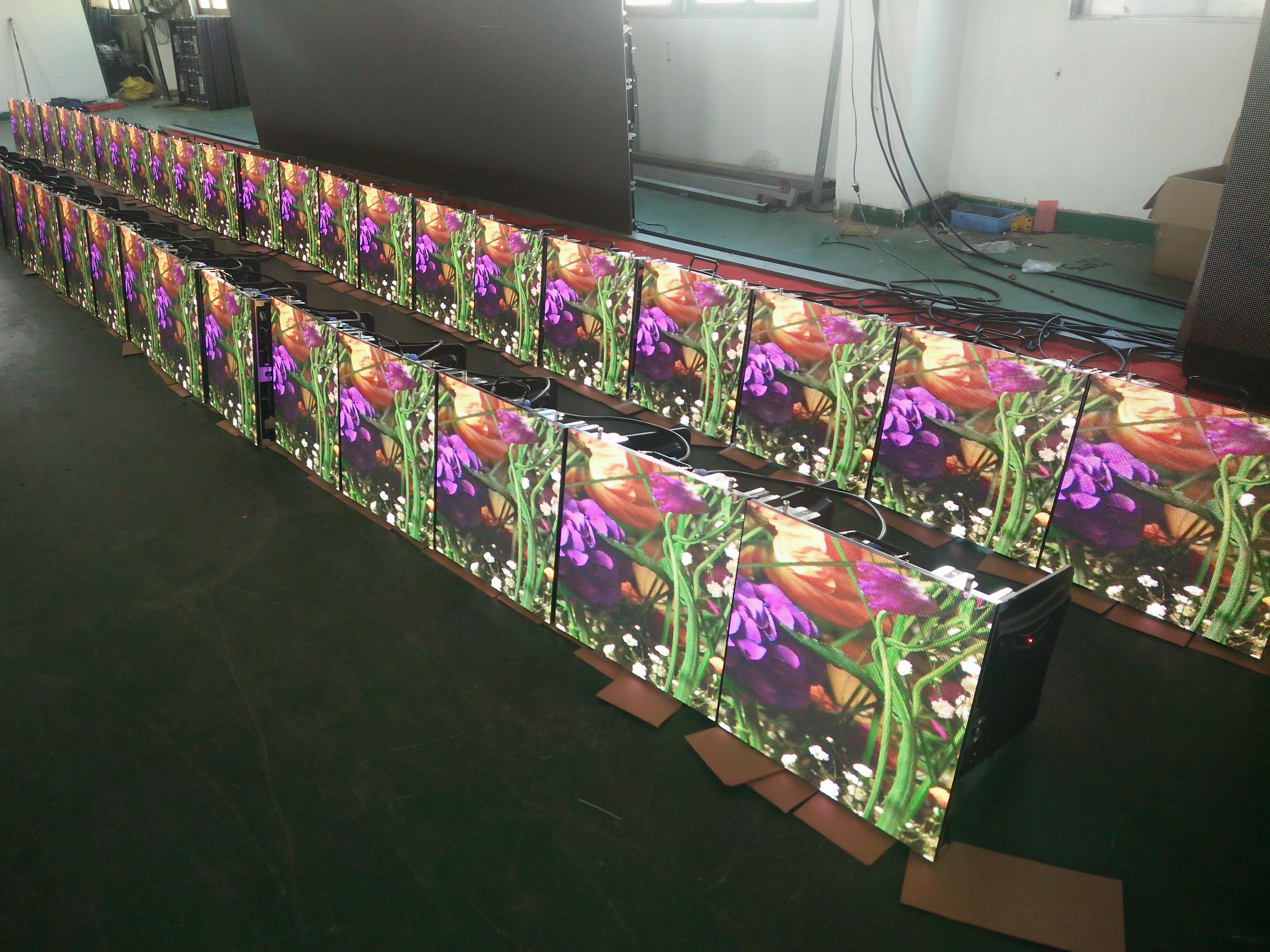

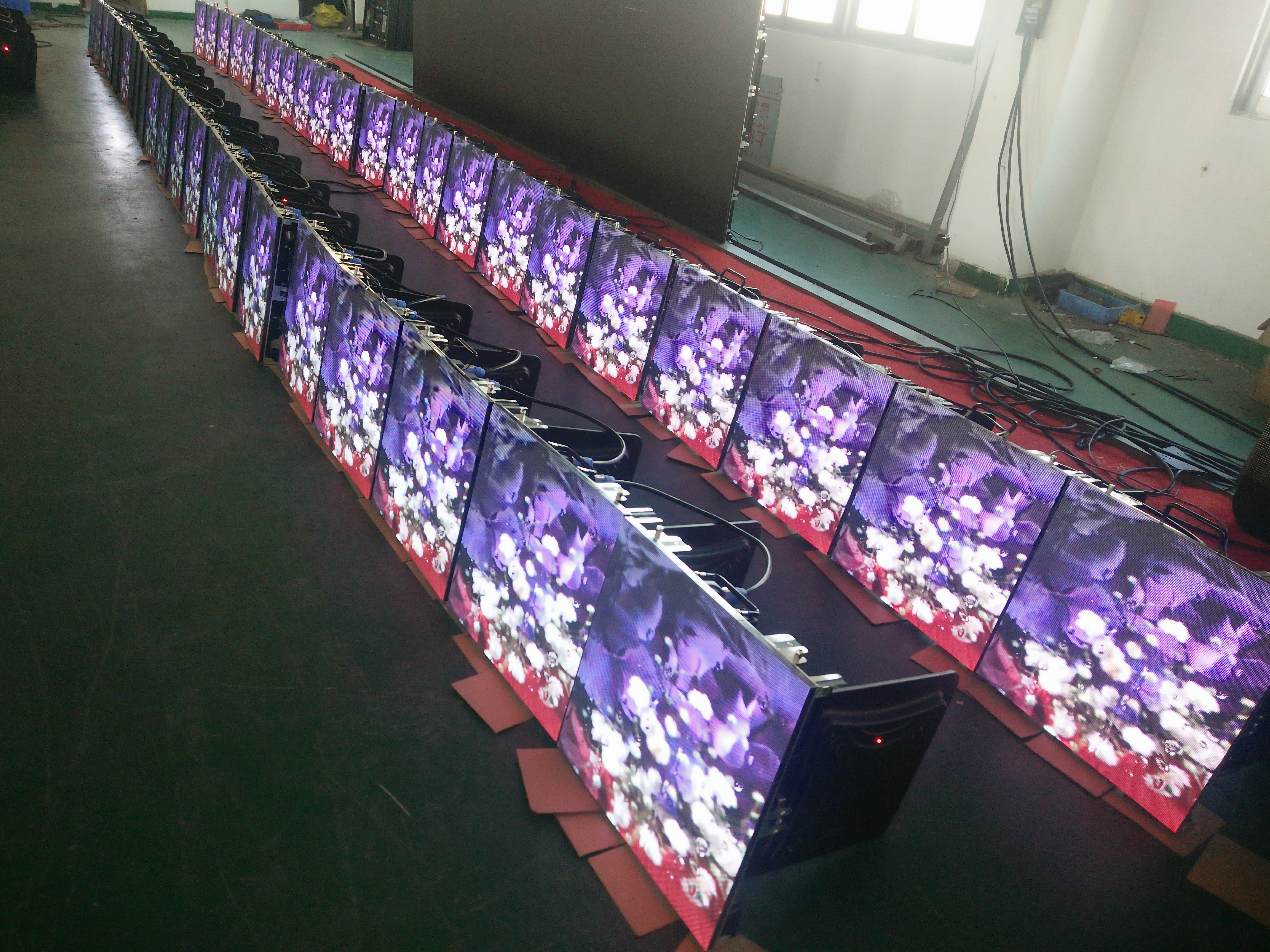

    Detailed Picture






    Our Service


    1)Your inquiry related to our products or price will be replied in 24hrs


    2)OEM&ODM,any your customized lightings we can help you to design and put into product


    3)Distributoership are offered for your unique design and some our current models


    4)Protection of your sales area,ideas of design and all your private information


    5)Top Quality+Reasonable Price+Responsible After Service=Successful & Win


    Trade Terms


    1.Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying


    2.Shipping freight are quoted under your requests


    3.Shipping port:ShenZhen,Mainland China


    4.MOQ: 1sqm
