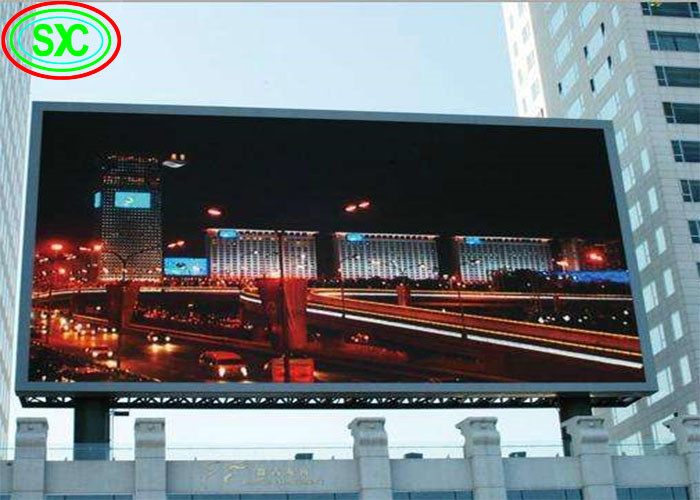

P3 P4 P5 P6 P10 Smd Led Display Display Modules,Video Outdoor Smd
Led Billboard For Advertising
Products function introduction:
1) High brightness, can adjust brightness according to the
environment to meet customer needs.
2) Best visual quality, perfect solution to mosaic and flickering
problems, good light consistency
3) Graphics and text, clear, delicate and realistic display effect.
LED curtain screen
4) Horizontal viewing angle can reach 110 degrees, vertical viewing
angle can reach 60 degrees
5) Each LED lamp can be repaired, low maintenance cost, convenient
maintenance, after-sales problem solving without delay.
6) Commonly used in sports, advertising, banks, stock exchanges,
stations, ports, indoor P6 display screens, etc.
Our service:
1.Your inquiry related to our products or prices will be replied in
24hrs.
2.Well-trained and experienced staffs to answer all your enquires
in fluent English .
3.OEM&ODM, any your customized screen we can help you to design
and put into product.
4.Distributoer ship are offered for your unique design and some our
current models .
5.Protection of your sales area, ideas of design and all your
private information
Sepcification:
| P10 Advertising LED Sign Dislplay |
| Resolution/mm | 10 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 10000/square meter |
| Module resolution | 32x16 |
| Module size/mm | 320x1601MM |
| View distance | 14-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >7500cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/4 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | >600Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Our results:
Our company:
Shenzhen ShiChuangXin Ke Electronic Co.,Ltd is a high-tech enterprise integrating R&D, design, production,
marketing and after-sales service of LED displays.
We can offer all types of indoor and outdoor led display, and it's
videly used in banking, communicatins offices, electric power
industry, traffic, stadiums and sporting area, business plaza,
entertainment for the applications of advertising, sports,event,
stock/ sport news ticker, message center, price etc. The basic LED
cabinet are easier for customers' installation and maintenance to
meet the market requirement.
We are also renowned for building custom LED Display that will meet
your unique and specific need. More importantly, we are committed
to providing quality products at competitive prices and superior
customer services. With the quality management sustem ISO9001, the
strong R&D and manufacturing group, SCXK became one of the
leading companies or LED display industry in Shenzhen.
Normal questions:
Q1: What's the pixel pitch for choice?
A1: Indoor series: P1.25, P1.56, P1.667,
p1.875,p2,p2.5,p2.6,p3,p3.91,p4
Outdoor series: P4.8, P5.9 MG5 outdoor series: P5.9, P6.9, P7.8,
P8.9, P10.4
Q2: Where is it used for?
A2: Performance shows, sports activities, advertising, information
publishing, celebrating activities, hotel entertainment ect.
One type realize Multi Function for creative stage led screen,
advertising led screen, sky backdrop curtain, stadium screen, dance
floor and Outdoor screen for indoor use.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with several different
controlling systems,such as Nova, Mooncell,linsn and so on.
Q4: What after service can provide?
A5: One year warranty, 24h online technical support, back-visiting customer for each year
Sending technical personnel to the scene in customers significant
activities
Welcome to visit our website and inquire us more info,waiting for
you all the time!!!
