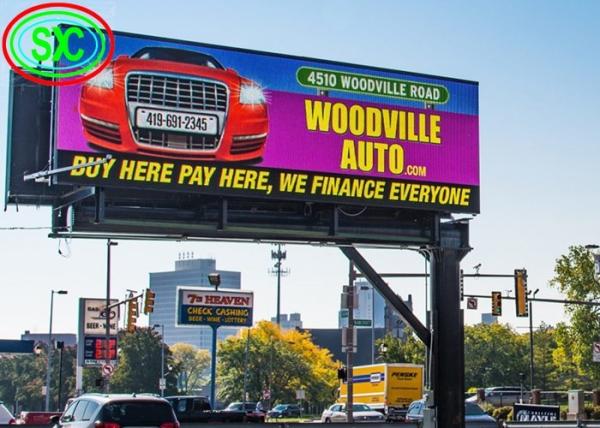

Epistar Chip Outdoor LED display P6 led advertising screen panel
Quick details
It can be used on the shopping mall,bank, bus station, train
station, center of downtown, airport, school, factory, bus, taxi,
and so on.
we adopt many methods and very good after-sales service to sell our
product all over the world.. Whenever and wherever we are ,
we always take the principle that professional makes good quality,
provide the perfect product and service for our customer.
Especially,our led display die cast aluminum cabinet is good for
rental ,stage usage.Very slight and easy for convenience.
Specification as follows
| LED Lamps | Type | SMD2727(High Brightness LEDs) |
| LED Standard | Real Pixel(1R1G1B) |
| Red Wavelength | 625-630nm |
| Green Wavelength | 515-530nm |
| Blue Wavelength | 465-475nm |
| LED Module | Pixel Pitch | 6mm |
| Module Size | 320mm x160mm |
| Module Resolution | 64*32dots |
| LED Cabinet | Cabinet Size | 960mmx960mm |
| Cabinet Resolution | 128dotsx128dots |
| Cabinets Material | iron and steel cabinet |
| LED Display | Pixel Density | 62500pixels/sq.m |
| Drive IC | MBI5024 |
| Power Supply | Series connection |
| Brightness | >2000cd/sqm |
| Display Color | 16.7million |
| Viewing Angle | 160°(Horizontal),110°(Vertical) |
| Best Viewing Distance | 6m~200m |
| Max Power Consumption | 1000 w/sq.m |
| Average Power Consumption | | | 300 w/sq.m |
| Weight | 22kgs/sq.m |
| Refresh Rate | 2500hz |
| Input Voltage | AC220V/50H or AC110V/60H |
| Output Voltage | DC5V,40A |
| Grey Scale Levels | 16bit |
| Display Colors | R(1024) x G(1024) x B(1024) |
| MTBF | 10,000 hours |
| Life-span | 100,000 hours |
| Protection Level | IP65 |
| Failure percentage of leds | | | less than 0.0003 |
| Working Temperature | -25℃-60℃ |
| Drive Mode | 1/32 scaning |
| Working Humidity | 10%~99% |
| Control System | Control method | Synchronization & Asynchronization |
| Control System | (software) Led studio |
| Software | LED studio |
| Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc |
| PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vista |
Competitive advantage
Led moduel we have
| Indoor outdoor full color SMD 3 in 1 led display |
| P2 Iron cabinet | 1/32scan | 256x128 | 128x64dots | 250000dots | 512x512 | $1,905.50 | wooden packaged |
| P2 die cast aluminum | 1/32scan | 256x128 | 128x64dots | 250000dots | 512x512 | $2,301.50 | flight case package |
| P2.5 Iron cabinet | 1/16scan | 160x160 | 64x64dots | 160000dots | 640x640 | $1,111.50 | wooden packaged |
| P2.5 die cast aluminum cabinet | 1/16scan | 160x160 | 64x64dots | 160000dots | 480x480 | $1,195.50 | flight case package |
| P3 Iron cabinet | 1/32scan | 192x192 | 64x64dots | 111111dots | 576x576 | $795.50 | wooden packaged |
| P3 die cast aluminum cabinet | 1/32scan | 192x192 | 64x64dots | 111111dots | 576x576 | $842.50 | flight case package |
| P3.91 Die cast aluminum (smd) | 1/16scan | 250X250 | 64x64dots | 65410 dots | 500X500 | $795.50 | flight case package |
| P4 iron cabinet(smd) | 1/16scan | 256X128 | 64x32dots | 62500dots | 768x768 | $603.50 | wooden packaged |
| P4 die cast aluminum cabinet (smd) | 1/16scan | 256x128 | 64X32dost | 62500dots | 512x512 | $655.50 | flight case package |
| P5 Iron cabinet | 1/16scan | 320x160 | 64x32dots | 40000dots | 640x640 | $480.50 | wooden packaged |
| P5 die cast aluminum cabinet | 1/16scan | 320X160 | 64X32dots | 40000dots | 640x640 | $555.50 | flight case package |
| P6 iron cabinet | 1/16scan | 384x192 | 64X32dost | 27777 dots | 768x768 | $398.50 | wooden packaged |
| P6 die cast aluminum cabinet | 1/16scan | 192X192 | 32x32dots | 27777dots | 576x576 | $478.50 | flight case package |
| p10 iron cabinet | 1/8scan | 320x160 | 32x16dots | 10000dots | 960x960 | $350.50 | wooden packaged |
| All the pricelist include the control system,3 years warranty!(we
will send some spare parts based on your order |
For post-sale service. We can instruct you how to use, adjust the
screens, and change the boken modules with spare parts. For
asynchronous control We use Onbon, or Xixun control system.
Applications:

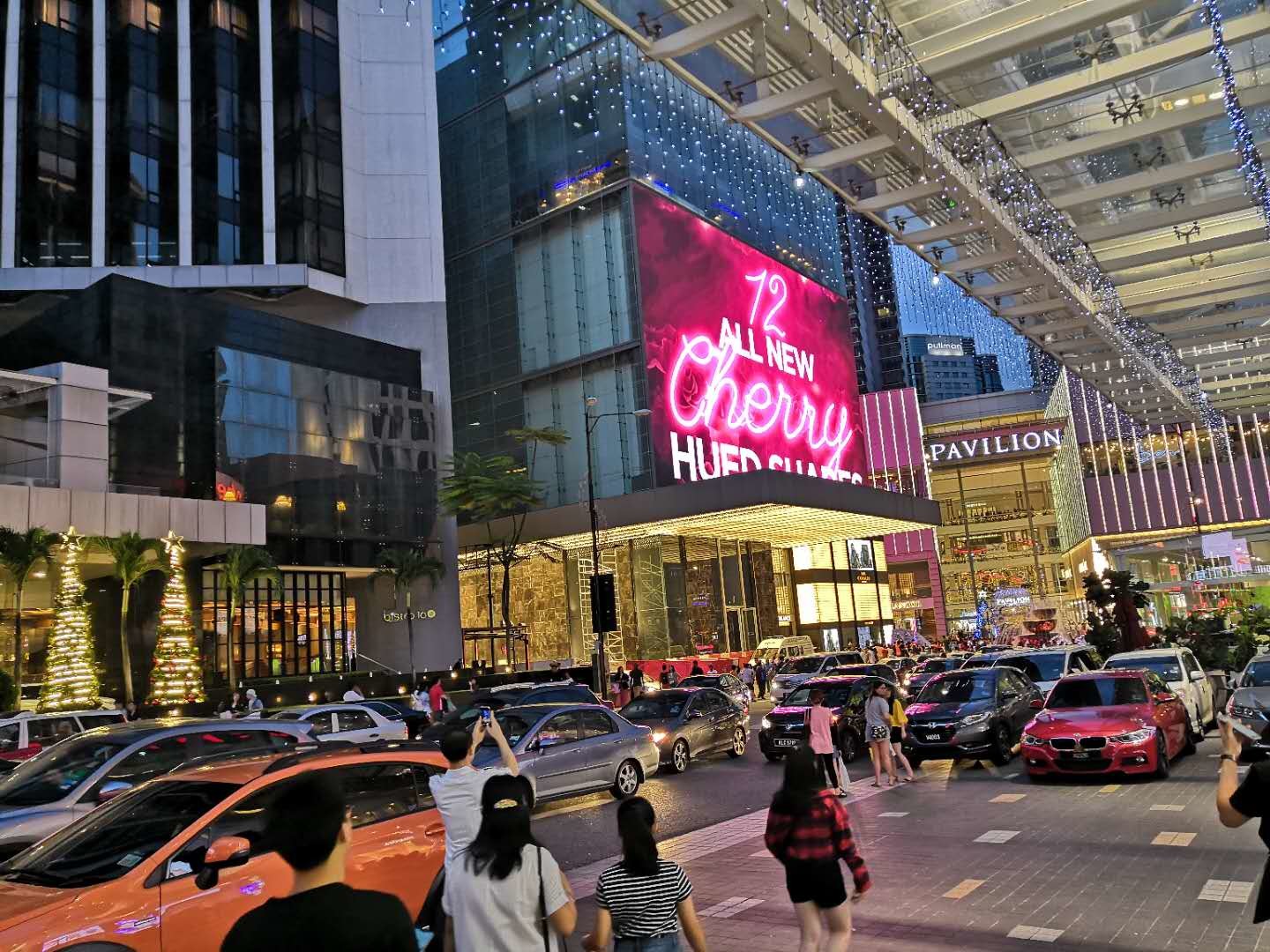

Airport Full Color Indoor LED displays
Train station Indoor Full Color LED Displays
Entertainment Bar Indoor Full Color LED Screen
Stadium Indoor Full Color LED Display
Museum Full Color Indoor LED display
Car exhibition LED display
Conference room Indoor Full Color LED Video Display
Shopping Mall Indoor Full Color LED display
FAQ
Q1. What's the warranty of your LED Display Screen ?
A1. We have a 3-years warranty for our led display screen, and
100,000 hours life span of the led lamps.
Q2. What about your pre-sale service and post-sale service?
A2. For pre-sale service. We have a professional sales team and a 8
years technical team who are willing to answer your question 24/7.
We can offer a whole complete solution for your project!
For post-sale service. We can instruct you how to use, adjust the
screens, and change the boken modules with spare parts.
Also, we can send technicals to your country to solve problems.
Mostly, our led display will not have big problems within warranty
time!
