Transparent LED screen features:
1. The transparent LED screen is also called the LED glass curtain
wall screen; the transparent screen unit modules can be hoisted,
stacked, and can be spliced into a large area according to the size
of the installation location.
2. It is a new product developed based on the traditional LED
display, which consists of a single LED strip;
3. High transparency; the transparency is 60%～80%, the transparency
is high, and it has little effect on the lighting of the building;
4. Good heat dissipation performance and light weight;
5. Suitable for building facades, suitable for installation in
front of glass curtain walls.
6. Light weight, ultra-thin, convenient installation and
maintenance, no structure, cost saving and efficiency improvement.
7. Optional maintenance before or after the screen increases the
adaptability to installation conditions;
| 1. Display | angle of 130 degrees, light mixing uniformity, color matching
degree is high, good consistency, clearer display true, fully meet
the needs of outdoor display |
| 2. Energy consumption | a positive response to the national policy of energy saving by 4.5,
switching power supply, power consumption can save 10%; |
| 3. Structure | the bottom shell adopts the reinforcing rib design of quasi
construction engineering mechanics, enhance the bearing tensile
ability of products and improve the overall smoothness of the mask;
the calculation precision with stripe design, greatly reducing the
environmental problems due to light reflection on the interference
caused by the lamp light, ensure contrast products in a variety of
ambient light the degree is the best, the whole screen is more
black ink, better contrast, more realistic image color reduction. |
| 4. Circuit | high performance "wig" program for PCB layout design, can
effectively control the voltage peak overshoot, the maximum
extension of the tube, chips and other components of the life; with
power supply, general signal interface, not affected by any
geographical and environment control system and other factors, for
to be able to easily display various types of connection and
installation and operation |
| 5. Protection | the positive use of special conductive silicone encapsulant, on the
back of three spraying paint protection, double waterproof
protection, making the product more weatherability, heat faster;
the drainage hole of the unique design, reduce the water causes
damage to the module module due to defects of steel structure,
improve the module of self-protection, further to protect the life
of display screen |
| 6.use | compared to outdoor full color products, outdoor SMD S series
products lighter, for maintenance, assembly, transport and later
brought convenient and time-saving |

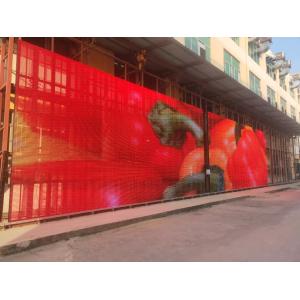

Our case
Advantage
1. High Degree of Visibility
65% transparent see-through, so it is convenient for people inside
and outside to look-through. The integreted LED lamps are ery tiny
and almost invisible from outside of the building.
2. Compact Design and Light Weight
8mm thickness of the LED panel has it almost suitable for any glass
wall building. The weight is only 12kg/sqm and minimizes the load
to the glass wall.
3. Ease of the Installation and Maintenance
Our Glass LED Display No need to change any building structure. The
modules can be stuck to the back of the glass wall by the special
glue which presented by us. It needs only 10 second to install one
module. Should any maintence occurs, it only requires to do it at
the indoor.We also have P7.82-7.82, P5.2-P10.4, P7.82-P7.82, P10.4-P10.4
Product Description
| Pixel Pitch | 3.91mm-7.82mm |
| Pixel Density | 32768dots/sqm |
| Color Configuration | 1R1G1B |
| LED Package | SMD2121 |
| Module Size | 500mm x 125mm |
| Module Resolution | 128 x 16 |
| Drive Mode | 1/16 Scan, Constant Current |
| Standard Cabinet Size | 500mm x 1000mm or 1000mmx1000mm |
| Cabinet Weight | 7KG / 14KG |
| Brightness | >1000cd/sqm |
| Viewing Distance | 3m-80m |
| Viewing Angle | H: 120°; V:120° |
| Refresh Rate | 1920HZ |
| Frame Rate | 120frame/sec |
| Grey Scale | 16.7M colors(Synchronized) |
| Power Input | AC110V/ 220V ±10, 50HZ |
| Max Power Consumption | 450W/sqm |
| Ave. Power Consumption | 150W/sqm |
| Storage Temperature | -30~+70 degree |
| Working Temperature | -20~+50 degree |
| Blind Spot Rate | <1/10000 |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof | IP30 |
Company Information
Shenzhen ShiChuangXinKe Electronics Co.,Ltd (SCX LED) is a high & new technology enterprise. We are
specialized in high quality LED components, LED displays products
including research, development, production and marketing.
Experienced with many years of development, nowadays SCX LED owns
its factory workshop area about 3,000sqm, monthly capacity is
2,000sqm, number of employees more than 100. Company has the
international first-class technology development talents and
advanced production equipments, a comprehensive standardized
management and perfect production process.
FAQ
Q1: Are you the manufacturer or trading company? and where is your
factory?
A: we are professional manufacturer devote in producing Led
outdoor, Led indoor display, rental display, stadium screen,
advertising screen and stage screen etc. You are warmly welcome to
visit our factory to learn the technical and maintenance skills and
everything you need in our factory.
Q2:May be we will need some samples, what is the lead time of
samples and lead time of order?
A2:We will arrange your sample of the charges within 3-5 days and
arrange your order within 15-20 days after receiving your salary.
Q3:How could us arrange order?
A:pls send your inquiry to us--click the "send" in below, then let
us confirm all details, you can click "start order" in above,
or we send you order link for your payment.
Q4:Which payment method does your company accept?
A:We support T/T or Trade Assurance. For more payment methods,
please contact our customer service.
Q5:If have quality problems, how do you solve them?
A:Please provide relevant videos and photos within one month of
receipt of the shipment. We will verify it at first. If it is
really quality problem, we will work with the engineer to assist
you in solving the problem. If we cannot solve it, we will give
you a refund or resend you new one for free, but we will not bear
the freight.
