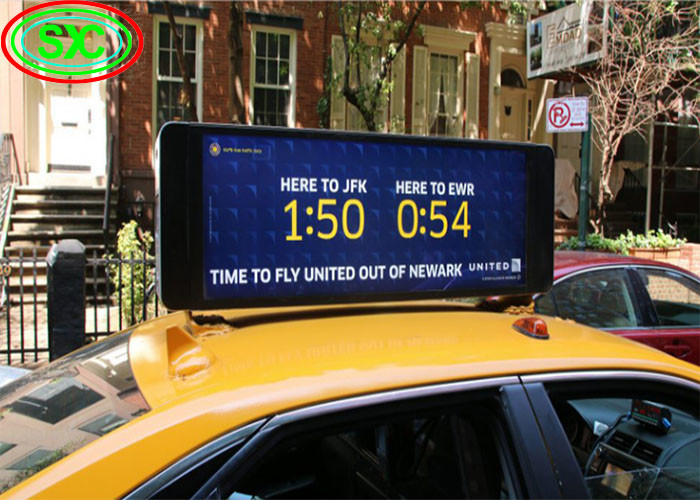

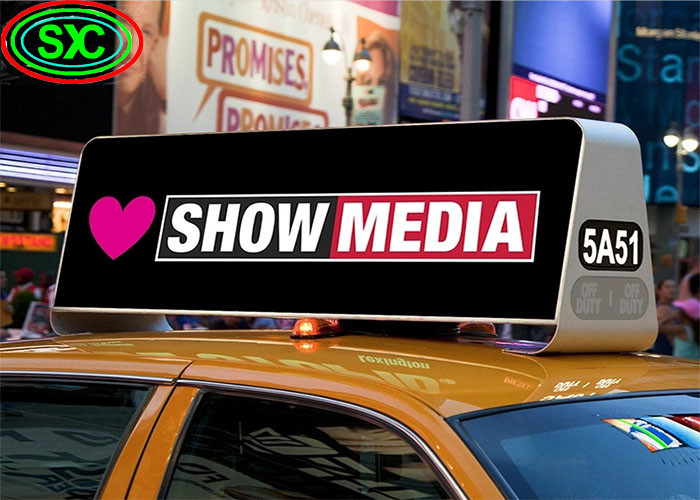

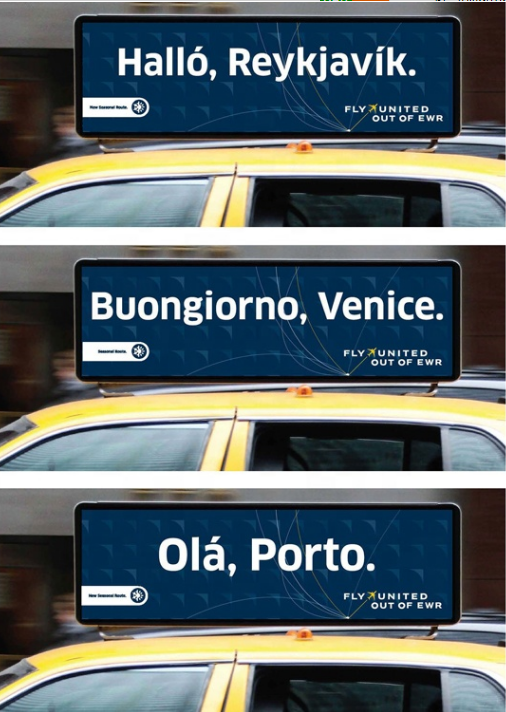

P5 Taxi Top Car LED Digital Display HD Full Color 3G 4G WIFI GPS
Advertising Billboard Outdoor
*Product Description
We have excellent research and development department and after
sell service workers, and independent design ability. Our main
products include led single color display, indoor full color led
display screen, led display, outdoor full-color led to wireless car
use screen, etc. Can be used for shopping, banking, bus station,
railway stations, urban centers, airports, schools, factories, bus,
taxi, and so on. We have many methods and excellent after sell
service to sell our products all over the world. Anywhere, we
always take the principle is:Specializing in the production of good
quality, good price products market, to provide perfect products
and services for our customers.
*Products Application:
1. Public places: subways, airports, bookstores, exhibition halls,
gymnasiums, museums, conference centers, talent markets, lottery
centers, etc.
2. Entertainment places: cinemas, fitness centers, resorts, KTVs,
Internet cafes, beauty salons, golf courses, etc.
3. Financial institutions: banks, securities/funds/insurance
companies, etc.
4. Commercial institutions: supermarkets, shopping malls, specialty
stores, chain stores, 4S stores, hotels, restaurants, travel
agencies, pharmacies, etc.
5. Public services: hospitals, schools, telecommunications, post
offices, etc.
6. Real estate: apartments, villas, office buildings, commercial
office buildings, model houses, sales offices, elevator entrances,
etc.
*Specifications :
| outdoor SMD P5 |
| Resolution/mm | 5 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 4000/m² |
| Module resolution | 64x32 |
| Module size/mm | 320x160mm |
| View distance | 14-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >7500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
*Our Services
1. Our experienced and professional engineers and staff will
provide you with personalized solutions.
2. All our parts have a warranty period of 24 months.
3. We guarantee that each device is carefully tested before
shipment to ensure good operation. We strive to achieve 100%
customer satisfaction in every sale.
4. During the warranty period, we can repair or replace the faulty
parts free of charge; after the warranty period, we will repair the
faulty parts and charge the cost of the parts.
5. After receiving the package, please open it for inspection
before signing. If there is any damage, please ask the courier for
a "Damage Certificate". 6. If you have any questions, please
contact us by email or contact the trade manager, and we will reply
to your email within 12 working hours.
*Our results:
*Package and Delivery:
Welcome to visit our website and inquire us more info,waiting for
you all the time!!!
