    RGB 3 In 1 Full Color Led Display Board , Full Color Led Signs 5000cd/m² Brightness

    Ask Lasest Price
    Brand Name : SCXK
    Model Number : P10
    Certification : CE/ROHS/FCC/ISO/UL
    Price : negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 5000sqm per month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    RGB 3 In 1 Full Color Led Display Board , Full Color Led Signs 5000cd/m² Brightness

    p10 Dle casting Aluminum 320*160m outdoor led panel full color


    Application

    --- Outdoor and indoor advertising, digital billboards, advertising companies
    --- Sports halls, fields, playgrounds,school church
    --- Airports, bus stations and railway passenger terminals.
    --- Facades of shopping malls, department stores, banks and car dealerships.
    --- Architecture and social projects, information systems in cities.
    --- Show-business, concerts, festivals, motor shows and other public events.

    Proudct specification

    SMD P10
    Lamp size3535
    Resolution/mm10
    Pixel configurationRGB 3 in 1
    Pixel density/pixels/m²10000/m²
    Module resolution32x16
    Module size/mm320x160
    View distance≥8m
    Single point brightness adjustCan be added
    Single point color adjustCan be added
    White balance brightness>8000cd/㎡
    Color temperature6500K-9500K
    Horizontal view angle120(degrees)
    Vertical view angle60(degrees)
    Signal Process bit10 or 14 bit
    Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distancesInternet cable:100m, multimembrane:500m, monofilm:5km
    Driving modeConstant driving current
    Scanning mode1/4
    Frame rate60Hz
    Refresh frequency>1200Hz
    Control modeComputer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point<1/10000
    Working hours≥72hours
    Mean Time Between Failure>5000hours
    Life time100000hours
    Life-all-white(brightness halving)50000hours
    Environment temperature rangeOperating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡<750W
    Average power:/㎡<280W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environmentWindowsNT,Windows1999,WindowsXP
    Luminous point width between centresDeviation<3%
    Brightness uniformity<10%
    Color uniformity(chromaticity coordinate)±0.003
    Power supply requestAC85-264V(50Hz-60Hz)
    Contrast(1000:1)
    System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working)working:10-95%
    Humidity(storing)storing:10-95%

    Product overviews
    ItemsIndoor Led display:
    P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
    Outdoor Led display:
    P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
    Dance floor led display
    DJ led screen
    Transparent led display
    Materialsteel,aluminum ,die casting aluminum
    CertificatesCE, FCC,RoHS, CCC, UL
    Payment
    terms
    30% deposit before production, 70% balance before shipping
    T/T
    Western Union
    Packing:Standard Export Carton with fully Polyfoam or Pearl Wool
    Flight case;
    Anti-shaking wooden case
    Shipping:5 to 7 working days upon receiving deposit payment
    After-Sales-Service:Lifetime with professional engineer support for free.
    Within 5 year, supply spare parts for free if has quality problem
    ( not by man-made damage)
    Using RangeShopping mall,bank,bus station, train station,
    center of downtown, airport, school, factory, bus, taxi,and so on.

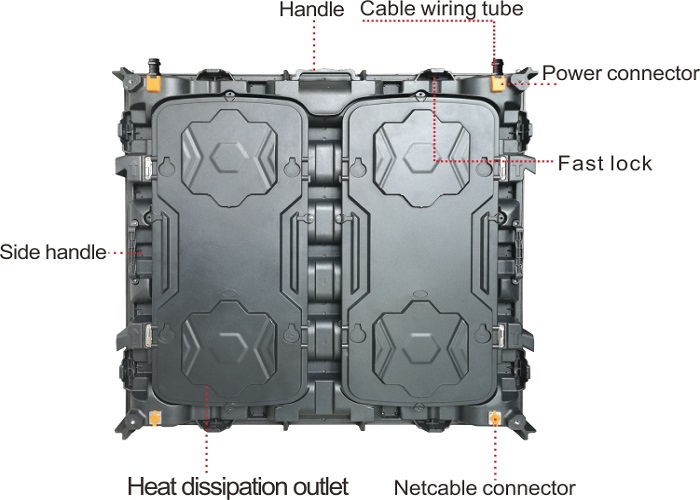

    Cabinet photo
