Top quality high refresh rate black SMD Indoor HD P2.5 Led Panel ,
Led Screen P2.5 P2 Led Video Wall For TV Studio
Features
1) Front and rear maintenance are optional, realizing front and
rear maintenance of modules, power supplies, and receiving cards,
saving your maintenance costs.
2) Using top-level high-brightness and low-power LED lights, energy
saving ≥30%. If 28 major patented technologies are adopted, the
whole machine energy saving ≥50%, green and environmentally
friendly. The first outdoor mature high-definition LED display,
various advanced technical indicators are 2 years ahead of the
industry, and a global success case.
3) The core technology adopts the Black King Kong series dual
maintenance, providing free background maintenance paths to adapt
to various installation environments. Broadcast-level color
gradation, color temperature and brightness are intelligently
adjustable, the color is delicate, the color rendering rate is
high, and the picture is natural.
Specifications
| Value | SCX 2.5 | SCX 3 | SCX 4 |
| Pixel pitch (mm) | 2.5 | 3 | 4 |
| Pixel configuration | SMD | SMD | SMD |
| Brightness (nits) | 1000 | 1000 | 800 |
| Grey scale ( level ) | 16384 | 16384 | 16384 |
| Pixel Matrix Per Panel | 192 x 192 | 160 x 160 | 120 x 120 |
| Pixel Matrix Per Sq.m | 160000 | 111111 | 62500 |
| Viewing Angle (H/V) | 160 / 160 | 160 / 160 | 160 / 160 |
| Refresh rate (Hz) | ≥1920 | ≥1920 | ≥1920 |
| IP grade ( F / R) | IP40 / IP31 | IP40 / IP31 | IP40 / IP31 |
| Input voltage ( V ) | AC220V±10% | AC220V±10% | AC220V±10% |
| Power Consumption (Max / Avg) | 490 / 170 w/sq.m | 650 / 230 w/sq.m | 500 / 150 w/sq.m |

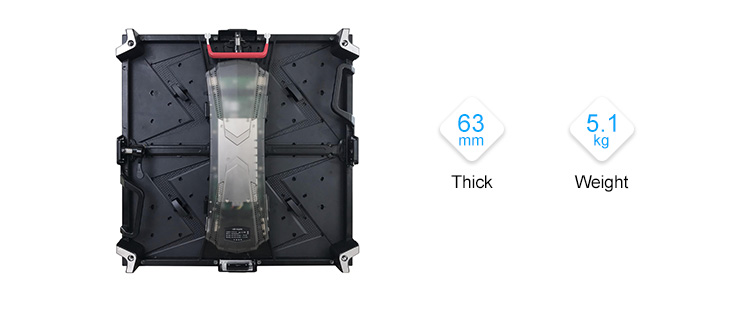

| Size (L x W x D mm) | 480x480x67 | 480x480x67 | 480x480x67 |
| Panel weight (Kgs) | 5.1 (Die-casting Alu.) | 5.1 (Die-casting Alu.) | 5.1 (Die-casting Alu.)
|
Product Details
Projects
Our Service
1. Warranty
1) We provide warranty of all components for 3 full years. During
this time, we will replace or repair our goods for free if there is
something wrong with them.
2) We will provide maintenance for a lifetime and charge for the
raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the
operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the
raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp
or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so
on.
2) We can also provide all kinds of certification such as CE, LVD,
RoHS and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and
some other expert suggestion.
2) We will send our engineers to your place if we are expected
after our negotiation.
6. Additional Service
1) We provide you the forwarding information, and some other
information such as flight box, structure
