SCX LED Full Color 640x640mm Indoor LED Display P2.5 LED Screen Die
Casting Aluminum Cabinet Rental LED Screen Display
Rental led display screen
1.This link is for P2.5 indoor full color led cabinets:
2.Including 1pcs receiving card.
3.module size is 160X160mm
4.Power supply: G-energy.
5.Stage,club,concert,church,led video wall,events.
6.Installation: Stand,hanging.
7.back service with screw(Optional: Front service with magnet).
You can also buy the flight case or sending card,LINSN,NOVA,video
processor,etc in our shop.
♦ Product specification
| indoor SMD P2.5 |
| Lamp size | 2121 |
| Resolution/mm | 2.5 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/sqm | 160000/sqm |
| Module resolution | 64x64 |
| Module size/mm | 160x160 |
| View distance | ≥1m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >2500cd/sqm |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/32 |
| Frame rate | 60Hz |
| Refresh frequency | >4200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/sqm | <900W |
| Average power:/sqm | <380W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

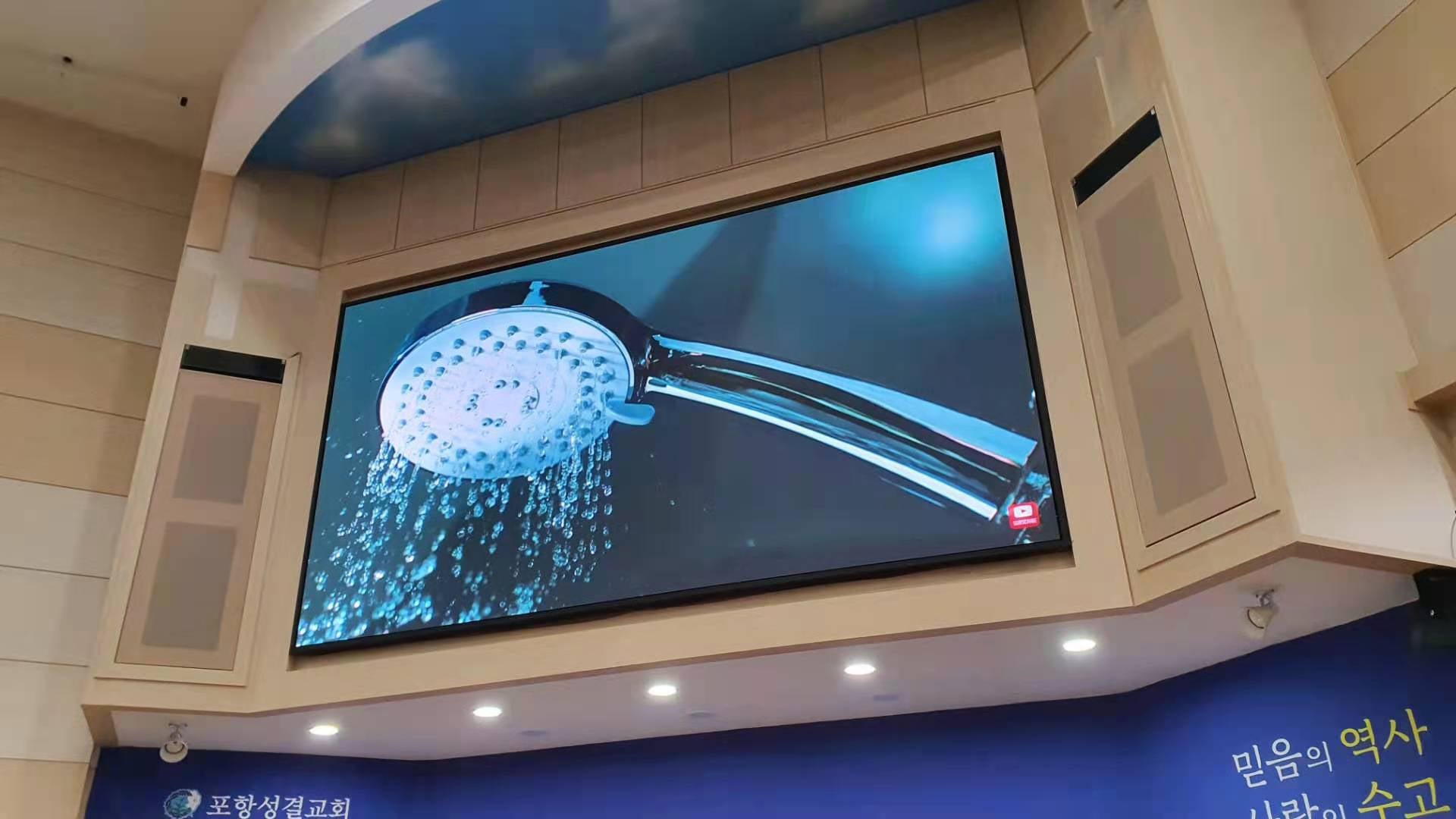

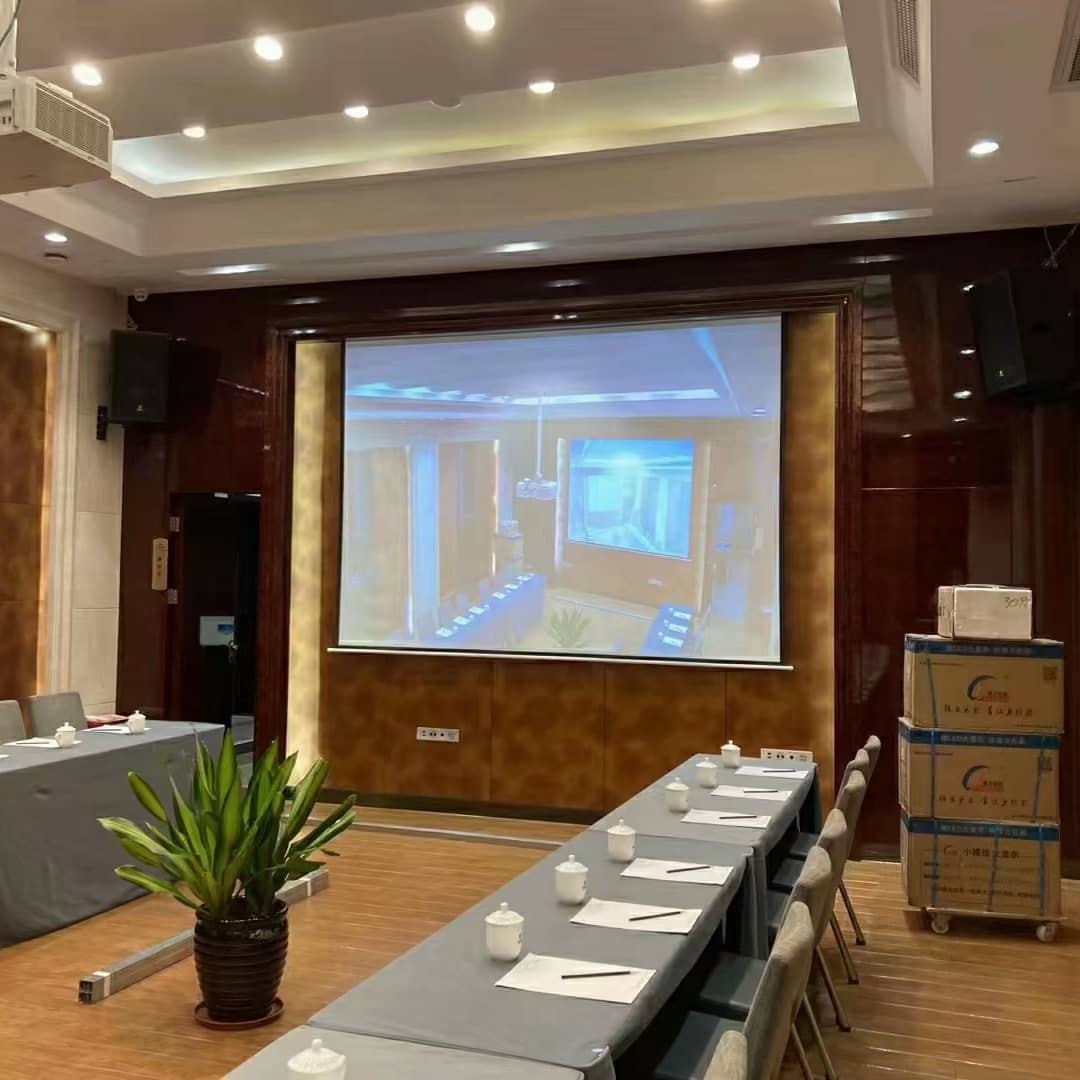

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
1. Delivery time: Accomplish manufacturing within7- 10 days after
receiving the deposit.
2.Before delivery, we will test the display, and keep it light up
for 72 hours, and check all the parts of the display to confirm it
is OK for delivery.
3.Package:(1)carton (2) anti-shaking wooden case (3) flight case
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
FAQ
Q1: When is the delivery time?
A1: we will accomplish manufacturing within 18-25 days after
receiving the deposit(Exclude time of weekend). If you need urgent,
please kindly let me know, in guaranteed of quality. we will try
our best to make faster.
Q2: What is the minimum order quantity
A2: MOQ is 1 panel,You are warmly welcome to try 1 or 2 panels for
sample, but usually clients will order 8 panels for checking
quality and compatibility.
Q3: What's the Payment terms?
A3: 30% deposit to start production, and 70% balance to be clear
before delivery.
Q4: Where is it used for?
A4: indoor & rental use. Widely used for backdrop of staging event,
rental business, liveshow, concert, etc.
Q5: what is the Delivery guarantee?
A5: Guarantee time: 2 years. Within 2 years, if any part failed, we
send new parts or repair for free, we will undertake shipping cost
from your city to China and from China to your city. After 2 years,
we only charge cost price for parts and repairements, and you need
to pay shipping cost go and back.
Q6: What's the controlling system?
A6: Control system could be Linsn, Nova-star, Color light...Usually
client use Linsn for fixed installation led screens, and Nova-star
system for rental screens.
