ultra slim smd P1.25 led screen wall 2k 4k 16:9 video panel led
indoor full color led display
Product Features
1. Full front maintenance, directly fixed on the wall, saving space
and installation time. 2. Wide color gamut, uniform color; 3840Hz
high refresh rate, no tailing, ghosting; 3. Natural heat
dissipation, ultra-quiet fanless design; 4. Die-cast aluminum
design, CNC finishing, very good cabinet flatness; 5. NovaStar
control system.
Product Description
| Pixel Pitch | P1.25 |
| pixel structure | SMD1010 |
| pixel density | 640,000 |
| module resolution(W*H) | 120*135 |
| module size(mm) | 150*168.75mm |
| cabinet size(mm) | 600(W)*337.5(H)*63(D) |
| cabinet area(m2) | 0.2025 |
| cabinet weight(KG) | 9.8 |
| cabinet flatness(mm) | <=0.01 |
| maintain style | front maintenance |
| cabinet material | die casting aluminum |
| viewing angle(H/V) | 160/160Deg |
| contrast ratio | 10000:1 |
| frame frequency(HZ) | 50&60 |
| driving mode | 1/30 scan |
| grey scale | 65536 |
| refresh rate | 3840HZ |
| color processing level | 16bit |
| video effect | 2KHD,4K/8K ultra picture |
| max power consumption(W/m2) | 800 |
Detail Show
Fully front maintenance design:
There is no need for maintenance channel behind the screen. It can
be attached to the wall to save time and space.

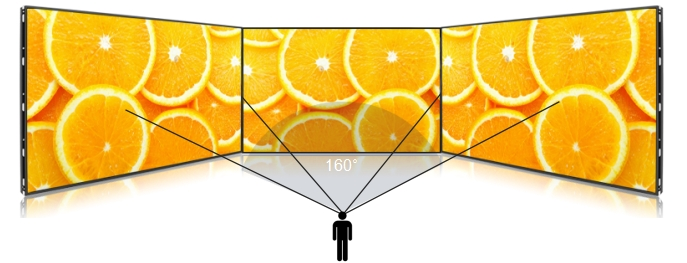

Wide viewing angle.
160 Degree/ 160Degree(Horizontal/ Vertical). Wide viewing angle
make sure viewer can watch it in any direction.

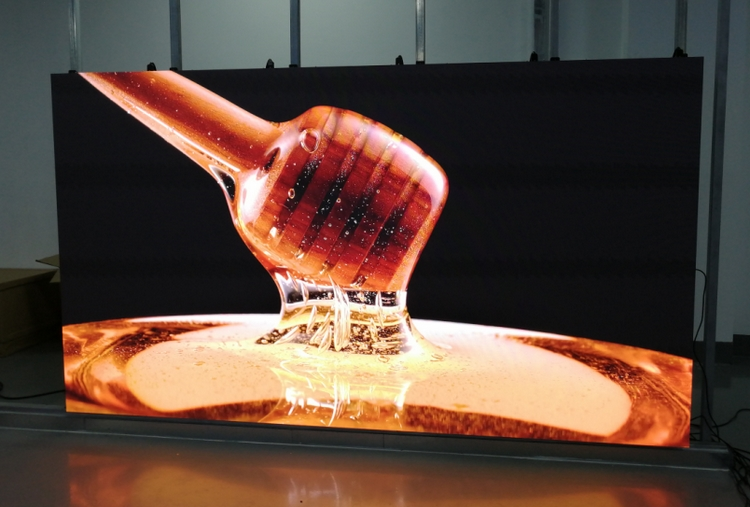

Testing
Application
Our Service
1. Warranty
1) We provide warranty of all components for 3 full years. During
this time, we will replace or repair our goods for free if there is
something wrong with them.
2) We will provide maintenance for a lifetime and charge for the
raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the
operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the
raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp
or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so
on.
2) We can also provide all kinds of certification such as CE, LVD,
RoHS and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and
some other expert suggestion.
2) We will send our engineers to your place if we are expected
after our negotiation.
FAQ
Q1. Can I have a sample order for led display?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are aceptable.
Q2. What about the delivery lead time?
A: About 22 days after receiving payment.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc led panel for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-8
days to arrive. Airline and sea shipping also optional. And you can
also designate shipping companies.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the solution and places deposits for
formal order.
Fourthly We arrange the production.
