Easy to install Stage led Display Screen P3 P3.91 P4.81 outdoor
waterproof Led Video Wall Panel
Specifications
|
Pixel Pitch(mm) | 3.91 | 4.81 |
LED Configuration | SMD2121 | SMD1921 |
Module Resolution(W×H) | 64*64 | 52*52 |
Module Dimension(mm) | 250(W)×250(H)×15 | 250(W)×250(H)×15 |
Module weight(kg) | 0.85 | 0.85 |
Module Max Power Consumption(W) | ≦40 | ≦40 |
Cabinet Pixel Density(dots/m2) | 65536 | 43264 |
Maintenance mode | Backside | Backside |
Single Dot Brightness Correction | YES | YES |
Single Dot Chroma Correction | YES | YES |
White Balance Brightness(nits) | 4000-5500 | 4000-5500 |
Color Temperature(K) | 2000—9300 Adjustable | 2000—9300 Adjustable |
View Angle(H/V°) | 140/120 | 140/120 |
Brightness/Color Uniformity | ≥97% | ≥97% |
Max(Average) Power Consumption(W/m2) | 1000(400) | 1000(400) |
Power Supply | AC90~264V,Frequency 47-63(Hz) | AC90~264V,Frequency 47-63(Hz) |
Refresh Frequency(Hz) | 50&60 | 50&60 |
Drive Mode | Constant Current Drive,13 Scan | Constant Current Drive,13 Scan |
Gray Level | 16384 | 16384 |
Refresh rate(Hz) | ≥1500 | ≥1500 |
Color Processing Digit | 16bit | 16bit |
Module power-off storage function | Save brightness, chroma correction data, module parameters | Save brightness, chroma correction data, module parameters |
Functions | 2K HD,4K Ultra HD Videos | 2K HD,4K Ultra HD Videos |
Lifespan(hrs) | 100,000H | 100,000H |
Operating Temperature/Humidity(℃/RH) | ±-10-40/±10-80%RH | ±-10-40/±10-80%RH
|

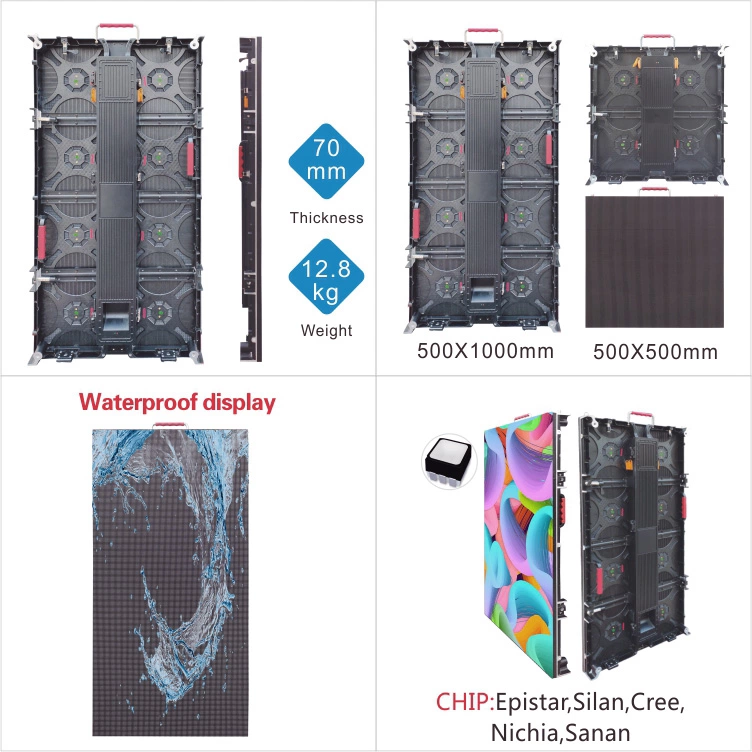

Product Details
Project
Our Service
1. Warranty
1) We provide warranty of all components for 3 full years. During
this time, we will replace or repair our goods for free if there is
something wrong with them.
2) We will provide maintenance for a lifetime and charge for the
raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the
operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the
raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp
or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so
on.
2) We can also provide all kinds of certification such as CE, LVD,
RoHS and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and
some other expert suggestion.
2) We will send our engineers to your place if we are expected
after our negotiation.
6. Additional Service
1) We provide you the forwarding information, and some other
information such as flight box, structure
