SCX LED RGB Small pixel pitch Indoor P2.5 SMD full color led
display screen module
Application Areas
HD Indoor Rental Led Display P2.5 smd2121 Full Color
Be distinguished by its design, P2.5 Indoor event audio visual
equipment LED video walls are consisted to be the best event
production on the market.
Aim at high-end market, its quality, reliability and excellent
visual effect contribute the most to its success.
Dies casting aluminum material design, it only weighs 8KG per unit.
With multi fast locks and alignment pins, flatness and seamless are
greatly reduced, the precise seamless and flatness are 0.01mm
480x480mm LED panel size is given it the advantage of setting up
accurate dimensions.
♦ Product specification
| indoor SMD P2.5 |
| Lamp size | 2121 |
| Resolution/mm | 2.5 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 160000/m² |
| Module resolution | 64x64 |
| Module size/mm | 160*160 |
| View distance | ≥0.5m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >2500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >4200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1000W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Product Overviews
| Items | Indoor Led display:
p1.5, P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 |
| Material | steel,aluminum ,die casting aluminum |
Payment
terms | 30% deposit before production, 70% balance before shipping |
| T/T |
| Western Union |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; |
| Anti-shaking wooden case |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage) |
| Using Range | Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on. |
Our case

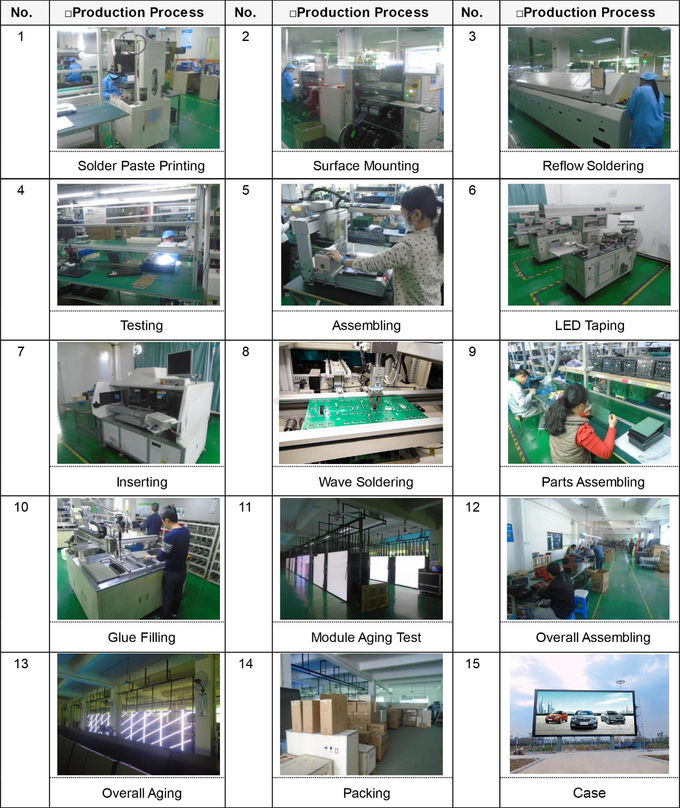

♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality
goods.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Methods for Quality Assurance
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
Factory
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
FAQ
Q1: Are u the manufacturer or trading company? and where is ur
factory?
A: We are professional manufacturer. You are warmly welcome to
visit our factory to learn the technical and maintenance skills and
everything you need in our factory.Our company is in GuangZhou.
Q2:May be we will need some samples, what is the lead time of
samples and lead time of order?
A2:We will arrange your sample of the charges within 1-2 days and
arrange your order within 12-15 days after receiving ur deposit.
Q3:How could us arrange order?
A3:Please send your inquiry to us--click the "send" in below, then
let us confirm all details, u can click "start order" in above,or
we send you order link for your payment.
Q4:Which payment method does your company accept?
A4:We support T/T or Western Union.
Q5:If have quality problems, how do you solve them?
A5:Pleas provide relevant videos and photos within 3-15 days of receipt of the shipment. We will verify it at first. If it is
really quality problem, we will work with the engineer to assist
you in solving the problem.
Q6:Do you offer guarantee for the products?
A6:Yes, we offer 2 years warranty to our products.
Q7:Can I use my own forwarder to transport the products for me?
A: Yes, of course you ca use your own forwarder. If you have your
own forwarder in Guangzhou area, we can contact him to arrange the
shipment without extra delivery cost from you.
Q8:Is it OK to print my logo on led light product?
A8:Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
