Outdoor P10 Full Color Large LED Screen Display/ LED Rental Screen/
960x960mm Cabinet For Advertising
Introduction
Led display introduction:
1) High intensity and can be adjusted, so can meet the request of
the customers according the application environment. 2) Best
equality, commendably solve the problem of the mosaic, have the
excellent consistency of light 3) To pictures and character, have
clear, exquisite and real display effect 4) Big viewing angle to
110 degree at horizontal line, 60 degree at vertical line, you can
see at every angle at this range, no picture change, no color
excursion 5) Can repair each led lamps, so the cost of maintain is
lower, and easy to repair.
Products Advantages:
1) Price Advantage: we have the best competitive price at the
market, also have the same even better quality. 2) Performance
Advantage: Best Equality, high consistency, Big viewing angle, can
repair each led lamps 3) Quality advantage: From material to
finished product, from design to produce, we control all steps,
that's the guarantee of the quality and reliability. 4) Service
advantage: Better service at same situation, better cooperation at
same service!
Products application area:
1) Full color LED display : Equally or compactly make the red,
green, blue color in one dot, equally distribute at the panel, so
make the whole display 2) Usually apply for physical sports,
advertisement, bank, stock exchange, station, port, marketplace,
telecommunication, department, school, monitor, restaurant,
entertainment
Technical Parameters
| Shenzhen SCX LED outdoor full color LED Display Specifications: |
| No. | ITEM | P10 | P16 | P20 | P25 |
| 1 | Pitch | 10mm | 16mm | 20mm | 25mm |
| 2 | Pixel density | 10000pixels/ | 3906pixels/ | 2500pixels/ | 1600pixels/ |
| 3 | Module size | 1280mm*960mm | 1024mm*1024mm | 1280mm*1280mm | 800mm*800mm |
| 4 | Panel pixel | 128*96 | 64*64 | 64*64 | 32*32 |
| 5 | Power consumption | 100W1500W/ | 100W1200W/ | 100W800W/ | 100W500W/ |
| 6 | View distance | 8--150m | 10--200m | 15--200m | 25--200m |
| 7 | Pixel configuration | 1R 1G 1B | 2R 1G 1B | 2R 1G 1B | 2R 1G 1B |
| 8 | Brightness | ≥6500cd/ m2 |
| 9 | Screen weight | <65kg/m2 |
| (not including external frame) |
| 10 | Grey scale | 65536degree |
| 11 | Display mode | VGA640X480VGA1600X1024 |
| 12 | Life time | ≥100,000 |
| 13 | Control distance | 120 m (no repeating); Optical fiber transmission: 500m- 20km |
| 14 | Operating temperature | 25+60 |
| 15 | Operating humidity | 10%95%RH |
| 16 | Control mode | Synchronized with computer monitor |
| 17 | Drive mode | constant current driving,static scan |
| 18 | Accepting signal | PAL/NTSC/SECAMS-VideoVGARGBComposite VideoSDI |
| 19 | Systems operating platforms | Windows98/Me/2000/Xp |
| 20 | Brightness adjustment | 64 level automatic or manual |
Product Description

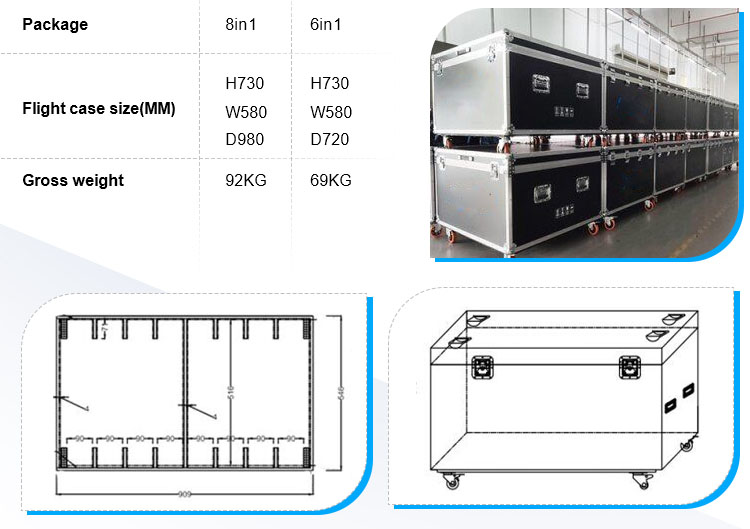

Packing
Our Service
Pre-sale service
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide professional solutions based on customer's requirement.
4. Offer sample and all document as customers required.
5. Other services, such as factory visiting and so on.
In-sale service
1. Tracking report of production.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
After-sale service
1. Lifetime maintenance and software upgrade.
2. Complaint respond period not exceed 24 hours, maintenance
guidance and problem solution supplied in 48 hours.
3. Free technician training.
4. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
5. Engineer guide installation onsite if needed.
What are the considering factors of the Outdoor LED display screen?
Main questions of outdoor led display as below:
(1)display installed in the outdoor, solarization and drench, blow
and dust, bad working environment, electrical equipment being
wringing and damp will cause short circuit, even fire, cause conk
out, even fire, result in loss.
(2)the display may be attacked by the strong electromagnetism made
by the thunder and lighting.
(3)The big change of the environment temperatures. The Operating
LED display will emit a lot of heating, if the environment
temperature is too high, the molectron of the LED screen maybe
operating un-normally to damage for its bad giving heating out,
finally the LED display system will not operate normally as usual.
(4)The display has a wide range of angle, long viewing distance,
big change of the environment light, especially the direct to the
sunshine.
With these special requirements, the outdoor LED displays needed:
(1) The parts connecting the body of the LED display with the
building must be waterproof and anti-leaking strictly as the
display. The display must have the measurements for water giving
out. Once leaked, it will be given out smoothly.
(2) The lightning rod should be installed on the LED display or the
building. The body and the frame of the display must to keep
connecting with the earth, the resistor of the earth wire should
under 3 Q , so as to the heavy current from lightning can be
discharged in time.
(3) Install the ventilator equipment to lower the temperature, keep
the inner cabinet temperature in the range of -10 ~ 40 centigrade
degree. The back top of the display must install the rolling
electronic fans to give the heating out.
(4) Choose the industrial using IC with the working temperature
range of -10 ~ 40 centigrade degree for fear the LED display can
not start in the low temperature of the winter.
(5) To be seen form a long distance in the high brightness
environment, it must be using the extra high brightness LED lamps.
(6) Choosing the new large angle LED lamps as medium, the LED
display will have a larger angle, vivid colors, consistent
operation and a long life of more than 100 thousand hours. The
medium has a popular package with the hat-edge and square shape in
cylinder, sealed by Silicon glue, assembly without metal. Also the
display has an unique exterior outface, solid and durable, has the
characteristics of anti-dazzle, waterproof, impurity proof,
protection from high temperature and short circuit.
