SCX LED Indoor/outdoor P4 portable P4mm SMD 512*512mm Die-casting
Aluminum Panel Video Wall Pantallas LED P4 Indoor LED Rental Screen
Indoor Rental led display Special Features
1, High-definition display: high density products, high resolution
high-definition display, no flicker, no particle;
2, High refresh:high refresh rate of 1920Hz, gray 14 ~ 16 Bit
adjustable display high-definition playback smoothly brightly,
truely;
3, Large angle of view: the use of high quality table 2121 lamp,
the visual angle up to 140 degrees and above, multi-direction
viewing display effect is consistent;
4, Good flatness, good consistency: 160*160mm large size design,
reduce the splicing gap of the screen body, the bottom shell
structure design of multi rib strengthened, to ensure the product
is not easy to tensile deformation, guarantee of the whole flat
screen body and unity;
5, Standard size, convenient installation: 256x128mm standard size
design, the assembly efficiency of the whole screen, can be used
with the 512x512mm die casting aluminum box frame, the product is
light, convenient installation.
6. Support All Media Format and Display Mode:
DVI/HDMI/3G/HD/SD/SDI display mode, applicable for TV
program,VCD/DVD and live show.
7.Smart mode available (optional) to monitor the overall working
hours and temperature of each cabinet.
Convenient and flexible assembly structure
1.Not easy to deformation, corrosion resistance, heat faster
extending the service life of the product.
2.Multi-function fitting Quick and easy and convenient .
3.Buffer performance more superior, the transportation is more
secure, but also can be customized air distribution cabinets, for
mobile display and convenient traveling
4.The assemble structure is convenient and easy,The appearance
design is elegant and decent,ultra-light, ultra-thin,High strength,
durability, great heat dissipation.
MOQ and Sample
1.We welcome sample order to test and check quality .Mixed samples
are acceptable.
2.Low MOQ,1 piece for sample checking is available.
3.Please inform us formally before our production and confirm the
design firstly based on our sample.
♦ Product specification
| indoor SMD P4 |
| Lamp size | 2121 |
| Resolution/mm | 4 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 62500/m² |
| Module resolution | 32x32 |
| Module size/mm | 128x128 |
| View distance | ≥4m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >1800cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 120(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >1200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1100W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

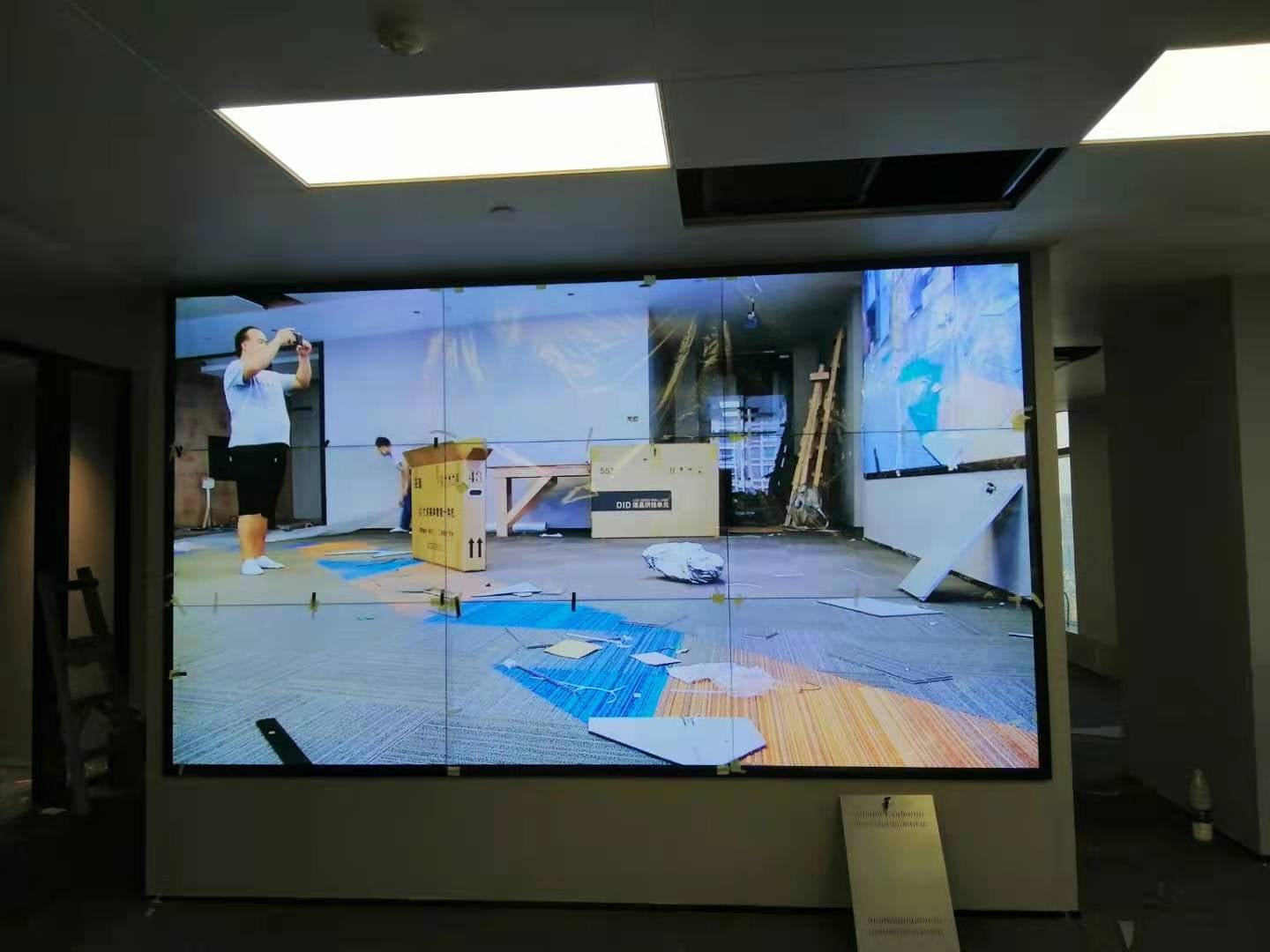

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with
new order for small quantity. For
defective batch products, we will repair them and resend them to
you or we can discuss the solution i
ncluding re-call according to real situation.
