P2 Indoor Gob Advertising Event Rental Indoor Led Display
Waterproof Small Pixel High Resolution Led Video Wall
GOB LED Display Features
1. 100% front service desgin, all parts including power supply and
receicing card can be took off from front side, easy to
maintenance.
2. Cabinet size: 640mm x 480mm, pefer match indoor 16:9 ratio,
ideal product to take place of projector.
3. Fast-installation design, with power connector, aluminum
connecting piece, no locks!
4. High precision cabinet, perfect matching between cabinets,
ensure perfect flatness of screen.
5. Super light design, diecasting cabinet ONLY 2.5KG per piece!
Only 6KG per cabinet with modules and all parts!
6. Black LED lamps, contrast ratio 8000:1.
GOB LED Display Specification
Indoor P2-GOB Indoor LED Display 512*512mm Parameter |
| Pixel Pitch | 2mm |
| Module side | 256mm*128mm |
| Cabinet Size | 512*512mm |
| Pixel density | 250000dots/m2 |
| Scan | 1/32S |
| Resolution rate | 128*64 |
| Color temperature | 6000K--8000K |
| Protection grade | IP43 |
| Gray grade | 14 bits |
| Refresh rate | 3840HZ |
| Dead LED lamp rate | ≤0.1‰ |
| Non-Flatness | <0.2mm |
| Module interval | <0.2mm |
| Cabinet Gross Weight(KG) | 7.5 kg |
| Average power consumption | 200w/m2 |
| Maximal power consumption | 700w/m2 |
| Brightness | 1000cd/m2(adjustable) |
| Life-span | ≥1 00,000 hours |
| MTBF | 5,000 hours |

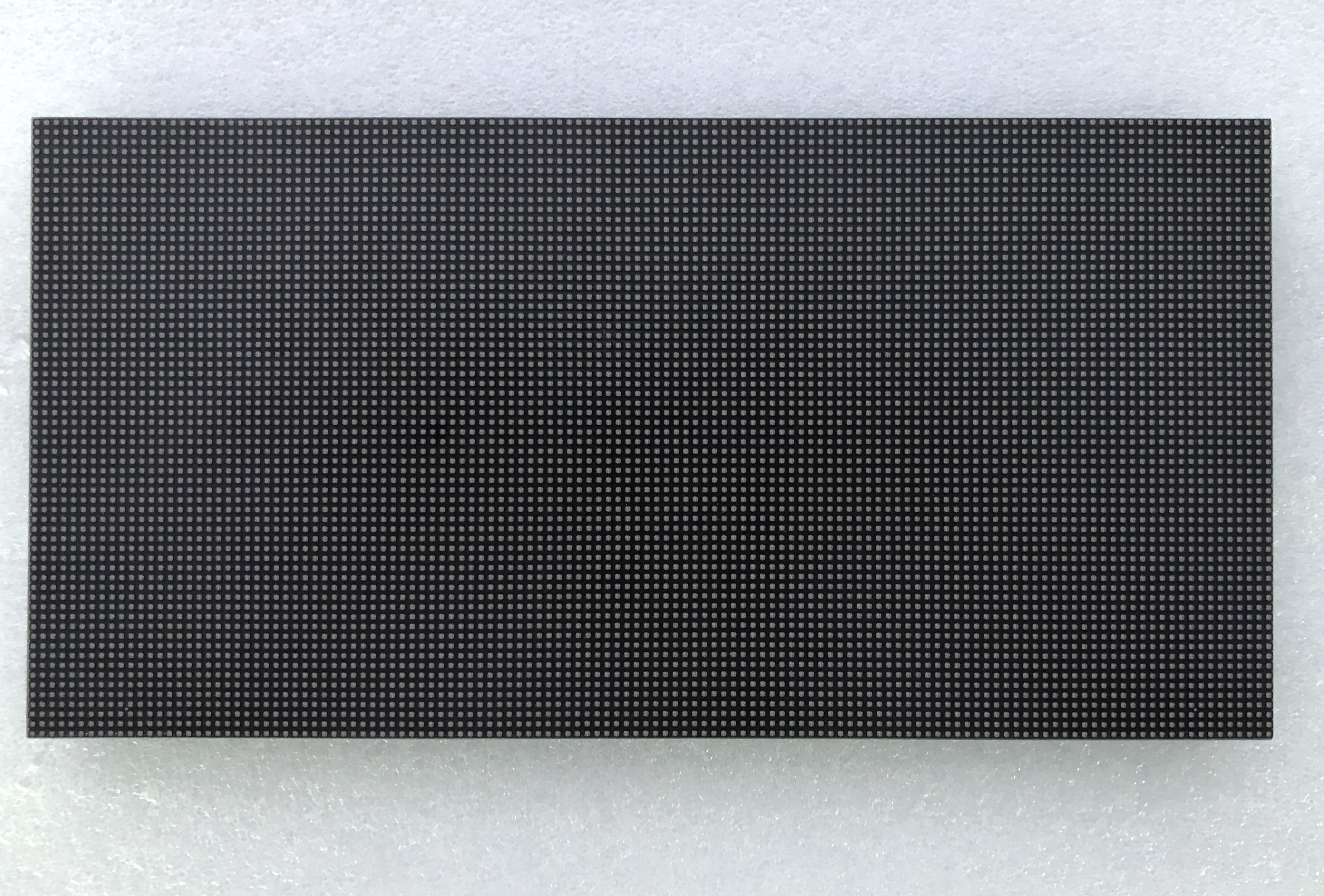

Detailed Picture
GOB LED Screen Project
Trade Terms
| Payment terms: | 35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow |
| Packing: | -Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case |
| Shipping: | LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment |
| After-Sales-Service: | -Lifetime with professional engineer support for free.
-Within 1 year, supply spare parts for free if the machine has quality problem |
Our Service
1. Warranty
1) We provide warranty of all components for 3 full years. During
this time, we will replace or repair our goods for free if there is
something wrong with them.
2) We will provide maintenance for a lifetime and charge for the
raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the
operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the
raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp
or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so
on.
2) We can also provide all kinds of certification such as CE, LVD,
RoHS and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and
some other expert suggestion.
2) We will send our engineers to your place if we are expected
after our negotiation.
6. Additional Service
1) We provide you the forwarding information, and some other
information such as flight box, structure
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as
possible. So we can send you the offer at the first time. For
designing or further discussion, it is better to contact us with
Skype/email /phone, in case of any delays.
2. What kind of display do we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/
Advertising LED display for you choose.
3. What about the lead time for an order?
Always: 10-17 days, as your order quantity, sometimes we have
stock, can delivery within 7 days.
4. What about the warranty?
We have Three years quality guaranteed, spare parts such as led
module, receiving card, control card, power supply are damaged not
cause of artificial damaged, then it's free maintenance and ship
back new ones for replacement.
5.How about the quality?
Our led products must be testing of at least 72hours before
shipping, from purchase raw materials to ship ,Each step has strict
quality control systems to ensure led display with good quality.
6. Can you offer a technical support? Since it's my first time....
We provide free training for our customer, teach the client how to
set up screens, make configuration of parameters, broadcast the
videos through Nova star and colorlight or Linsn control systems,
our engineer can directly teach you how to control, or help you to
done if you are really don't know how to control(Our Engineer can
text English, we can saving more time )
We're devoted to innovative high-end led display with over 15 years
manufacturing experience, and we believe you could get a
professional solution and best service from REISS. We're happy to
serve you.
If you need led display screen,welcome to contact us,we can
customize according to your needs.
