SCX LED High Resolution 64x64 dots matrix SMD Module P4 Indoor RGB
Full Color LED Display Screen
Our advantages
1.Goods be examined before delivery,Professional QC team
2.Variety of customized products to satisfy different requests.
3.Highest cost-effective price.
4.With pure golden wire connection in LED.
5.The price depends on the quantity. We can provide you with the
best competitive price in the market with the same or even better
quality.
6.All inquiry will be answered within 24 hours by a well-trained
and experienced staffs.
7.Top Quality & Reasonable Price & Responsible After Service
8.All private information will be well protected.
Product specification
| indoor SMD P4 |
| Lamp size | 2121 |
| Resolution/mm | 5 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 40000/m² |
| Module resolution | 64x32 |
| Module size/mm | 320x160 |
| View distance | ≥4m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >2000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/8 |
| Frame rate | 60Hz |
| Refresh frequency | >1800Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1000W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check,
temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Product Overviews
| Items | Indoor Led display:
P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 |
| Material | steel,aluminum ,die casting aluminum |
Payment
terms | 30% deposit before production, 70% balance before shipping |
| T/T |
| Western Union |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; |
| Anti-shaking wooden case |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage) |
| Using Range | Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on. |

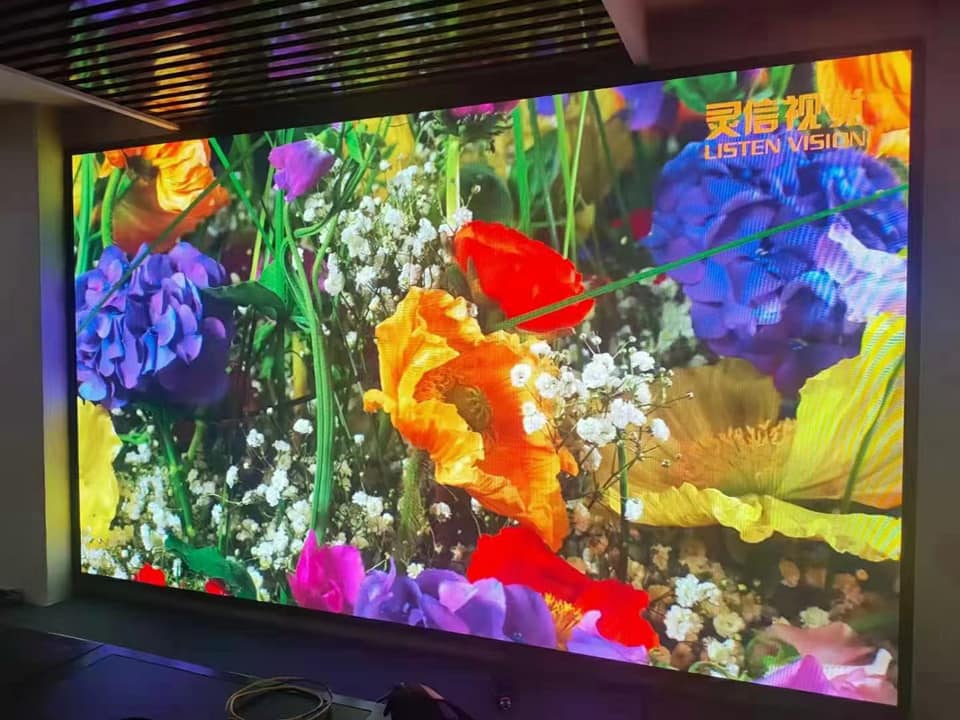

Our case
Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products
Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Features
1. Seamless --- precision cabinet, light weight and more durable.
2. Quality LEDs --- with wide viewing angle to ensure vivid and
sharp images and video.
3. High refresh rate and high gray scale --- to ensure color
consistency and better images
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
FAQ
No.1 Why choose us?
With more than 8 Years of experience in producing LED modules, we
have passed CE, RoHS and ISO9001 certifications, and we always put
quality on the top of our list, because we firmly believe "Quality
is the lifeline for a corporation".
No.2 How to check quality?
Our products are made with good quality led materials, like PCB,
plastics, led lamps,
ICs, etc., guaranteed by our reliable parters.
What's more, you or your friends can pay a visit to our factory in
our working hours to have a close observation of our products.
At last, before you place order in production and after production,
we will take some pictures of related products. We promise
everything is the same as we discussed.
No.3 How to improve quality?
Find problems and solve them.
As a professional manufacturer in LED display field, we pay close
attention to material quality at anytime and send feedback to
supplier in time when something is wrong.
And we welcome customer to give us feedback on any products, then
we will work out solutions as soon as possible.
No.4 How could I know how to control LED display?
Frist, if you puchursed our led screen, the control system would be
set up in advance by our professional workers.
Second, if you buy some other spare parts like module, control
card, power supply,etc., we can also assemble and install control
system in advance, and we shall recommend corresponding control
card for you .
Third, we will help you install led screen by teamviewer or send
RCG file to you, if you can't finish intallation by yourself.
No.5 If any products have problems, how to do?
First, we hope you can receive flawless products on arrival.
Second, each order will be attached with some free spare parts,
like led lamps or ICs, etc, so that you can do some simple reparing
works.
Third, if you purchase LED screens, please don't forget to buy a
samll quantity of modules for spare use.
