Rental P4 Indoor Full Color LED Screen 512x512mm Fast Lock Light
Thin LED Cabinet Panel For Stage Back LED Videowall LED
256x128 module 3840Hz high refresh Kinglight black SMD2020
512x512mm panel rental p4 indoor led stage screen
Product Feature:
1. Easy to install and disassemble.
2. Indication lights to show status of power and signal status
3, The better quality/price ratio in LED Displays field.
4. Fast cooling: excellent heat dissipation performance to protect
the module circuit
5. High refresh rates:With high refresh rates, our products can
display flicker-free video images - including live video feed
6. High gray level and good color uniformity with brand IC, led
lamp
7. Anti-interference: special anti electronic-magnetic interference
function
8. High precision: seamless splicing though CNC machine
9. Seamless connection:The aluminum die-casting technology,togrther
with the high precision CNC procession,
makes the precision the precision reach ±0.05mm so as to achieve
seamless assembly.
10. Noiseless:The aluminum structure requires no fan.Combined with
the noiseless power supply,the cabinet is totally silent.
11.Low brightness and Hight gray scale:16Bit gray scale to bring
excellent performance when brightness is reduced to 20%.
♦ Product specification
| indoor SMD P4 |
| Lamp size | 3528 |
| Resolution/mm | 4 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 62500/m² |
| Module resolution | 32x32 |
| Module size/mm | 128x128 |
| View distance | ≥4m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >1800cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 120(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >1200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1100W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

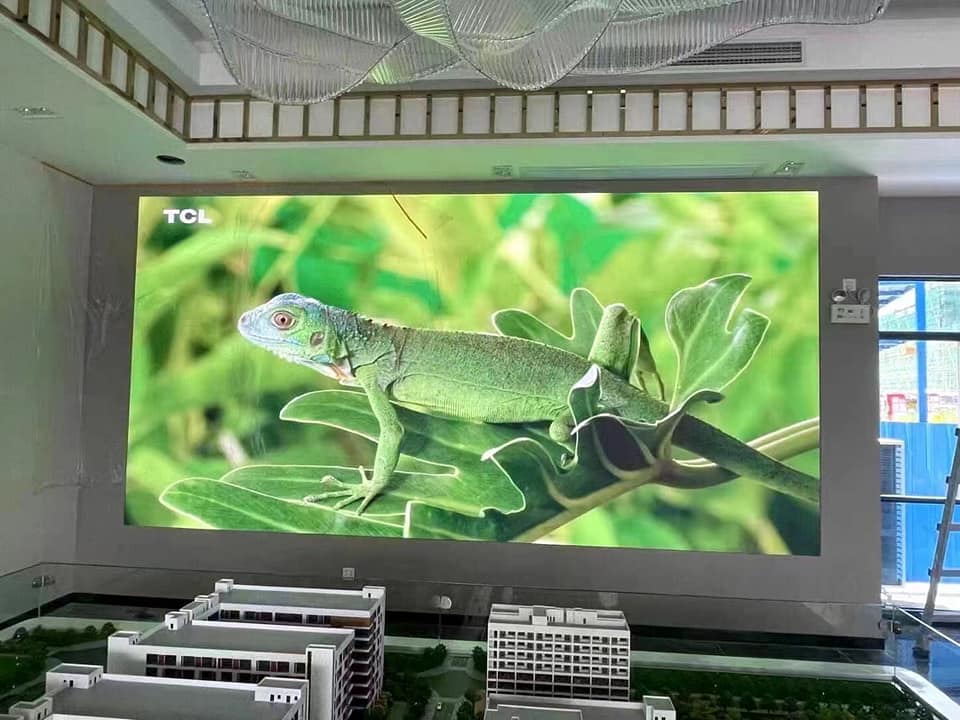

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection
before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and
professional production ensure
our led display’s competitiveness.
FAQ
Q1: Are you the manufacturer or trading company? and where is your
factory?
A: we are professional manufacturer. You are warmly welcome to
visit our factory to learn the technical and maintenance skills and
everything you need in our factory.
Q2:May be we will need some samples, what is the lead time of
samples and lead time of order?
A2:We will arrange your sample of the charges within 1-2 days and
arrange your order within 5-12 days after receiving your salary.
Q3:How could us arrange order?
A:pls send your inquiry to us--click the "send" in below, then let
us confirm all details, you can click "start order" in above, or we
send you order link for your payment.
Q4:Which payment method does your company accept?
A:We support T/T or Trade Assurance. For more payment methods,
please contact our customer service.
Q5:If have quality problems, how do you solve them?
A:Please provide relevant videos and photos within one month of
receipt of the shipment. We will verify it at first. If it is
really quality problem, we will work with the engineer to assist
you in solving the problem. If we cannot solve it, we will give you
a refund or resend you new one for free, but we will not bear the
freight.
