SCX LED P10 Full color Outdoor advertising led display screen Fixed
Installation waterproof P10 Outdoor Advertising led sign
♦ High flexibility:
Our company has made researches on various outdoor circumstances,
and applied the research achievements to design systems, so as to
obviously improve both the flexibility and reliability of our
products in various bad circumstances outdoors.
♦ Rich colors:
with three basic colors (red, green and blue) to form the unit
boxes, 256-level gradation of red, green and blue form 16777216
kinds of colors, making the electronic displays showing rich
colors, high saturation, and high resolution, and also enabling
them to show high frequency dynamic images.
♦ High brightness:
The products adopt super-high brightness LED, so that you can see
clearly from a long distance even in strong sunshine.
♦ Product specification
| SMD P10 |
| Lamp size | 3535 |
| Resolution/mm | 10 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 10000/m² |
| Module resolution | 32x16 |
| Module size/mm | 320x160 |
| View distance | ≥8m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >8000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/4 |
| Frame rate | 60Hz |
| Refresh frequency | >1200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <750W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
| Product overviews |
| Items | Indoor Led display:
P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Dance floor led display
DJ led screen
Transparent led display |
| Material | steel,aluminum ,die casting aluminum |
| Certificates | CE, FCC,RoHS, CCC, UL |
Payment
terms | 30% deposit before production, 70% balance before shipping |
| T/T |
| Western Union |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; |
| Anti-shaking wooden case |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage) |
| Using Range | Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on. |

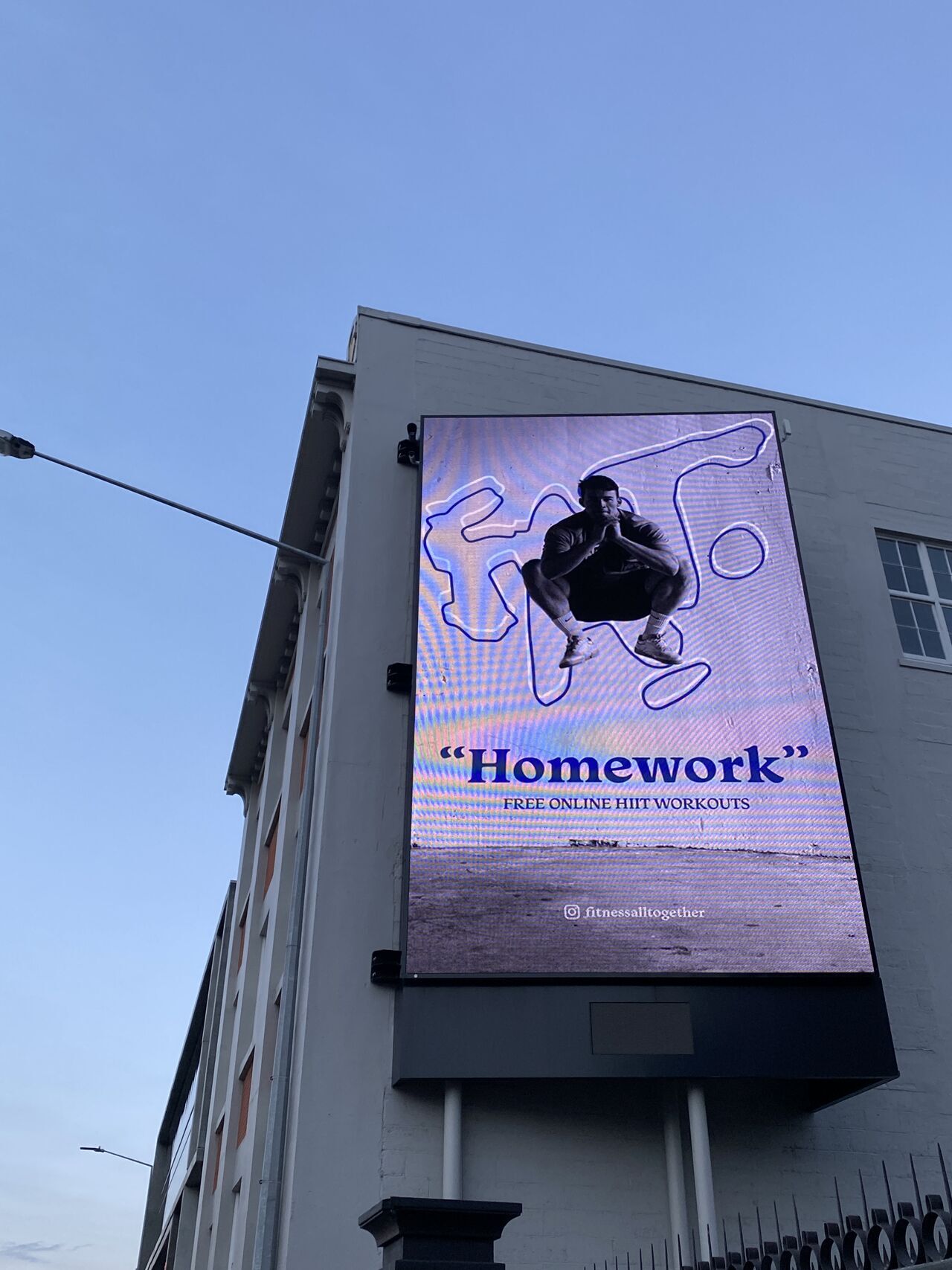

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Applications
LED display can be widely used in
advertising,multi-media,stadium,stage,rental show,transit
directions,etc.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality
goods.
our service
1)Your inquiry related to our products or price will be replied in
24hrs
2)OEM&ODM,any your customized lightings we can help you to
design and put into product
3)Distributoer ship are offered for your unique design and some our
current models
4)Protection of your sales area,ideas of design and all your
private information
5)Two years warranty for the whole system except human factor and
force majeure
6)One year quality warranty, lifetime maintenance, and guarantee the
maintenance time in contract.
7)During the warranty period: solve problems for users through the
phone, fax or E-Mail. Update the software free of charge.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
FAQ
Q1: When is the lead time?
A: Sample:2-5days; small quantity: 15-20days; large order:
20-25days; according to quantity.
Q2: Is it all right to make customers’own brand name?
A: That’s all right to make your own brand name.
Q3: Is it available for samples?
A:Yes, of course. sample is free, and you may pay freight cost.
that would be reasonable.
Q4:Is there a middle man draining your profit?
A:Get rid of them,it’s information age. The factory directly
provides you with the high-quality product,
quick-delivery,best-quality service and affordable prices.
Q5: How much is the min.order?
A:Of course,you can order any quantity you need.
Q6:Could the led display be customize ?
A:Yes , of course , any type and size you want , please tell me ,
we can disign and discuss together
Q7:How to place an order:
1. Sample approval.
2. Client makes 30% deposit or open LC after receiving our PI.
3. Client approves our pp sample, and get the testing report if any
necessary .
4. Mass Production.
5. Arrange shipment.
6. Supplier arranges necessary documents and sends copy of these
documents.
7. Client effect balance payment.
8. Supplier sends original documents or telex release the good.
