    Outdoor led screen diaply P6 P8 P10 Fixed Video Wall Display Sign Board Signage Advertising Led Screen

    Ask Lasest Price
    Brand Name : SCXK
    Model Number : smd -p10
    Certification : CB/CE/ROHS/FCC/ISO/UL
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5600 sqm month
    Delivery Time : 7-16 working days
    • Product Details
    • Company Profile

    Outdoor led screen diaply P6 P8 P10 Fixed Video Wall Display Sign Board Signage Advertising Led Screen


    Product Description:

    (1)Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
    (2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
    (3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
    (4) Line-Double technology is adopted for the picture adjustment.
    (5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
    (6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.

    ♦ Technical specification


    outdoor SMD P10
    Resolution/mm10
    Pixel configuration1R1G1B
    Pixel density/pixels/m²10000/m²
    Module resolution16x16
    Module size/mm160x160
    View distance4-250m
    Single point brightness adjustCan be added
    Single point color adjustCan be added
    White balance brightness>8000cd/㎡
    Color temperature6500K-9500K
    Horizontal view angle120(degrees)
    Vertical view angle60(degrees)
    Signal Process bit10 or 16bit
    Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distancesInternet cable:100m, multimembrane:500m, monofilm:2km
    Driving modeConstant driving current
    Scanning mode(1/4)
    Frame rate60Hz
    Refresh frequency>3000Hz
    Control modeComputer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point<1/10000
    Working hours≥72hours
    Mean Time Between Failure>5000hours
    Life time100000hours
    Life-all-white(brightness halving)50000hours
    Environment temperature rangeOperating temperature range: -20-45℃
    Maximum power:/㎡<950W
    Average power:/㎡<350W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environmentWindowsNT,Windows1999,WindowsXP
    Luminous point width between centresDeviation<3%
    Brightness uniformity<10%
    Color uniformity(chromaticity coordinate)±0.003
    Power supply requestAC85-264V(50Hz-60Hz)
    Contrast(1000:1)
    System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working)working:10-95%
    Humidity(storing)storing:10-95%

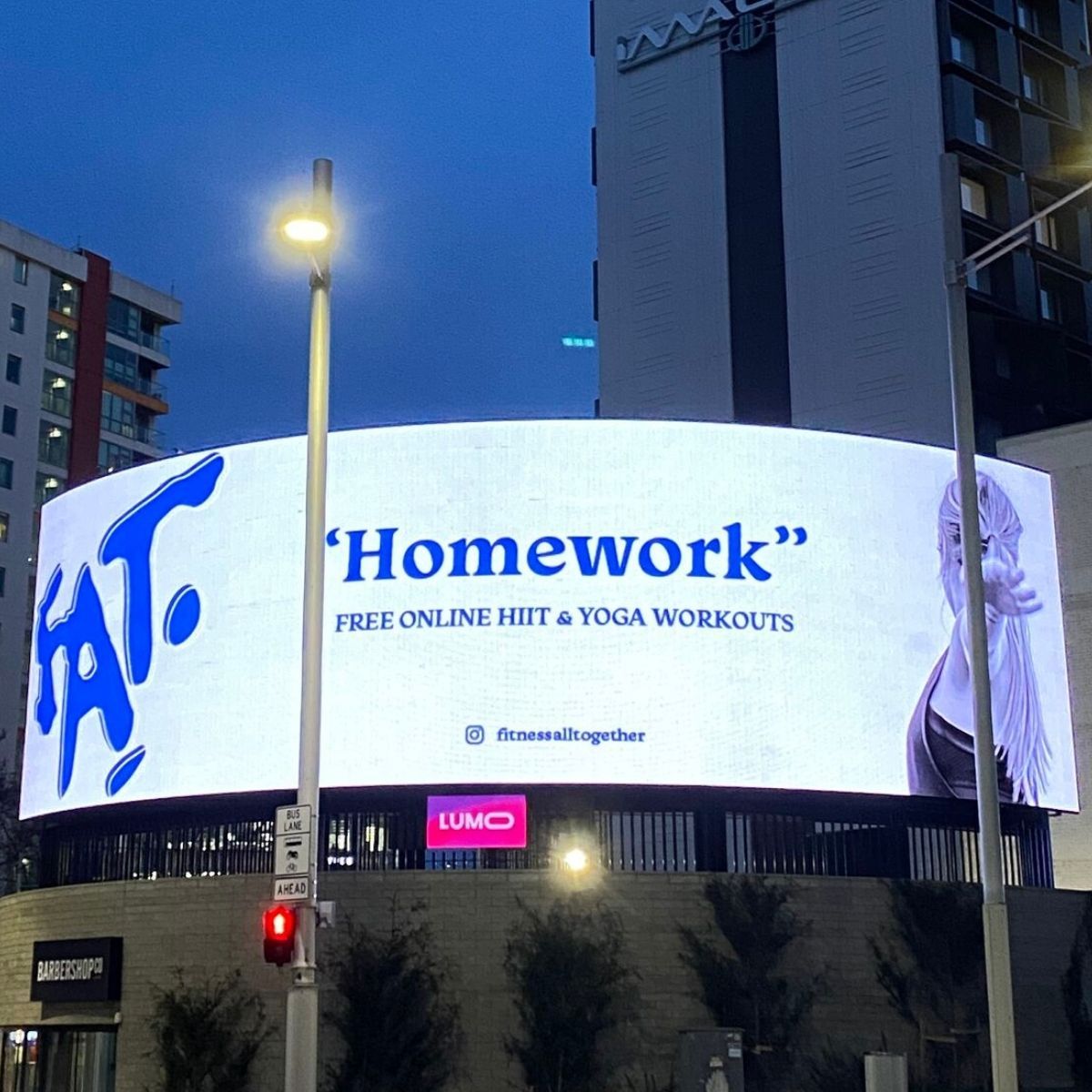

    Our case


    ♦ Production process


    1) Incoming Inspection→2)SMD→3)Plug-in

    →4) Wave Soldering→5)After Welding→6)Testing

    →7) Semi Finished Aging→8)Module Assembly

    →9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing


    ♦ Packaging and shipping

    Wooden case or flight case package are available.

    Shipping by sea,air or DHL,multiple shipping ways for your choice.


    ♦ Why choose us


    Continues Quality

    With more than 10 years experience in led display producing,equipments are updated regularly.What’s

    more,unique standardized and module production ensure our products continuous quality.


    Competitive Price

    With large scale production capacity and professional production technology,our company have built

    effective modular production.We always stick to promote the technical innovation and reduce cost to

    benefit customers.


    Fast Delivery

    Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

    inventory will be used to maintain your uninterrupted supply of the products.


    Perfect Service

    Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

    you.

    After-sales:We will track the products usage and then constantly perfect our products.


    ♦ Frequently Asked Questions


    What kind of payment terms you can accept ?

    We can accept T/T and Western Union.


    What about your Led Display quality ?

    Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

    our products continuity.


    What is your delivery time ?

    Within 7-35 days according to your area and quantity.


    Is your LED display competitive ?

    Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

    our led display’s competitiveness.


    FAQ

    Q1. Can I have a sample order for led light?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
    Q2. What about the lead time?
    A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
    Q3. Do you have any MOQ limit for led light order?
    A: Low MOQ, 1pc for sample checking is available
    Q4. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
    Q5. How to proceed an order for led light?
    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.
    Q6. Is it OK to print my logo on led light product?
    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
    Q7: Do you offer guarantee for the products?
    A: Yes, we offer 2-5 years warranty to our products.
    Q8: How to deal with the faulty?
    A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
    than 0.2%.
    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
    defective batch products, we will repair them and resend them to you or we can discuss the solution i
    ncluding re-call according to real situation.
