    500x500mm Die-casting Aluminum LED Panel Video Wall 500x500mm cabinet P4 P4.81 P3.91 Outdoor Rental LED Screen Display

    Ask Lasest Price
    Brand Name : SCXK
    Model Number : SMD P3.91
    Certification : CE,ROHS,FCC,SASO,CB
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000 sqm month
    Delivery Time : 7-16 working days
    • Product Details
    • Company Profile

    500x500mm Die-casting Aluminum LED Panel Video Wall 500x500mm cabinet P4 P4.81 P3.91 Outdoor Rental LED Screen Display

    Manufacturing Led Stage Backdrop Screen Indoor/ Outdoor P3/P3.91 Rental LED Display For Stage/Concert/Events/Competition


    Features :

    1. Corner protection design
    This can avoid cabinet crush,and protect the leds during transportation and installation ,which reduce maintenance cost,reduce the likelihood of any service issue.

    2. Maintenance difficulties are solved and it truely realizes dot-to dot mainterance.

    3. Dual back-up for signal cable

    4. this cabinet are avaliable for P2.97, P3.9 and P4.8 , both indoor and outdoor.

    5. Power box modular design, Future maintenance is more convenient.


    Product specification

    SMD P3.91
    Lamp size2121
    Resolution/mm3.91
    Pixel configurationRGB 3 in 1
    Pixel density/pixels/m²64510/m²
    Module resolution64x64
    Module size/mm250x250
    View distance≥2m
    Single point brightness adjustCan be added
    Single point color adjustCan be added
    White balance brightness>8000cd/㎡
    Color temperature6500K-9500K
    Horizontal view angle120(degrees)
    Vertical view angle60(degrees)
    Signal Process bit10 or 14 bit
    Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distancesInternet cable:100m, multimembrane:500m, monofilm:5km
    Driving modeConstant driving current
    Scanning mode1/8
    Frame rate60Hz
    Refresh frequency>4200Hz
    Control modeComputer synchronous
    Brightness adjusted rangeManual, automatic operation, stepless continuous adjusted
    255 steps. No grey loss
    Out of control point<1/10000
    Working hours≥72hours
    Mean Time Between Failure>5000hours
    Life time100000hours
    Life-all-white(brightness halving)50000hours
    Environment temperature rangeOperating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡<1000W
    Average power:/㎡<280W
    Self-check technologyLED spot self-check, communications check, power check,
    temperature monitor(need customization)
    Remote monitoringRemote supervision and control, record potential fault,
    send out warning signs to the operators.(need customization)
    Software environmentWindowsNT,Windows1999,WindowsXP
    Luminous point width between centresDeviation<3%
    Brightness uniformity<10%
    Color uniformity(chromaticity coordinate)±0.003
    Power supply requestAC85-264V(50Hz-60Hz)
    Contrast(1000:1)
    System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working)working:10-95%
    Humidity(storing)storing:10-95%


    Product Overviews

    ItemsIndoor Led display:
    P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
    Outdoor Led display:
    P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
    Materialsteel,aluminum ,die casting aluminum
    Payment
    terms
    30% deposit before production, 70% balance before shipping
    T/T
    Western Union
    Packing:Standard Export Carton with fully Polyfoam or Pearl Wool
    Flight case;
    Anti-shaking wooden case
    Shipping:5 to 7 working days upon receiving deposit payment
    After-Sales-Service:Lifetime with professional engineer support for free.
    Within 5 year, supply spare parts for free if has quality problem
    ( not by man-made damage)
    Using RangeShopping mall,bank,bus station, train station,
    center of downtown, airport, school, factory, bus, taxi,and so on.


    Production process:
    1) Incoming Inspection→2) SMD→3) Plug-in
    →4) Wave Soldering→5) After Welding→6) Testing
    →7) Semi Finished Aging→8) Module Assembly
    →9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

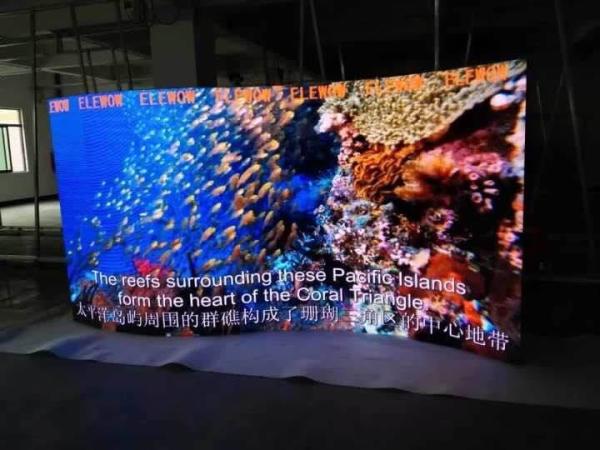

    Pictures


    Manufacturing led stage backdrop scree Indoor/ Outdoor P3/P3.91 Rental LED Display For Stage/Concert/Events/Competition


    Our Projects


    Manufacturing led stage backdrop scree Indoor/ Outdoor P3/P3.91 Rental LED Display For Stage/Concert/Events/Competition


    FAQ

    Q1. Can I have a sample order for led light?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

    Q3. Do you have any MOQ limit for led light order?

    A: Low MOQ, 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?

    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

    Q5. How to proceed an order for led light?

    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

    Q6. Is it OK to print my logo on led light product?

    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

    Q7: Do you offer guarantee for the products?

    A: Yes, we offer 2-5 years warranty to our products.

    Q8: How to deal with the faulty?

    A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
    than 0.2%.
    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
    defective batch products, we will repair them and resend them to you or we can discuss the solution i
    ncluding re-call according to real situation.
