    SCX LED Event Advertising Billboard Fixed Display Outdoor Led Display Screen P10 Outdoor Led Screen P10

    Ask Lasest Price
    Brand Name : SCXK
    Model Number : SMD-P10
    Certification : CE,ROHS,FCC,SASO
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3600 sqm month
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

    SCX LED Event Advertising Billboard Fixed Display Outdoor Led Display Screen P10 Outdoor Led Screen P10

    SCX LED Event Advertising Billboard Fixed Display Outdoor Led Display Screen P10 Outdoor Led Screen P10


    1.Goods be examined before delivery,Professional QC team.
    2.Variety of customized products to satisfy different requests.
    3.Highest cost-effective price.
    4.With pure golden wire connection in LED.
    5.The price depends on the quantity. We can provide you with the best competitive price in the market with the same or even better quality.
    6.All inquiry will be answered within 24 hours by a well-trained and experienced staffs.
    7.Top Quality & Reasonable Price & Responsible After Service.
    8.All private information will be well protected.


    Famous Brands Raw Material Selection
    1)LED: well-known international brand,with wide viewing angle ,little attenuation ,good heat dissipation, and vivid colors.
    2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective
    phenomena, such as dark bright, virtual light and so on.
    3) Power supply: industrial-strength brand.The power maximum power resere of 20% the space , the range of voltage fluctuation is less 5%, high stability.
    4) Connector: Aerial grade brands ensure the stable transmission of power and signal.
    5) PCB Board: adopt 4-layer design.
    6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person.
    The replacement of any cabinet can be done within 50 seconds.

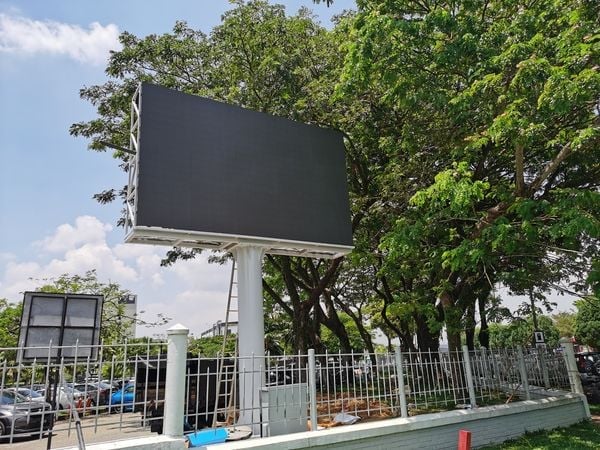

    Our case


    Product Description

    ItemSpecification
    LED
    Parameters
    Luminous IntensityR:620-630, G:520-535, B:465-475
    WavelengthR:400-500mcd, G:1800-2200mcd, B:350-450mcd
    Test ConditionR:25℃,20mA, G:25℃,20mA, B:25℃,20mA
    LED ModuleLed TypeSMD 3 IN 1
    Pixel Pitch10 mm
    LED Shape & Size3mm SMD 3535
    Encapsulation Type1R1G1B
    Module Dimension320mmx160mm
    Module Resolution32 ×16
    Module Weight0.20 KG
    Pixel Density10000
    Driving Mode1/4
    Module Power Consumption20 W
    LED CabinetCabinet Size960mm(W)x 960mm(H)
    Cabinet Thickness140 mm
    Cabinet Resolution96x96
    Cabinet MaterialDie Casting Aluminum Cabinet
    ScreenUseFixed
    Cabinet Weight30 KG
    Optical parametersBrightness≥6500 cd
    Contrast Ratio≥3000:1
    Single-point Brightness CorrectionAvailable
    Single-point Color CorrectionAvailable
    Surface EvennessGAP< 1mm
    Color Temperature Condition3500K~9500K,(can be adjustable)
    Viewing angle140°(Horizontal),140°(Vertical)
    Gray Scale16 bit
    Minimum Viewing Distance10 m
    Brightness Adjustment0-100% 8 levels
    Power
    Supply
    Operation PowerAC90-260V 50-60HZ
    Max Power Consumption800 W /m²
    Average Power Consumption350 W /m²
    Control
    System
    Control ModeSynchronous Control by Linsn system
    Frame Update Frequency≥1920Hz
    Screen Refresh Frequency≥38400Hz
    Gamma Correction(-0.5—5.0)
    Input Signal SupportComposite,S-Video,Component,
    VGA,DVI,HDMI,SDI,HD_SDI
    Control DistanceUTP CAT5E:100m;Multi-mode Fiber:500m;
    Single-mode Fiber:10km
    Video SignalMPG /MPEG/MPV/MPA/
    AVI/SWF/RM/RA/RMJ/ASF
    Support VGA Mode800 x 600, 1024 x 768,
    1280 x 1024, 1600 x 1200,
    Brightness CorrectionDot by Dot,module by module,
    cabinet by cabinet
    Operating Temp.- 10° —+55° Celcius degree
    Operating Humidity10 - 90 % RH
    Operating Life100,000 Hours
    Protection LevelIP65
    MTBF5000 Hours
    Out of Control Pixel Rate0.01%

    FAQ

    Q1: Where is your nearest Sea Port?
    A: Our nearest sea port is at shenzhen,guangdong Provice
    Q2: What's the brand of your diode chip?
    A: Our led lamps are by Sanan,Kinglight,Silan,Epistar, Nation Star ,Cree etc.
    Q3. Can I order a sample for led display screen?
    A: Yes, we warmly welcome you to order a sample to test and check quality. You can choose any item what you want.
    Q4. How do you ship the goods and how long does it take to arrive?
    A: For large quantity,you can choose sea freight.For small order,you can ship by DHL, UPS, FedEx or TNT.Of course,you also can choose it by airline. It usually takes 3-7 days to arrive by express.
    Q5. Is it OK to print our logo on led screen product?
    A: Yes,we can print your logo according your request.
    Q6: How to deal with the faulty?
    A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.002%.
    Secondly, during the guarantee period, we will send new parts with new order for small quantity.
    If the screen has serious damaged ( e.g. The whole cabinet couldn’t work normally) caused by human, we would mend it with charge based on the cost .
