SCX LED Rental advertising indoor video wall price list led screen
p2 led billboard display
Application :
Dispatching Center, Control Command Center, Monitoring Center,
Conference Video Center, Information Center,Demonstration Center,
Studio Center and so on
Thin and Light Cabinet:
Simple , ultra thin and light design ,easy to install and transport
fanless, zero noise, low power consumption, automatic heat
dissipation
High Definition and Exquisite Image:
Small-pitch series obtain high contrast and high gray scale, It can
realize the HD and exquisite image
Supporting point-to-point correction, to ensure the color and
brightness consistency
Exquisite color, clear and natural image with excellent RGB gray
scale processing
Seamless and precise Connection:
Seamless connection with high flatness and soft image
Accurate and flexible installation, Buckle design for the sides to
realize quick installation and disassembling
Professional and standard aviation plug with high quality guarantee
Low Consumption Energy Saving:
4.2V voltage design, low power consumption, energy saving ,green
and environmental protection.
♦ Product specification
| indoor SMD P2 |
| Lamp size | 2121 |
| Resolution/mm | 2 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 250000/m² |
| Module resolution | 128x64 |
| Module size/mm | 256x128 |
| View distance | ≥1m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >2500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/13 |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1100W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

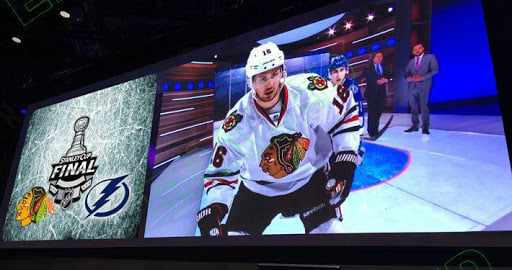

Our Case
♦ About us:
Established in 2005, clients cover more than 50 cuntries, Mainly
USA, Europe, dubai, north and mid america, south america, asia. As
a high-tech enterprise integrated with scientific research, design,
production, maintenance, sales and system integration, we have a
professional high-quality technical R & D team,rich experienced
engineers and professional product development and design
engineers,excellent marketing team, pre and after-sales 24 hours
service. Even face with harshest environment,we can carefully
choose different suitable materials and make the best offer.
Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
FAQ
Q1. Can I have a sample order?
A: A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days, mass production time needs 12-25 days.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by express (DHL, UPS, FedEx ). It usually takes
3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for led display?
A: Firstly let us know your requirements or application, liking
project size, rental or fixed installation.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the order and places deposit for formal
order.
Fourthly We arrange the finished display cabinet.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
