SCX LED Nationstar gold wire outdoor P10 waterproof Cabinet Fixed
installation video wall Advertising LED display
1. Display: shows the small spacing, viewing distance closer; the country star
gold and copper support high quality surface mount lamp, horizontal
and vertical angle of 130 degrees, light mixing uniformity, color
matching degree is high, good consistency, clearer display true,
fully meet the needs of outdoor display;
2, Energy consumption: a positive response to the national policy of energy saving by
4.5, switching power supply, power consumption can save 10%;
3, Structure: the bottom shell adopts the reinforcing rib design of quasi
construction engineering mechanics, enhance the bearing tensile
ability of products and improve the overall smoothness of the mask;
the calculation precision with stripe design, greatly reducing the
environmental problems due to light reflection on the interference
caused by the lamp light, ensure contrast products in a variety of
ambient light the degree is the best, the whole screen is more
black ink, better contrast, more realistic image color reduction.
4, Circuit: high performance "wig" program for PCB layout design, can
effectively control the voltage peak overshoot, the maximum
extension of the tube, chips and other components of the life; with
power supply, general signal interface, not affected by any
geographical and environment control system and other factors, for
to be able to easily display various types of connection and
installation and operation.
5, Protection: the positive use of special conductive silicone encapsulant, on
the back of three spraying paint protection, double waterproof
protection, making the product more weatherability, heat faster;
the drainage hole of the unique design, reduce the water causes
damage to the module module due to defects of steel structure,
improve the module of self-protection, further to protect the life
of display screen.
6, Use: compared to outdoor full color products, outdoor SMD series
products lighter, for maintenance, assembly, transport and later
brought convenient and time-saving.
♦ Product specification
| Outdoor SMD P10 |
| Lamp size | 3528 |
| Resolution/mm | 10 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 10000/m² |
| Module resolution | 32x16 |
| Module size/mm | 320x160 |
| View distance | ≥8m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >1000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 120(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >1200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <220W |
| Average power:/㎡ | <200W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

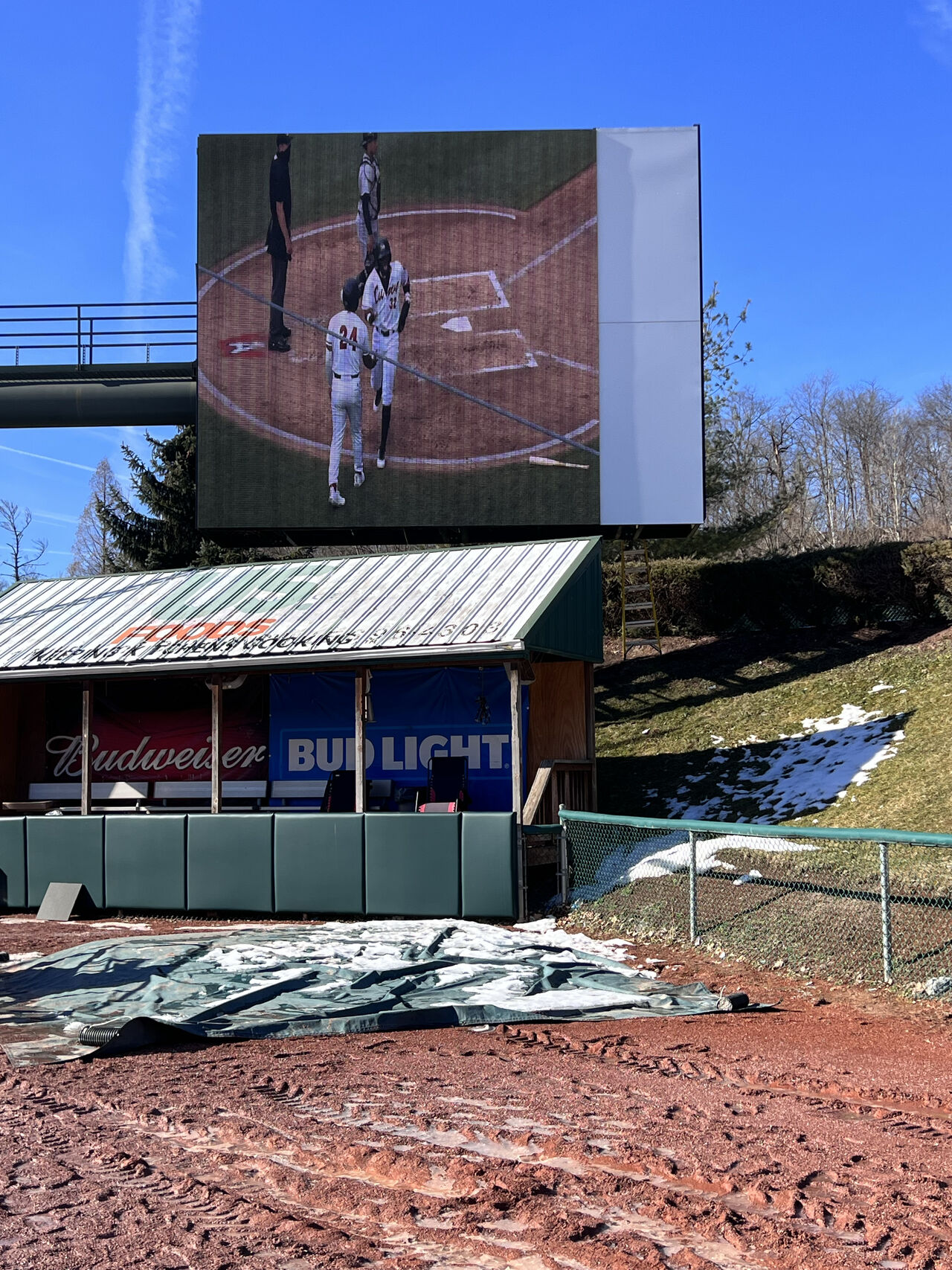

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
FAQ
1,What about the lead time?
A:Within 15 working days after receiving the deposit.
2,Can you provide customized services?
A:Yes,We can design different category of products according to
your demand.
3, Is it OK to print our logo on led screen product?
A:Yes,we can print your logo according your request.
4,Can I order a sample for led display screen?
A:Yes, we warmly welcome you to order a sample to test and check
quality. You can choose any item what you want.
5,Is it OK to print our logo on led screen product?
A:Yes,we can print your logo according your request.
6, Do you offer guarantee for the products?
A:Yes, we offer 2 years warranty to our products.
