♦ Product Description
1. Lightweight. Convenient in transporting and installing & saving
labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person
without tool.
4. Humanized operating interface with breakdown indicator lights,
easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving
the debugging technology for nice image.
♦ Applications
--- Outdoor and indoor advertising, digital billboards, advertising
companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car
dealerships.
--- Architecture and social projects, information systems in
cities.
--- Show-business, concerts, festivals, motor shows and other
public events.
♦ Technical specification
| outdoor SMD P10 |
| Resolution/mm | 10 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 10000/m² |
| Module resolution | 16x16 |
| Module size/mm | 320x160 |
| View distance | 4-250m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >8000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | (1/4) |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/㎡ | <950W |
| Average power:/㎡ | <350W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

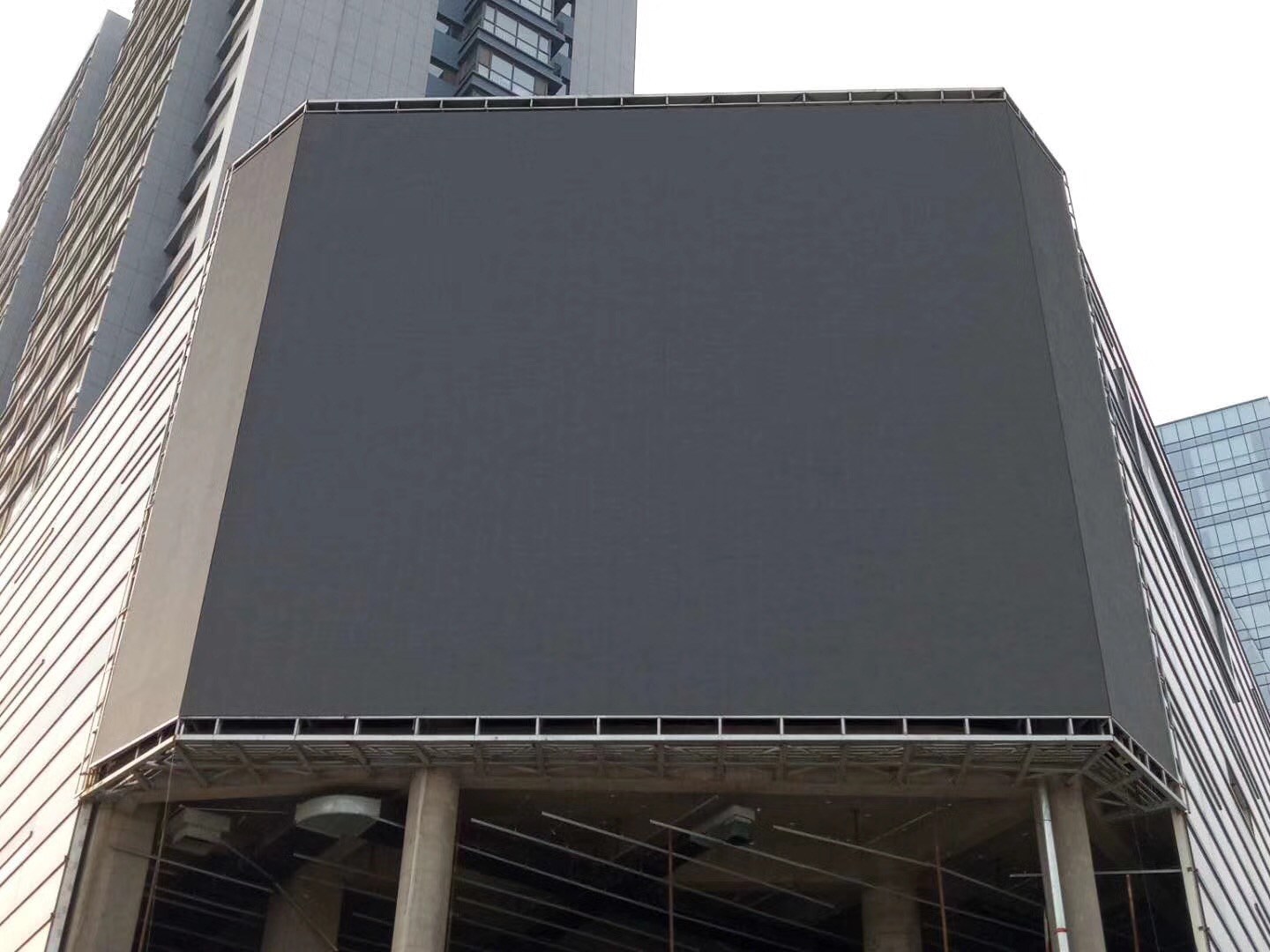

Our case
♦ Production process:
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
FAQ
⭐Q1:Can i oem/odm?
A: OEM/ODM is welcome,we have R&D team,UV printer /laser
machine to meet you need.
⭐Q2:How about the quality of your products?
A:CE ROHS FCC MSDS approval,for more ;ocal certificates,please
contact us for confirmation.
⭐Q3:What is the quality control method in your factory?
A: Quality first. QC department has professional quality assurance,
experts always attach great importance to quality control.Each
product will be tested more than 3 times.
⭐Q4:When will the goods ship?
A: We have enough stock to ship out within 48hours,lead,time by
express is 3-8days,by EMS is 15-35 days.Normally we ship by
Alibaba logistics,it is expensive,but safe,reliable,efficient and
fast,if you need to send by other express,please contact us.
⭐Q5:How to place an order?
A: “Start Order “
“choose the quantity,colors”
“Filling your address”(remember to put your Phone Number&Post
Code )”
Or you could "Send inquiry"to us,we will fast reply within 2 hours
of work time.
⭐Q6:I'd like to visit your latest products and quotations, how can
I get them?
A:Welcome to contact us directly by online messenger, Trademanager
or Whatsapp for latest catalogues. Send us inquiry or direct
email is welcome too.
⭐Q7:Can you accept small orders?
A:Yes, small orders are accepted. Just let us know how many pieces
you need.
⭐Q8:Can you supply me samples?
A:Yes, we can. Welcome to contact us for further information.
⭐Q9:If your product does not arrive within your delivery time,
please let us know.
A: This has never happened in our company, because we have
professional management personnel to comprehensively manage and
control
every link of production, and we also train every employee.
