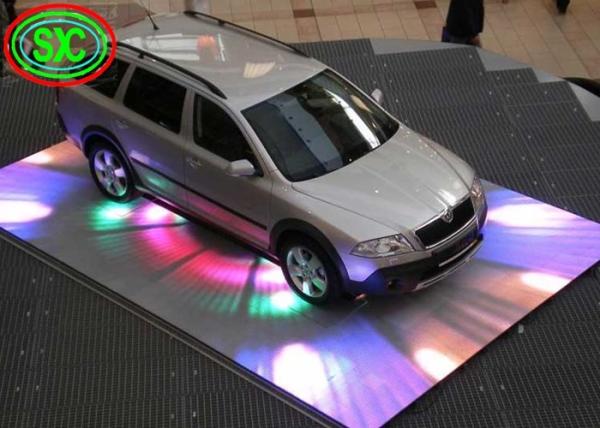

    P4 Indoor Interactive Dance Floor , LED Full Color Screen Long Life Span

    Ask Lasest Price
    Brand Name : SCXK
    Model Number : SMD P4
    Certification : CE/ROHS/FCC/ISO/UL
    Price : negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 5000sqm per month
    Delivery Time : 7-10 working days after receive your payment
    • Product Details
    • Company Profile

    P4 Indoor Interactive Dance Floor , LED Full Color Screen Long Life Span

    P4 Indoor full color front open Stair led display screen advertising led sign


    ♦ Features

    1. Very strong magnet, 6pcs magnet each module.
    2. Front service, very easy to maintenance, install.
    3. Ultra-thin cabinet, the depth with module is about 90mm, saving the transport cost and powerman.
    4. The cabinet size can be customized according to your needs, like 640x160mm, 960x160mm etc.
    5. The cabinet can be different design according to different project.
    6. The control system can be synchronous, asynchronous; Novastar, Linsn,Sheenled, Xixun etc.
    7. We can offer you the CAD drawing according to your requests.


    ♦ Product specification

    indoor SMD P4
    Lamp size2020
    Resolution/mm4
    Pixel configurationRGB 3 in 1
    Pixel density/pixels/m²62500/m²
    Module resolution32x32
    Module size/mm128x128
    View distance≥4m
    Single point brightness adjustCan be added
    Single point color adjustCan be added
    White balance brightness>1800cd/㎡
    Color temperature6500K-9500K
    Horizontal view angle120(degrees)
    Vertical view angle120(degrees)
    Signal Process bit10 or 14 bit
    Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distancesInternet cable:100m, multimembrane:500m, monofilm:5km
    Driving modeConstant driving current
    Scanning mode1/16
    Frame rate60Hz
    Refresh frequency>1200Hz
    Control modeComputer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted
    255 steps. No grey loss

    Out of control point<1/10000
    Working hours≥72hours
    Mean Time Between Failure>5000hours
    Life time100000hours
    Life-all-white(brightness halving)50000hours
    Environment temperature rangeOperating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡<1100W
    Average power:/㎡<280W
    Self-check technology

    LED spot self-check, communications check, power check,
    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,
    send out warning signs to the operators.(need customization)

    Software environmentWindowsNT,Windows1999,WindowsXP
    Luminous point width between centresDeviation<3%
    Brightness uniformity<10%
    Color uniformity(chromaticity coordinate)±0.003
    Power supply requestAC85-264V(50Hz-60Hz)
    Contrast(1000:1)
    System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working)working:10-95%
    Humidity(storing)storing:10-95%




    ♦ Production process:
    1) Incoming Inspection→2) SMD→3) Plug-in
    →4) Wave Soldering→5) After Welding→6) Testing
    →7) Semi Finished Aging→8) Module Assembly
    →9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

    ♦ Packaging and shipping
    Wooden case or flight case package are available.
    Shipping by sea,air or DHL,multiple shipping ways for your choice.

    ♦ Why choose us:
    Continues Quality
    With more than 10 years experience in led display producing,equipments are updated regularly.What’s
    more,unique standardized and module production ensure our products continuous quality.

    Competitive Price
    With large scale production capacity and professional production technology,our company have built
    effective modular production.We always stick to promote the technical innovation and reduce cost to
    benefit customers.

    Fast Delivery
    Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
    inventory will be used to maintain your uninterrupted supply of the products.

    Our team will be forever here to offer you full supports !!!
