Advertising video outdoor fixed LED display billboard waterproof
♦ Remote network intelligent control system:
control of several city remote synchronization or time display,
change at any time you want to broadcast content. Only a mouseclick
operation can be easily replaced the picture information, so as to
realize the display advertising networkcluster. Multi function card
to achieve timing or manualswitch screen at any time, to realize
unattended function.
♦ Scope of application:
widely used in the Outdoor environment , such as The building wall
, Stadium, Supermarket,Outdoor advertising etc., to display text ,
graphic, picture and video etc.
♦ Product specification
| outdoor SMD P6 |
| Resolution/mm | 6 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 27778/m² |
| Module resolution | 32*32 |
| Module size/mm | 192x192 |
| View distance | 5-400m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >8000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | (1/4) |
| Frame rate | 60Hz |
| Refresh frequency | >3500Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/㎡ | <900W |
| Average power:/㎡ | <350W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
| Product overviews |
| Items | Indoor Led display:
P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Dance floor led display
DJ led screen
Transparent led display |
| Material | steel,aluminum ,die casting aluminum |
| Certificates | CE, FCC,RoHS, CCC, UL |
Payment
terms | 30% deposit before production, 70% balance before shipping |
| T/T |
| Western Union |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; |
| Anti-shaking wooden case |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage) |
| Using Range | Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on. |
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Description:
•With sensitive control system, it can adjust screen brightness
automatically according to the lighting change of indoor and
outdoor, saving energy to reduce your operating costs greatly.
•High refresh rate and high gray make the picture more realistic,
which meets the demand of high visual quality of commercial usage.
•The advertising contents can be changed at any time, for different
customers and various advertisements.
•you can know the display operation anytime, anywhere.
• it can turn on and turn off the screen by software timing or
manually at any time, achieving unattended function.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality
goods.

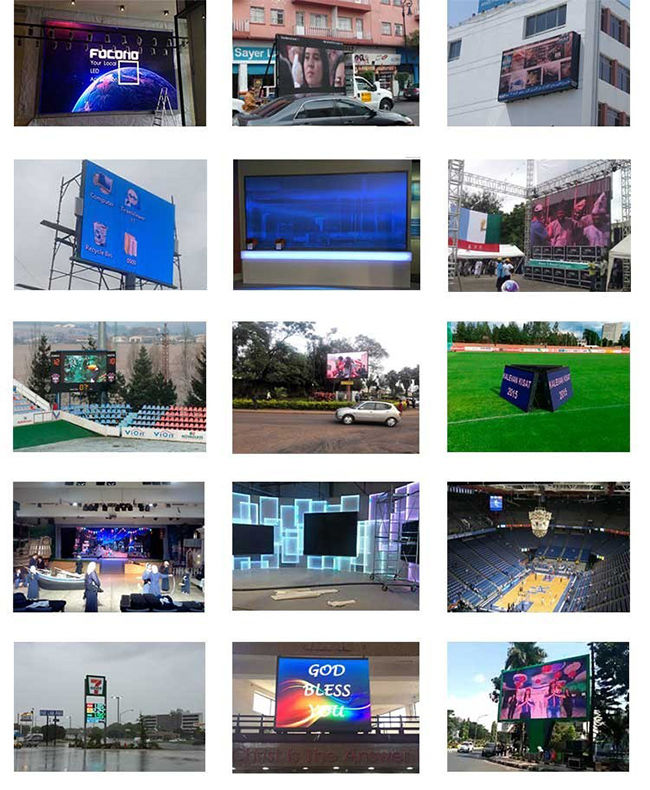

♦ Project case
Our team will be forever here to offer you full supports
