    High Refresh Rate 3840Hz P10 LED Wall Video Processor Outdoor LED Large Screen Display Fixed Installation LED RGB Displa

    Ask Lasest Price
    Brand Name : SCXK
    Model Number : SMD P10
    Certification : CB/CE/ROHS/FCC/ISO/UL
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5200 sqm month
    Delivery Time : 3-12 working days
    • Product Details
    • Company Profile

    High Refresh Rate 3840Hz P10 LED Wall Video Processor Outdoor LED Large Screen Display Fixed Installation LED RGB Displa

    High Refresh Rate 3840Hz P10 LED Wall Video Processor Outdoor LED Large Screen Display Fixed Installation LED RGB Display

    Easy Installation & Using:

    Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen system.


    Convenient Servicing:

    Front or rear cabinet access make the maintains work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.


    ♦ Product specification

    outdoor SMD P10
    Resolution/mm10
    Pixel configuration1R1G1B
    Pixel density/pixels/m²10000/m²
    Module resolution32x16
    Module size/mm320x160
    View distance5-400m
    Single point brightness adjustCan be added
    Single point color adjustCan be added
    White balance brightness>8000cd/㎡
    Color temperature6500K-9500K
    Horizontal view angle120(degrees)
    Vertical view angle60(degrees)
    Signal Process bit10 or 16bit
    Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distancesInternet cable:100m, multimembrane:500m, monofilm:2km
    Driving modeConstant driving current
    Scanning mode(1/8)
    Frame rate60Hz
    Refresh frequency>3000Hz
    Control modeComputer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point<1/10000
    Working hours≥72hours
    Mean Time Between Failure>5000hours
    Life time100000hours
    Life-all-white(brightness halving)50000hours
    Environment temperature rangeOperating temperature range: -20-45℃
    Maximum power:/㎡<900W
    Average power:/㎡<300W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environmentWindowsNT,Windows1999,WindowsXP
    Luminous point width between centresDeviation<3%
    Brightness uniformity<10%
    Color uniformity(chromaticity coordinate)±0.003
    Power supply requestAC85-264V(50Hz-60Hz)
    Contrast(1000:1)
    System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working)working:10-95%
    Humidity(storing)storing:10-95%

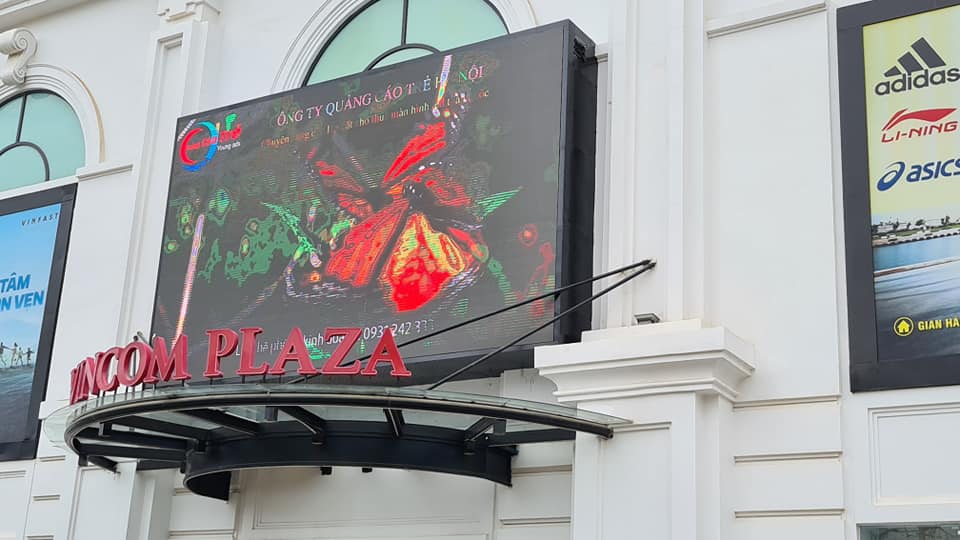

    Our case


    ♦ Production process:


    1) Incoming Inspection→2) SMD→3) Plug-in

    →4) Wave Soldering→5) After Welding→6) Testing

    →7) Semi Finished Aging→8) Module Assembly

    →9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing


    ♦ Packaging and shipping

    Wooden case or flight case package are available.

    Shipping by sea,air or DHL,multiple shipping ways for your choice.


    We have an excellent customer service system with a well-trained, strong and skilled service team to provide customers with a comprehensive pre-sales service, product services and after-sales service.
    Our customer service department has more than a dozen highly skilled and experienced technical support engineers, who are all in charge of the technical support of all LED display products we provide all over the world.
    We are continuously improving upon our level of service and quality to quickly and effectively meet customer needs and guarantee their benefits and interests.
    Service Concept
    We believe in taking the initiative, maintaining honesty and trustworthiness, which means we will respond quickly to customer questions and do everything possible to meet customer demands.

    FAQ

    Q1. What is the MOQ? A: 1pc panel, but we suggest to get a bigger video wall to check better visual experience.
    Q2: How to control the LED display? A: We use Novastar/Colorlight control system, supports WIFI/LAN/USB/4G wireless control.
    Q3: Can you provide installation structures? A: Yes, we can provide installation structures for wall-mounted, pillar-mounted.
    Q4. Do you test all your goods before delivery? A: Yes, we have 100% test for 72hrs before delivery.
    Q5: How long is your warranty? A: 5 years, we will be responsible for free repairment or replacement for defective parts.
    Q6: What will you do if we have problems related to installation, configuration and use? A: Our after-sale service team will solve all the problems, until the screen can work normally.
    Q7. What is your terms of payment? A: 50% as deposit, 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
    Q8. What is your terms of delivery? A: EXW, FOB, CIF, CFR, DDP, DDU, customer specified freight forwarder or negotiable mode of transport.
    Q9. What is your delivery time? A: Generally 15-20 days after receiving the deposit. The specific delivery time depends on the quantity of the order.
