High quality Outdoor p6192*192mm full color fixed installation HD
led display waterproof cabinet advertising led screen
1.Free warranty period
(1)Display free warranty period is start from the date of
acceptance of the goods,during warranty period 1 year,free repair
on site.Module free warranty period is 2 years.
(2)In general,It will module have problems.We can send the spare m0dules for free.When the display have problems,it can replace at the
first time to return normal.Bad modules can send back to factory
for repairing.
2.Fault and technical support response time
(1)Service hotline time:24 hours/day,7days/week.
(2)Service after sales contact number:400-999-8908
(3)After our related workers got the phone about fault display,we
will arrange the nearest technical to repair as soon as possible.
3.Outdoor display attentions
(1)Display or the combination part between display and building
must be waterproof and Leak proof.Display should have good drainage
measures.Once have pounding can be discharged smoothly.
(2)Install the lightning protection device on the display or
building.Display main part and outer shell should keep good ground
connection.Ground connection resistance shall less than 3 to make
the heavy current discharge casused by lightning in time.
(3)Install the ventilation facilities to cool down to make the
display inside temperature at -10℃ to -40℃,and also install axial
flow fan at the above of display backside to release heat.
(4)Choice the Industrial grade integrated circuit chip which can
work at temperature -40℃ to 80℃,To prevent the temperature is too
low so that the display can not work in winter.
(5)In order to ensure that the environment in the case of strong
light can be visible must choice the gihg brightness LED.
(6) The outer package of the display medium is the most popular
square cylinder with belt covering,silicone seal,non metallization
assemblimg.Its appearance is delicate and beautiful,strong and
durable, with the features to protect direct sunlight,dustproof,
waterproof ,anti high temperature,protect short circuit.
(7)Common error analysis
(8)Daily use attentions
A.When use LED display,open PC first,then connect the led display
power supply.
B.Turn off the LED display,turn off the led display power supply
first,then turn off the PC.
C.The PC must be personal care,set do not change.
♦ Product specification
| outdoor SMD P6 |
| Resolution/mm | 6 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 27778/m² |
| Module resolution | 32*32 |
| Module size/mm | 192x192 |
| View distance | 5-400m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >8000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | (1/4) |
| Frame rate | 60Hz |
| Refresh frequency | >3500Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/㎡ | <900W |
| Average power:/㎡ | <350W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
| Product overviews |
| Items | Indoor Led display:
P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Dance floor led display
DJ led screen
Transparent led display |
| Material | steel,aluminum ,die casting aluminum |
| Certificates | CE, FCC,RoHS, CCC, UL |
Payment
terms | 30% deposit before production, 70% balance before shipping |
| T/T |
| Western Union |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; |
| Anti-shaking wooden case |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage) |
| Using Range | Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on. |

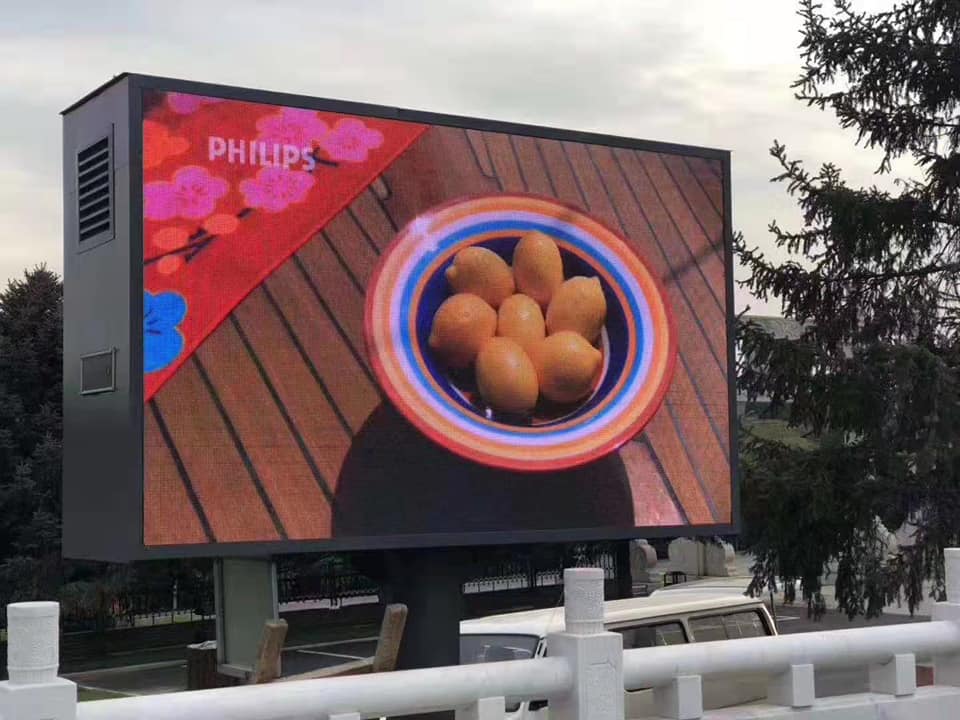

Our case
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Description:
•With sensitive control system, it can adjust screen brightness
automatically according to the lighting change of indoor and
outdoor, saving energy to reduce your operating costs greatly.
•High refresh rate and high gray make the picture more realistic,
which meets the demand of high visual quality of commercial usage.
•The advertising contents can be changed at any time, for different
customers and various advertisements.
•you can know the display operation anytime, anywhere.
• it can turn on and turn off the screen by software timing or
manually at any time, achieving unattended function.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality
goods.
FAQ
Q: What is your terms of payment ?
A: Payment<=10,000USD, 100% in advance. Payment>=10,000USD,
T/T 30% before production ,70% balance before shippment. If you
have another question, pls feel free to contact us.
Q. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q. Can I order a sample for led display screen?
A: Yes, we warmly welcome you to order a sample to test and check
quality. You can choose any item what you want.
Q. How do you ship the goods and how long does it take to arrive?
A: For large quantity, you can choose sea freight. For small order,
you can ship by DHL, UPS, FedEx or TNT. Of course, you also can
choose it by air. It usually takes 3-7 days to arrive by express.
