GOB led display HD P2 Indoor Rental Led Screen SMD Stage Display
Led For Concert Video Wall
HD Custom Size Advertising Modular Led Screen P2 Led Indoor Display
Features
1) Die casting aluminum cabinet, super light and thin, reducing the
shipping cost.
2) Easy to install, effectively saving the time.
3) High refresh rate, it can be adjusted to 3840hz, bring a better
visual experience to you.
4) Larger viewing angle to 140° at horizontal line, 140 degree at vertical line.
5) No mosaic or ghost, display the exquisite and sharp picture.
♦ Product specification
| indoor SMD P2 |
| Lamp size | 2121 |
| Resolution/mm | 2 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 250000/m² |
| Module resolution | 128x64 |
| Module size/mm | 256x128 |
| View distance | ≥1m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >2500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/13 |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1100W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

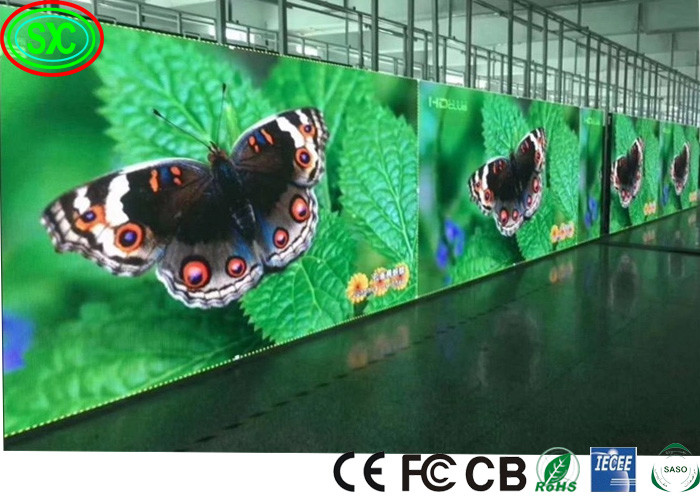

Our case
Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Service
1. After-sales service:
1) Service principles: response in time, solve problems as soon as
possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen
body, free of all maintenance charges; After Maintenance period,
only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be
solved, please contact with our company, we can response in 24
hours. In order to shorten the maintenance time, Our Company will
deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible
for the equipment.
2. Pre-sales service:
1) Our company can arrange professionals to conduct site
installation and debugging in strict accordance with the
requirements of the schemes and the original manual. If there is
any special requirement, it is necessary to make changes of part
installation scheme, we will coordinate with users. Our company can
ensure the consistence of completion time and contracted time. Any
problems caused by natural factors or man-made, we will discuss
with client to find solutions.
2) Our company can train the users based on the manual. The
training include system use, system maintenance and equipment
protection.
FAQ
Q1. Can you assign engineer to our site to guide the installation
if we require?
A1:Yes. We have qualified and experienced engineers who are ready
to service for you.
Q2: Where is it used for?
A2: Indoor & rental use. Widely used for backdrop of staging event,
rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar controlling
system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar.
Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil
offer the suitable solution for your project size. I will
appreciate it if any drawing files about installation offered.
