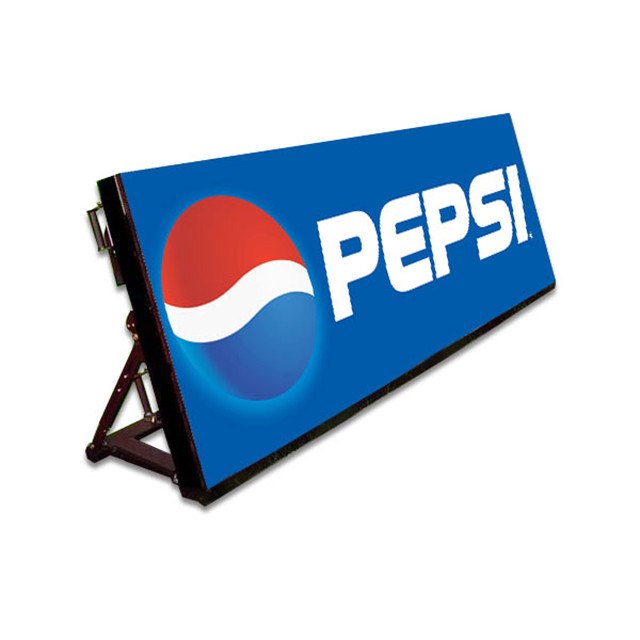

SCX Outdoor Led Display Panels P8 P10 Football Basketball Stadium
Perimeter Advertising Led Screen
P8/P10 outdoor led screen adopts physical and virtual pixel
technology which makes the picture more clear and vivid, no flicker
and blind dots. The screen is manufactured in a waterproof and
dustproof design so it can work very well in rain and sunshine. It
can be assembled and disassembled very easy, and it is an ideal
product for any kind advertisements.
It characterized by perfect vivid image, super brightness, high
refresh rate, long life span and stable work, and waterproof, etc.
It is widely used in advertising, sports, industrial enterprise,
transportation, stations, terminals, airports, construction,
education system and other public places.
Main advantages:
1. New mask design makes LED light almost zero reflection, which
ensures the screen displaying effect;
2. The cabinet of unit modules adopts to high-temperature spraying
technology, the antirust function is greatly improved;
3. Module surface flatness ± 0.2mm, the entire screen has good
flatness;
4.High uniformity display color;
5. For improving the service life, PCB is made by wave soldering
process with the green oxygen isolation layer, which prevents the
line of moisture and oxidation.
6. Service efficiency of the screen switch power supply is
increased substantially, which reduces power failure rate;
7. Using fishbone bus line greatly reduces the contact problem;
8. IP65 grade for high performance waterproof and dustproof
capability;
9. -25°C – 65°Cworking environment for outdoor display, adapted to
the harsh environment.
♦ Technical specification
| outdoor SMD P8 |
| Resolution/mm | 8 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 15625/m² |
| Module resolution | 32x16 |
| Module size/mm | 256x128 |
| View distance | 7-500m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >8000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | (1/4) |
| Frame rate | 60Hz |
| Refresh frequency | >4200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/㎡ | <950W |
| Average power:/㎡ | <350W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Cabinet details
Eachinled has a perfect service system, including pre-sale service,
in-sale service and after-sale service. To provide high quality
service for our customers, we train every salesman with necessary
product maintenance knowledge and organized a Technology Supporting
Department with a group of excellent and professional engineers.
Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's
requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting
and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions,
squares and so on.
♦ Applications
FAQ
Excellent Quality
Our field-tested LED panel is a self-contained, modular unit made
of aluminum alloy to provide superior heat dissipation, durability,
and a longer lifespan. This unique product meets strict quality
control and is backed by a three year warranty.
Weather Resistant
Our fanless IP65 integrated design allows for a dust-proof cabinet
and provides superior resistance to water during harsh weather
events. The die-casting aluminum housing and framing eliminates
rust stains and offers excellent corrosion resistance.
Energy Efficient
Using high-efficiency power supplies and energy-saving IC chips,
our panels are potentially 40% more efficient
while providing an incredibly bright display surface (6,500nits
SMD, 85,00nits RGB).
24/7 Customer
Support With our U.S./Poland/Russia/Malaysia based customer service
center, we can remotely monitor and support our
products dispatching field technicians as needed.
