    gob small led displayHigh resolution super thin display led panel stage background indoor or outdoor advertising screen

    Ask Lasest Price
    Brand Name : SCX
    Model Number : p2.5
    Certification : CB/CE/ROHS/FCC/ISO
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 6500 sqm month
    Delivery Time : 3-12 working days
    • Product Details
    • Company Profile

    gob small led displayHigh resolution super thin display led panel stage background indoor or outdoor advertising screen

    gob small led display P2.5 indoor led display panel full color screen board HD led display module smd2121 320*160mm 128*64 dots


    ♦ Product specification

    indoor SMD P2.5
    Lamp size2121
    Resolution/mm2.5
    Pixel configurationRGB 3 in 1
    Pixel density/pixels/m²160000/m²
    Module resolution64x64
    Module size/mm160*160
    View distance≥0.5m
    Single point brightness adjustCan be added
    Single point color adjustCan be added
    White balance brightness>2500cd/㎡
    Color temperature6500K-9500K
    Horizontal view angle120(degrees)
    Vertical view angle60(degrees)
    Signal Process bit10 or 14 bit
    Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distancesInternet cable:100m, multimembrane:500m, monofilm:5km
    Driving modeConstant driving current
    Scanning mode1/16
    Frame rate60Hz
    Refresh frequency>4200Hz
    Control modeComputer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point<1/10000
    Working hours≥72hours
    Mean Time Between Failure>5000hours
    Life time100000hours
    Life-all-white(brightness halving)50000hours
    Environment temperature rangeOperating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡<1000W
    Average power:/㎡<280W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environmentWindowsNT,Windows1999,WindowsXP
    Luminous point width between centresDeviation<3%
    Brightness uniformity<10%
    Color uniformity(chromaticity coordinate)±0.003
    Power supply requestAC85-264V(50Hz-60Hz)
    Contrast(1000:1)
    System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working)working:10-95%
    Humidity(storing)storing:10-95%

    Product Overviews

    ItemsIndoor Led display:
    p1.5, P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
    Outdoor Led display:
    P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
    Materialsteel,aluminum ,die casting aluminum
    Payment
    terms
    30% deposit before production, 70% balance before shipping
    T/T
    Western Union
    Packing:Standard Export Carton with fully Polyfoam or Pearl Wool
    Flight case;
    Anti-shaking wooden case
    Shipping:5 to 7 working days upon receiving deposit payment
    After-Sales-Service:Lifetime with professional engineer support for free.
    Within 5 year, supply spare parts for free if has quality problem
    ( not by man-made damage)
    Using RangeShopping mall,bank,bus station, train station,
    center of downtown, airport, school, factory, bus, taxi,and so on.

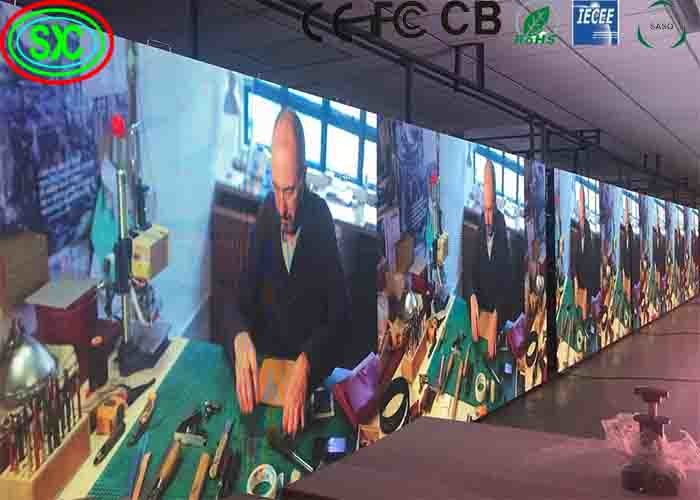

    Case

    gob small led displayHigh resolution super thin display led panel stage background indoor or outdoor advertising screengob small led displayHigh resolution super thin display led panel stage background indoor or outdoor advertising screengob small led displayHigh resolution super thin display led panel stage background indoor or outdoor advertising screen


    ♦ Production process:

    1) Incoming Inspection→2) SMD→3) Plug-in

    →4) Wave Soldering→5) After Welding→6) Testing

    →7) Semi Finished Aging→8) Module Assembly

    →9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing


    ♦ Our advantages

    Professional Manufacturer of led display

    1. OEM service,No MOQ

    2. Easy installation,regular items in Stocks

    3. Offering free design drawing as requested.

    4. Remote controlling and adjusting are available.

    5. Wooden case or flight case,you are the boss.


    ♦ Packaging and shipping

    Wooden case or flight case package are available.

    Shipping by sea,air or DHL,multiple shipping ways for your choice.

    service

    Pre-sale service:

    1. Reply enquiries in 24 hours.
    2. Market research and forecast for customer.
    3. Provide unique and professional solutions based on customer's requirement.
    4. Data sheet and samples offer.
    5. Other services, such as special packing design, factory visiting and so on.


    In-sale service:

    1.Tracking report in producing.
    2. Quality test report for every order.
    3. Photos and videos as per customer's requirement.
    4. Free spare parts.


    After-sale service:

    1. Lifetime free maintenance and upgrade.
    2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
    3. Customer satisfaction tracking report.
    4. Free technician training.
    5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
    6. Special service for big project, such as stadium, exhibitions, squares and so on.


    FAQ


    Q1: What is the lead time?
    A: Sample:2-5days; small quantity: 15-20days; large order: 20-25days; according to quantity.

    Q2: Is it all right to make customers’own brand name?
    A: That’s all right to make your own brand name.

    Q3: Is it available for samples?
    A: yes, of course. sample is free, and you may pay freight cost. that would be reasonable.

    Q4:Is there a middle man draining your profit ?
    A:Get rid of them,it’s information age.Factory Directly Supply,Provide good price, high-quality, quick-delivery, best quality
    service.

    Q5:How to place an order?
    1. Sample approval.
    2. Client makes 30% deposit or open LC after receiving our PI.
    3. Client approves our pp sample, and get the testing report if any necessary .
    4. Mass Production.
    5. Arrange shipment.
    6. Supplier arranges necessary documents and sends copy of these documents.
    7. Client effect balance payment.
    8. Supplier sends original documents or telex release the good.
