Advertising Boards Football Stadium P6 SMD HD Video Wall Full Color
Outdoor Fixed Waterproof Giant Led Display Screen
* IP65 Waterproof Weather Rating
A fully rated outdoor product is key to guaranteeing the longevity
of your outdoor advertising led display screen.
* High Brightness Display
The key to a quality outdoor advertising LED screen is variable
brightness for any condition day or night.Traditional advertising
outdoor LED screen has brightness offerings between 6500-7500 Nit.
* Custom Sizing
traditional outdoor advertising LED screen can be manufactured in
multiple different cabinet sizes to best fit your
unique outdoor LED display installation.
* Stable, Reliable Connections
outdoor advertising LED display board utilizes data and power
connections that are 100% water
tight allowing for stable and reliable connections between each
outdoor LED display cabinet.
* Perfect Display Performance
SMD provides wider viewing angles and extremely close viewing dist.
* Widely applied to traffic information distribution of station,
quay and airport, conference, shopping-mall, brand presentation,
TV-station, stage-show, concert and so on.
♦ Product specification
| outdoor SMD P6 |
| Lamp size | 3535 |
| Resolution/mm | 6 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 62500/m² |
| Module resolution | 32x32 |
| Module size/mm | 128x128 |
| View distance | ≥4m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >1800cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 120(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >1200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1100W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

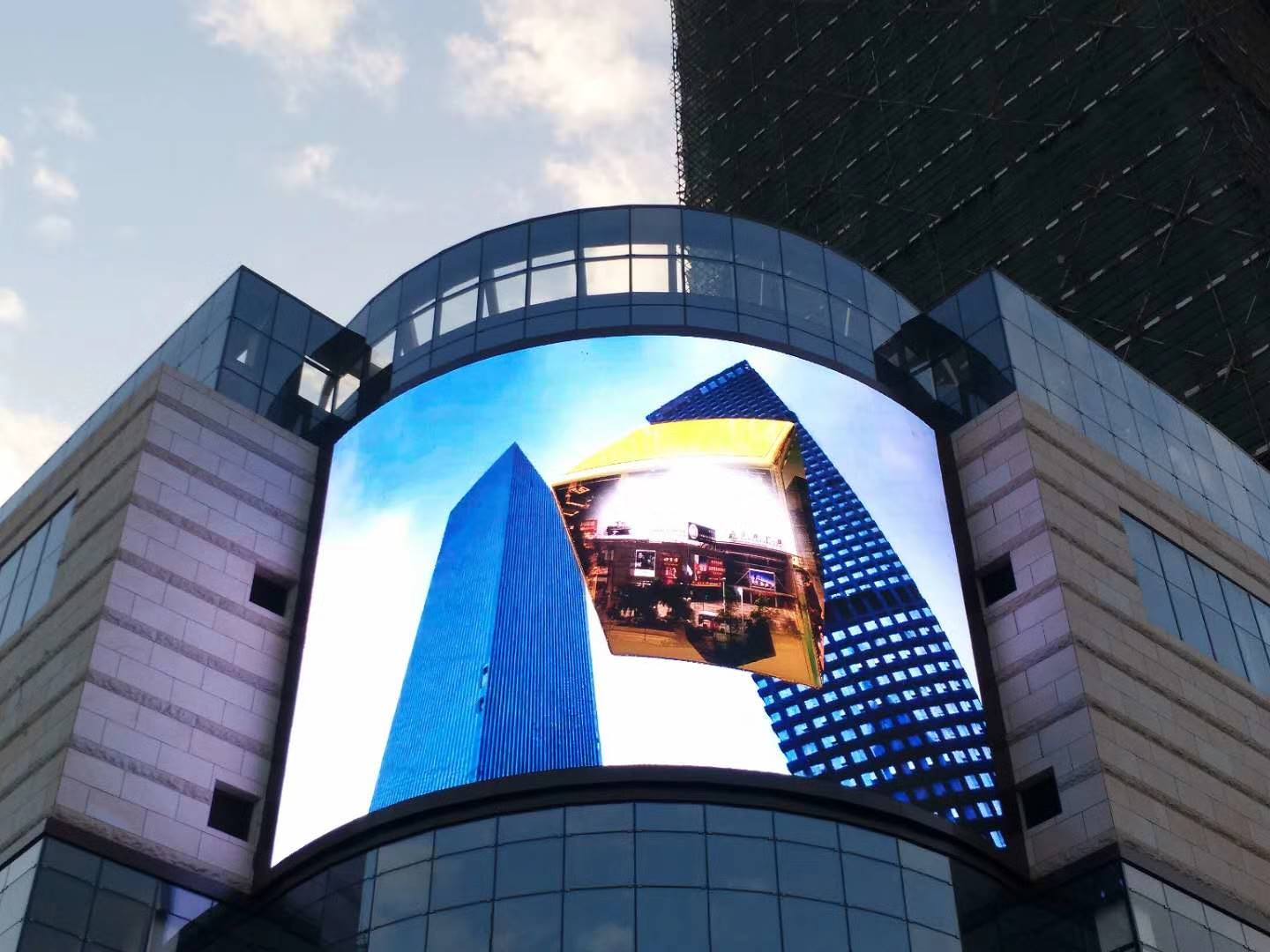

Our case
♦ Quick Detail
1. Super lighter and thinner;
2. Easy to connection and uninstall;
3. It can display,words,texts,graphics and videos.
4. High resolution and high frequency dynamic image.
♦ Applications
LED display can be widely used in
advertising,multi-media,stadium,stage,rental show,transit
directions,etc.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
FAQ
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you
pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2
weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our
customers benefit ;
2. We respect every customer as our friend and we sincerely do
business and make friends with them, no matter where they come
from.
