♦ Product specification
| outdoor SMD P10 |
| Resolution/mm | 10 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 10000/m² |
| Module resolution | 32x16 |
| Module size/mm | 320x160 |
| View distance | 5-400m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >8000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | (1/8) |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/㎡ | <900W |
| Average power:/㎡ | <300W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

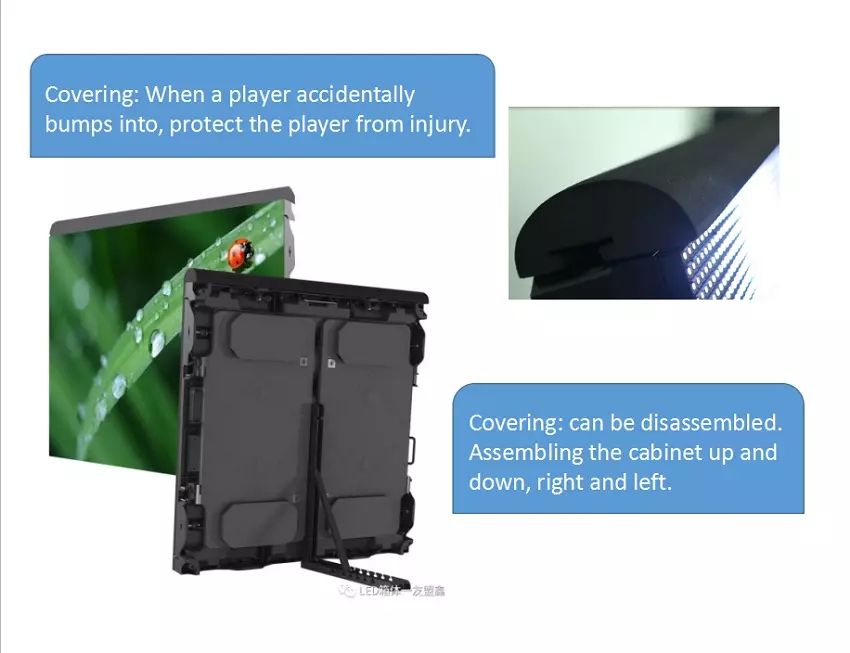

Cabinet details
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Case
Pre-Sales Service
Professional teams as your strong backup
1. We have a professional sales team and an experienced technical
team to follow your projects.
Project Cases for Reference
2. We could provide some videos and photos of similar projects for
your reference.
Professional Proposals for Choosing
3. We will make the high cost-efficiency proposals for your
choosing.
After-Sales Service
Warranty Period
1. We will provide a 3-year warranty and technical support during
the
lifetime of our products.
Warranty Coverage
2. Quality problems occur because of improper production. We will
find
reason by inspection and repair it.
3. Small accessories breakdown during normal using within warranty.
Technical Support
1. 24 hours online technical support.
2. We will adjust the screen for you before delivery and teach you
the
operation method.
3. We could guide you to find out the improper operation or replace
the
broken accessories when problem occurs
FAQ
Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the
photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 15 to 18 days after receiving your
advance payment. The specific delivery time depends on the items
and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our
customers benefit
2. We respect every customer as our friend and we sincerely do
business and make friends with them, no matter where they come
from.
